Murphy PowerView PV780B - Page 10

Section 78 00-02-1019
2018-03-02 - 10 -

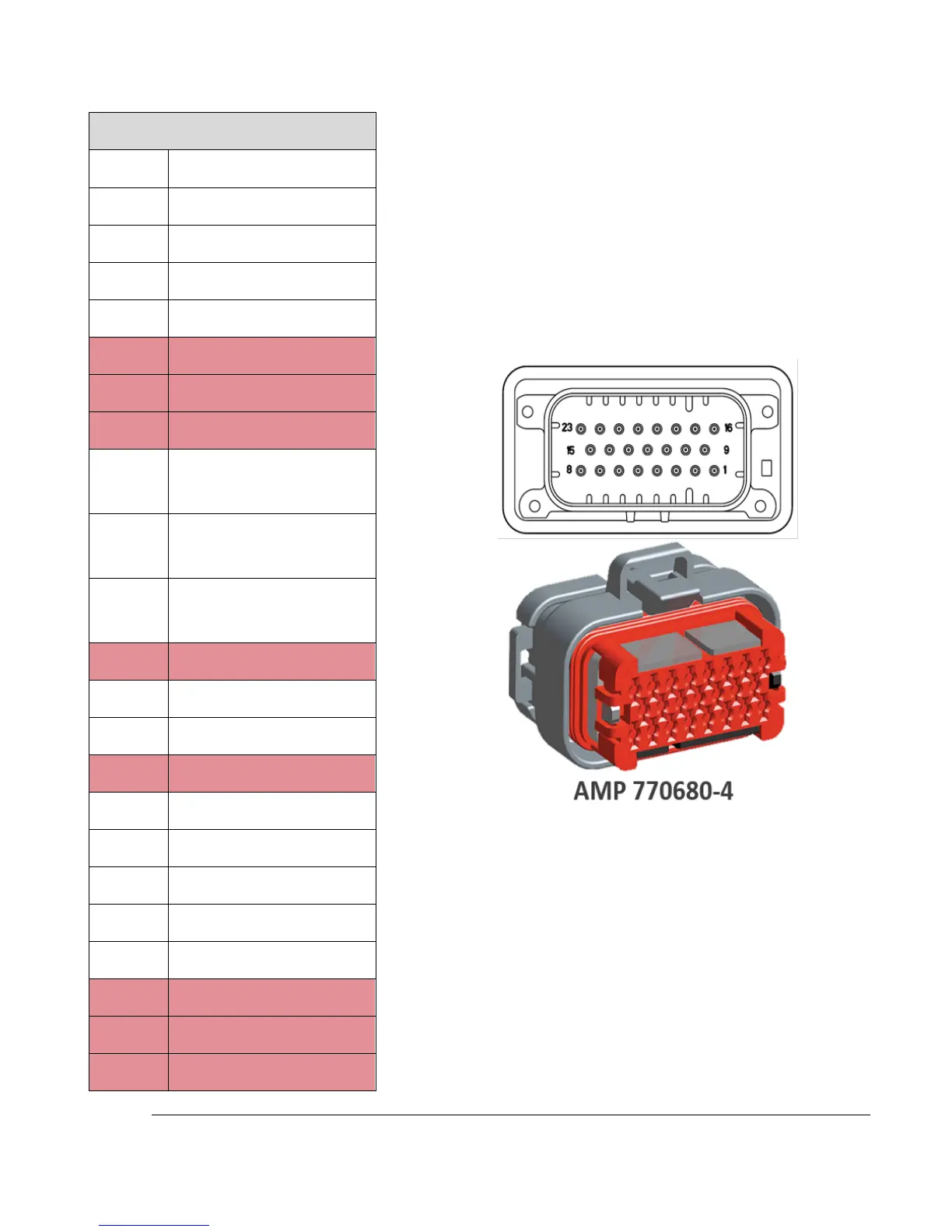

Gray Connector
1
Video Input 1
2
Video Input 2
3
Video Input 3
4
RS-485 High
5
RS-485 Low
6
No Connect
7
No Connect
8
No Connect
9
Video Input 1
Ground
10
Video Input 2
Ground
11
Video Input 3
Ground
12
No Connect
13
Frequency Input
14
Frequency Return
15
No Connect
16
USB D-
17
USB D+
18
USB 5V
19
USB Ground
20
USB Shield
21
No Connect
22
No Connect
23
No Connect
