Murphy PowerView PV780B - Wiring Information; Pin out Specifications

Section 78 00-02-1019
2018-03-02 - 9 -

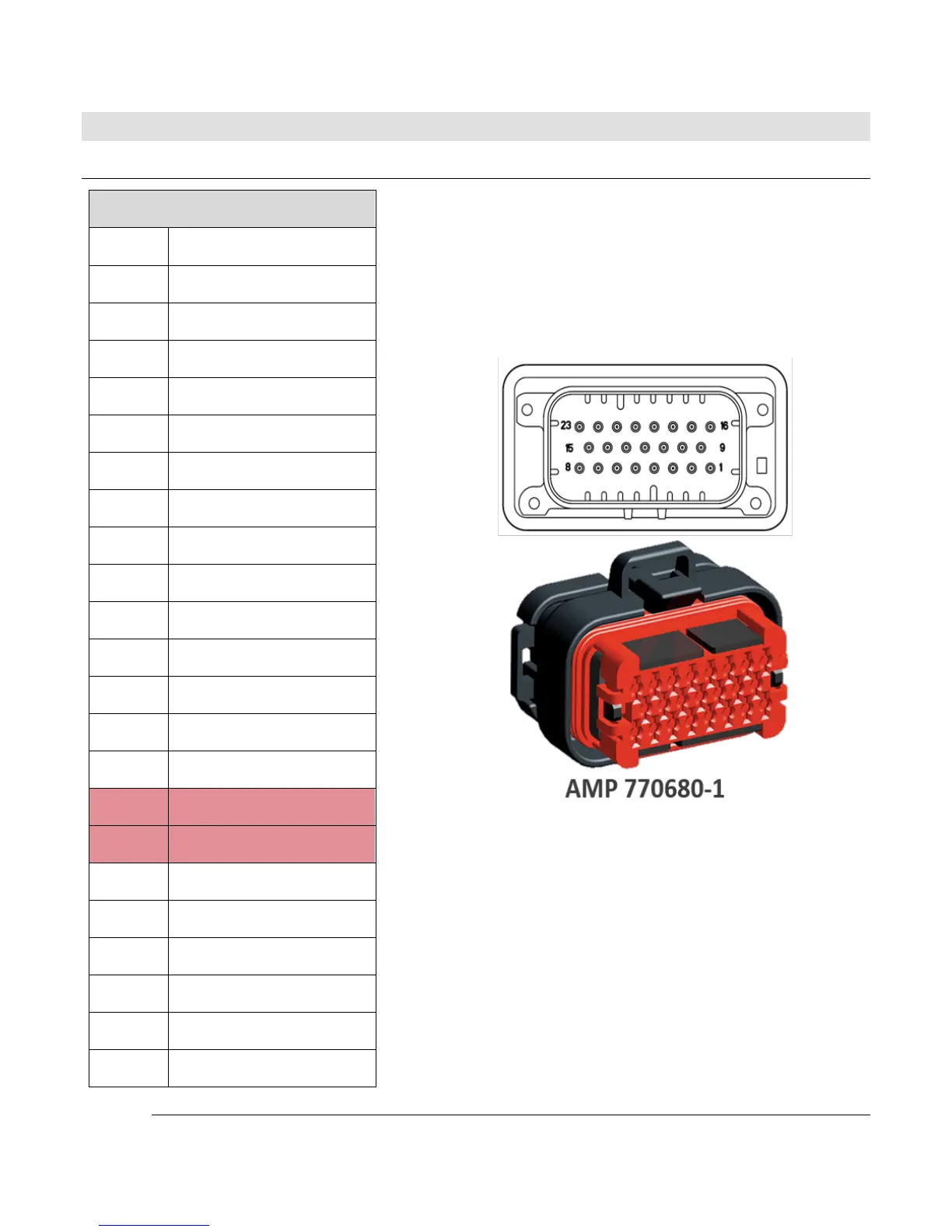

Wiring Information
Pin Out Specifications
Black Connector
1
Digital Input 1
2
Analog Input 3
3
Analog Input 2
4
Analog Input 1
5
CAN1 Low
6
CAN1 High
7
Battery
8
Ground
9
Analog Input 3 Ground
10
Analog Input 2 Ground
11
Analog Input 1 Ground
12
Digital Input 3
13
Digital Input 2
14
Frequency Output 1
15
Ignition Input
16
No Connect
17
No Connect
18
CAN2 Low
19
CAN2 High
20
Digital Input 4
21
Digital Input 5
22
Digital Output
23
Frequency Output 2
