Operating Volts:
6-36 VDC, Reverse polarity protected
Outputs:
(1) 500 mA Switched Low-side
(1) Frequency Output (2Hz – 3KHz)
Inputs:
(3) Analog 0-5 VDC, 4-20mA, Resistive, 10-bit resolution
(5) Discrete digital, active high
(1) Frequency In (2Hz – 10KHz) 5V pk-pk min, 49V pk-pk max

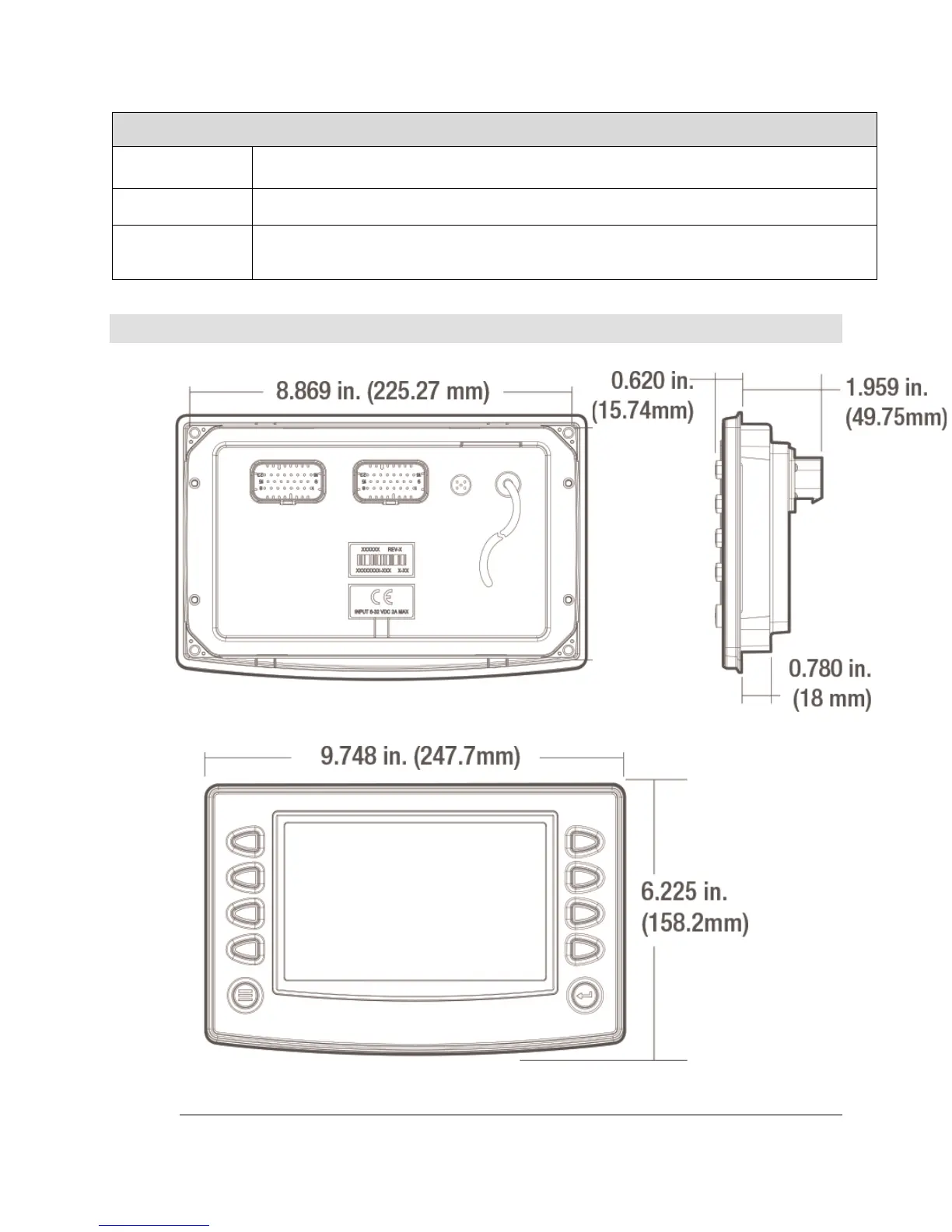

Dimensions
Measurements shown in inches (mm)
