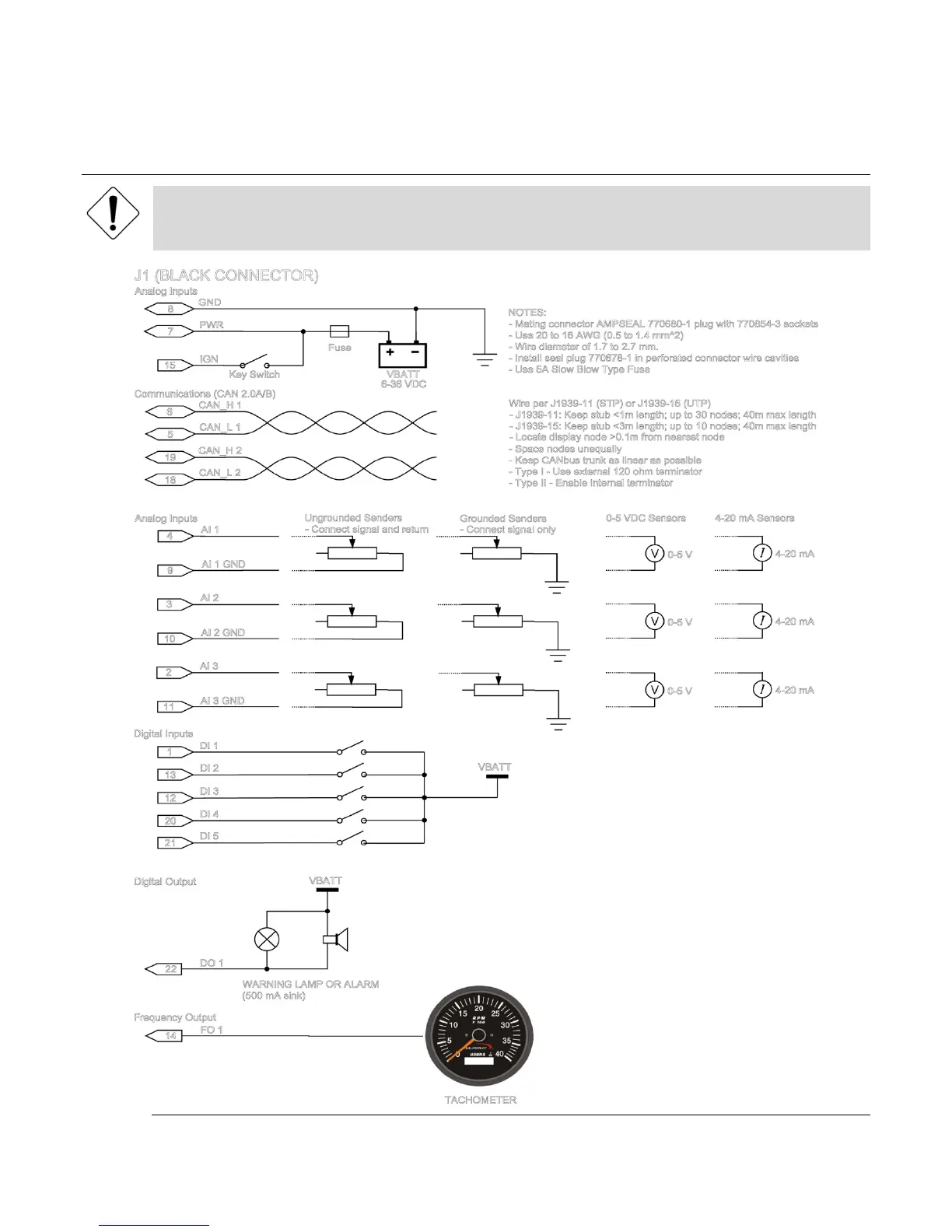

Wiring Schematics – Black Connector
WARNING: Failure to install the unit per the specified wiring diagrams may cause
damage to the unit. DO NOT connect power to the video ground. Warranty is void for
damage caused by incorrect wiring.
