Music Computing CoreMC 2 - 5.1 PCI Reference

CoreMC™ 2 Reference Guide - http://musiccomputing.com/support 11 | P a g e

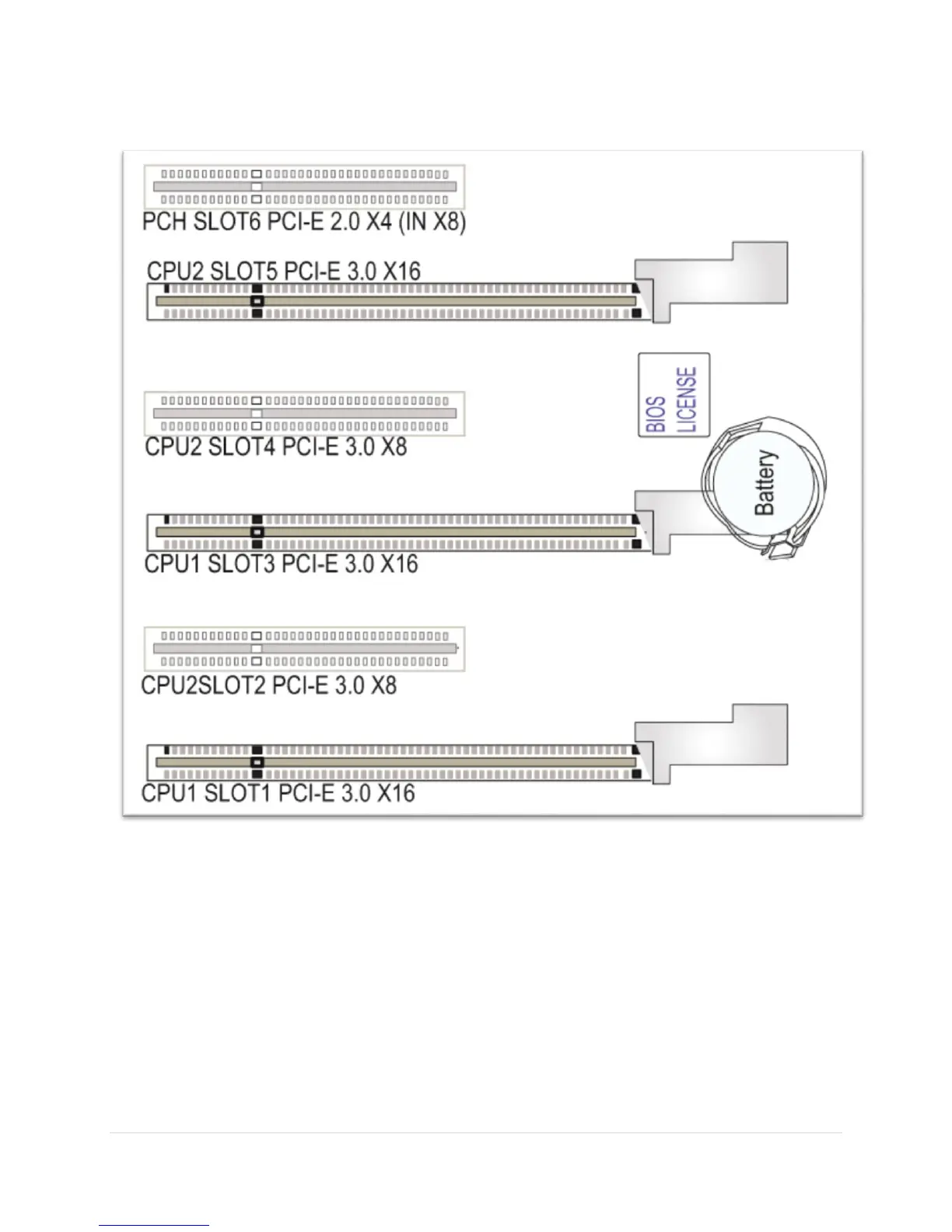

5.1 PCI Reference
 CPU1 Slot1/Slot3 - PCI-E 3.0 x16 Slots (Use with CPU1 only.)
 CPU2 Slot5 - PCI-E 3.0 x16 Slot (This slot is ONLY available when CPU2
is installed.)
 CPU2 Slot2 - PCI-E 3.0 x8 Slot (This slot is ONLY available when CPU2 is
installed.)
 CPU2 Slot4 - PCI-E 3.0 x8 Slot (This slot is ONLY available when CPU2 is
installed.)
 PCH Slot6 - PCI-E 2.0 x4 in x8 Slot (Please Contact Support with any
questions)
