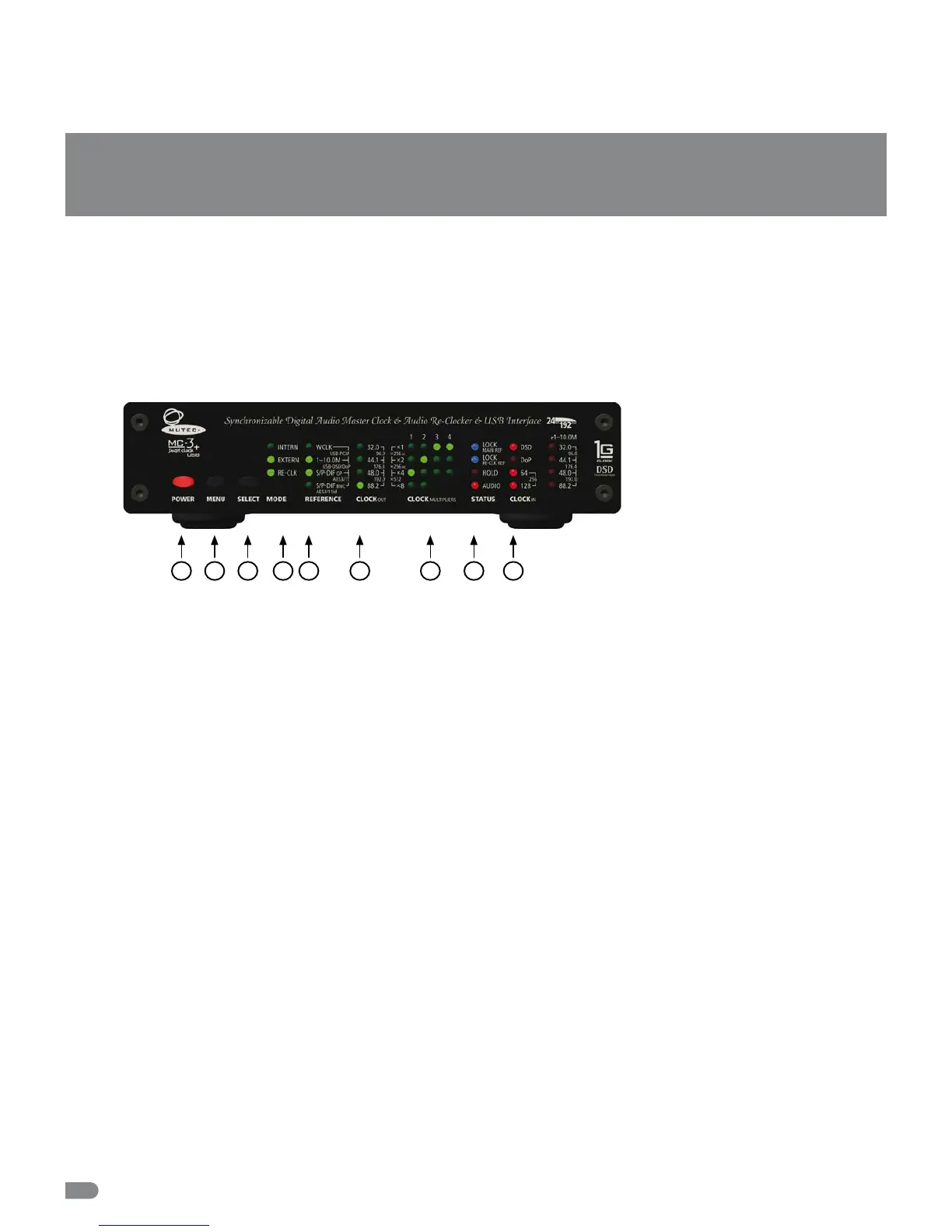

1 »POWER«
This red LED lights up when the unit is switched on with the rear panel power switch.
2 »MENU«
Use this key to access the different menus.
3 »SELECT«
Use this key to select a function within a specific menu.
4 »MODE«
This menu allows to select the clock references for internal and external synchronization as well as the reference for external-
ly-referenced digital audio re-clocking. All three LED rows act in functional dependence.
5 »REFERENCE«
This menu allows to select the clock references for external synchronization and audio re-clocking.
6 »CLOCK
OUT«
Here, the basis clock rate for the Word Clock-, the AES3/11- and the S/P-DIF outputs can be selected, while the MC-3+USB
is running in the »INTERN« mode, or is locked to an external 1–10.0 MHz reference, or when a DSD/DoP conversion to PCM
audio is carried out.
7 »CLOCK
MULTIPLIERS«
This menu lets you determine the factor by which the basis clock rate is multiplied additionally. Settings can be made individu-
ally for every pair of Word Clock outputs (»1–2«) as well as for the AES3 (»4«) and S/P-DIF (»3«) outputs.
8 »STATUS«
This menu indicates various signal status of the incoming reference clock or digital audio signal.
9 »CLOCK
IN«
This menu indicates the clock rates of the incoming clock reference or digital audio signal. DSD/DoP signals received through
the USB interface can be identified with single (
×
64), double (
×
128) or quadruple (
×
256) clock rate.
Information
MUTEC offers optical cables of various lengths that have been specifically tested for the transmission of ADAT™ and S/P-DIF
signals. Ask your local dealer for such cables!
