27
Appendix

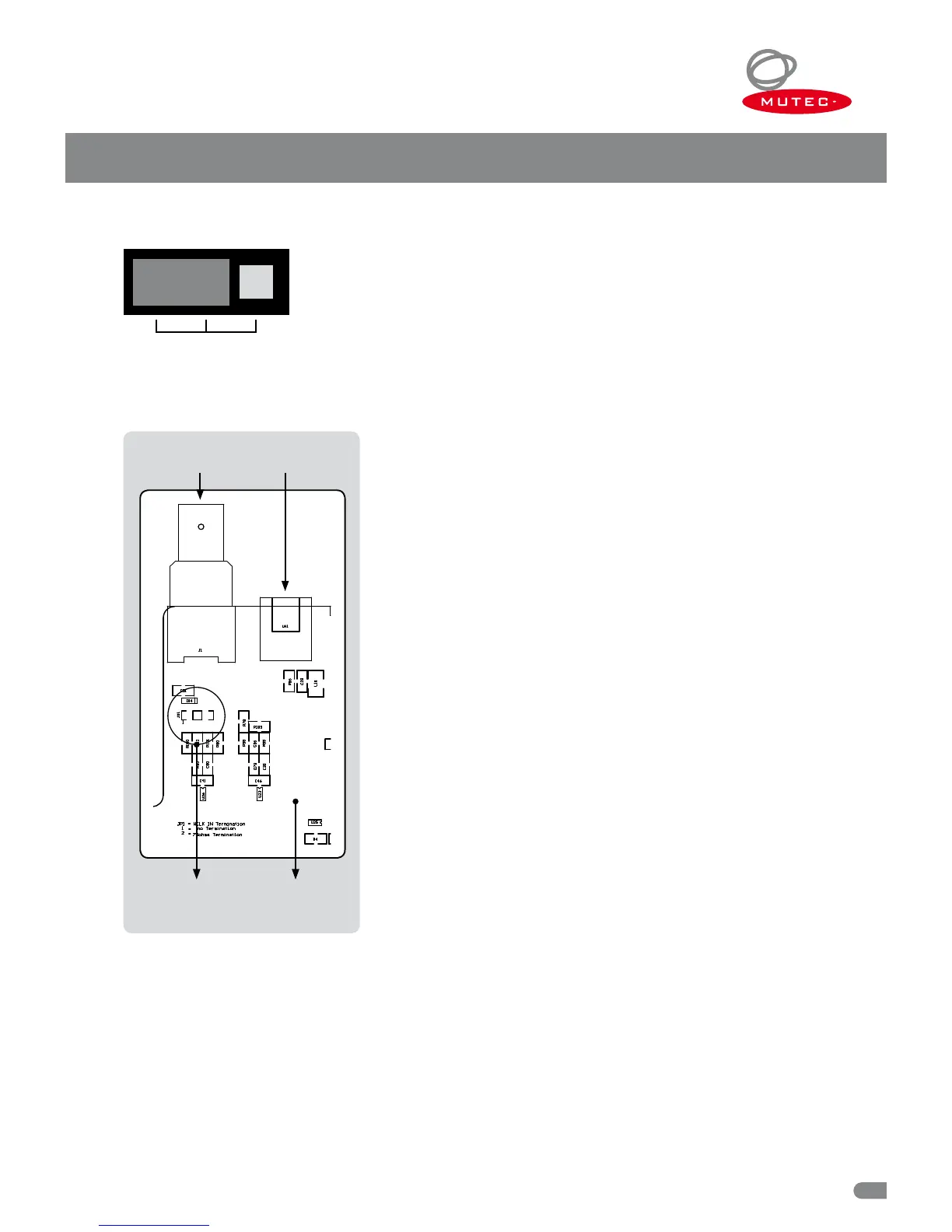

Inside View – Clock Input Termination
If you want to switch-off the termination, remove carefully the jumper from the two pins of
position 2 of the socket and plug it onto the two pins of position 1 (see adjacent sletch).
Attention
The jumper must be plugged on position one of the socket – do not omit him!
JP1
1 2
Jumper Position 1
=
no Termination
Word Clock &
1-10M Input
Termination
3-pin socket JP1
S/P-DIF OP
Input
MC-3+USB-
Mainboard-
PCB
