Connection
Connection

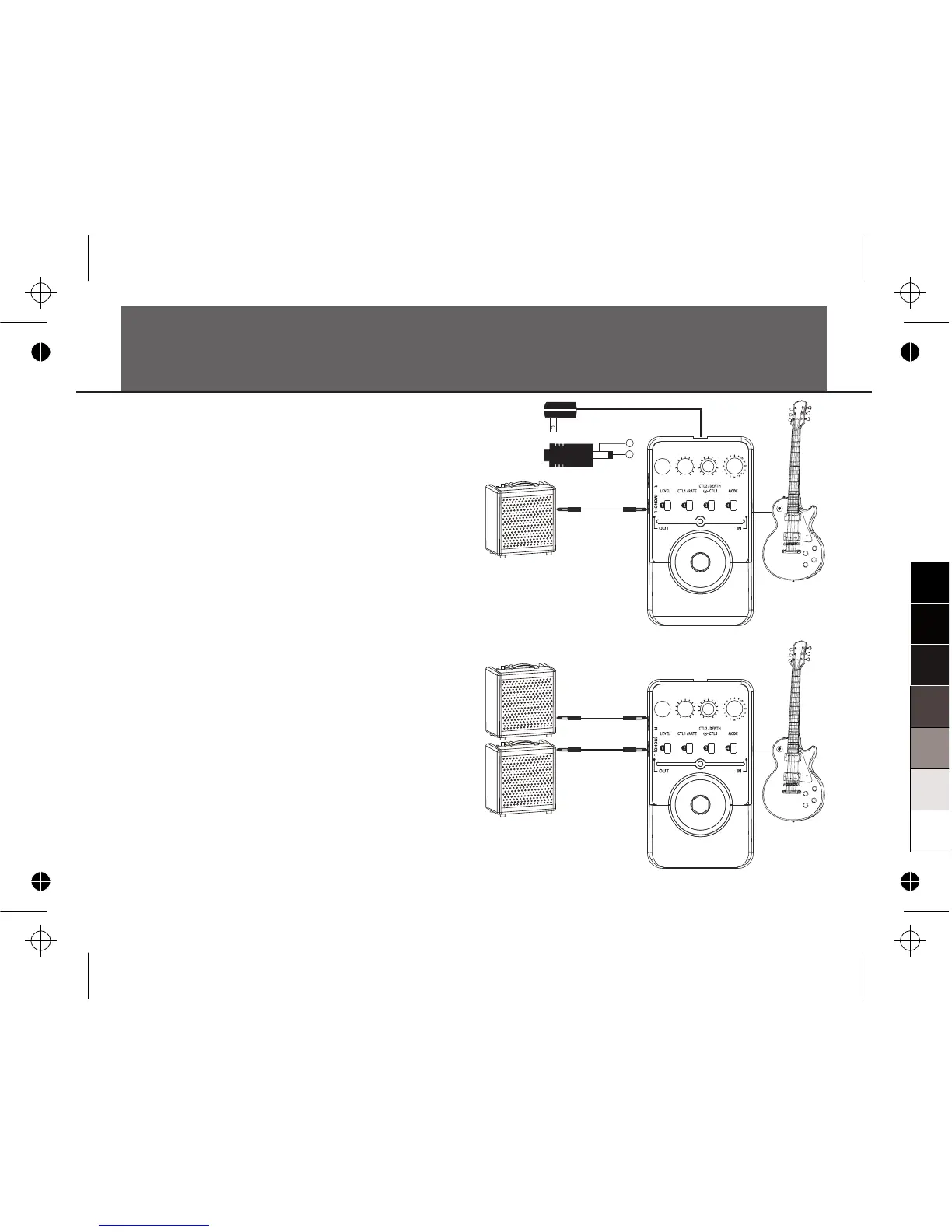

1. Connect the optional power supply to the
power jack or insert a 9V battery (optional)
into the battery compartment on the bottom.
2. Connect your guitar to input jack and an
amplifier to output jack of the Pedal.
3. The Pedal will automatically switch on after a
cable is plugged into its L-input jack when
using a battery.
Use only the appropriate adaptor with the
correct voltage and with a center NEGATIVE
polarity. Some adaptors are made with a
different polarity or voltage, which may
damage the unit if it has been falsely used in
connection.
AC Adaptor
OUT DC 9V
-
+
OUT L (MONO)
OUT L
OUT R
Amplifier II
Amplifier I
