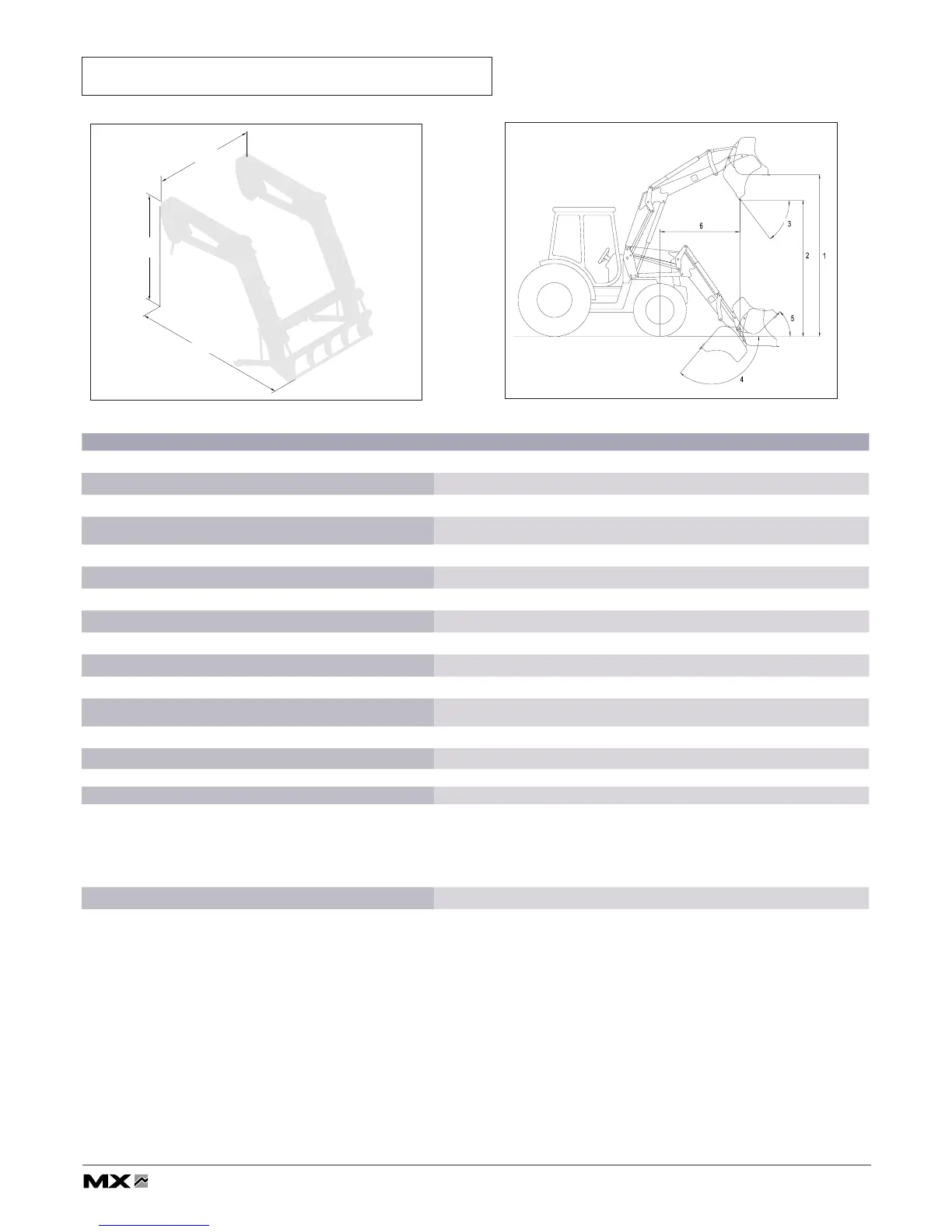

19. TECHNICAL SPECIFICATIONS
MX C1, C2 MX 20Cu MX 20C+ MX 25Cu MX 25C+ MX 30C+
Length : ( A )
1.20 m 1.45 m 1.45 m 1.60 m 1.60 m 1.75 m
Width : ( B )
0.90 m 0.90 m 0.90 m 0.90 m 0.90 m 1.05 m
Height : ( C )
1.05 m 1.05 m 1.05 m 1.20 m 1.20 m 1.25 m
Weight (Without option)
135 Kg
(with implement)
130 Kg 140 Kg 140 Kg 165 Kg 205 Kg
Maximum height at implement pivot *
1.92 m 2.15 m 2.15 m 2.45 m 2.45 m 2.60 m
Maximum height under horizontal bucket (1) #
1.80 m 1.95 m 1.95 m 2.25 m 2.25 m 2.35 m
Maximum height under dumped bucket (2) #
1.50 m 1.60 m 1.60 m 1.90 m 1.90 m 2.00 m
Digging depth #
0.10 m 0.15 m 0.15 m 0.15 m 0.15 m 0.15 m
Dumping angle at maximum height (3) #
40° 35° 68° 35° 68° 68°
Dumping angle on the ground (4) #
125° 90° 90° 115° 115° 122°
Crowd angle (5) #
30° 25° 45° 25° 45° 45°
Forward reach available for discharge (6) #
900 mm
850-950 mm 850-950 mm 950-1050 mm 950-1050 mm 1050-1150
mm
Lift force at implement pivot * (Kg)
450 Kg 660 Kg 660 Kg 730 Kg 730 Kg 1400 Kg
Lift capacity at implement pivot over the entire lifting range * (Kg)
420 Kg 570 Kg 570 Kg 630 Kg 630 Kg 990 Kg
Payload on pallet 0.50 m in front of the forks
At ground level (Kg)
390 Kg 470 Kg 490 Kg 510 Kg 540 Kg 1250 Kg
At 1 m height (Kg)
370 Kg 435 Kg 450 Kg 480 Kg 500 Kg 1100 Kg
At 2 m height (Kg)
– 395 Kg 410 Kg 425 Kg 450 Kg 930 Kg
At maximum height (Kg)
350 Kg 375 Kg 390 Kg 410 Kg 425 Kg 710 Kg
Lifting time (s)
3 sec 4.5 sec 4.5 sec 4.5 sec 4.5 sec 3.8 sec
Dumping time (s)
3 sec 2.2 sec 2.2 sec 2.5 sec 2.5 sec 3.3 sec
Data varies according to the type of tractor used.
Specifications measured at 140 bar and a flow rate of 15 litres/min for MX C1 and C2.
Specifications measured at 140 bar and a flow rate of 20 litres/min for MX 20Cu/20C+ and MX 25Cu/25C+.
Specifications measured at 180 bar and a flow rate of 30 litres/min for MX 30C+.
# Indicated data are with a loose material bucket.
* Values at ground level and at implement pivot are not considered to be working data.
