Checking before work.
Press on the ground to check if implement is correctly locked on the loader. Use D.A. mode.
Maneuver each hydraulic service to its maximum, in each direction to check the correct operation of the hydraulic
system and that there are no leaks.

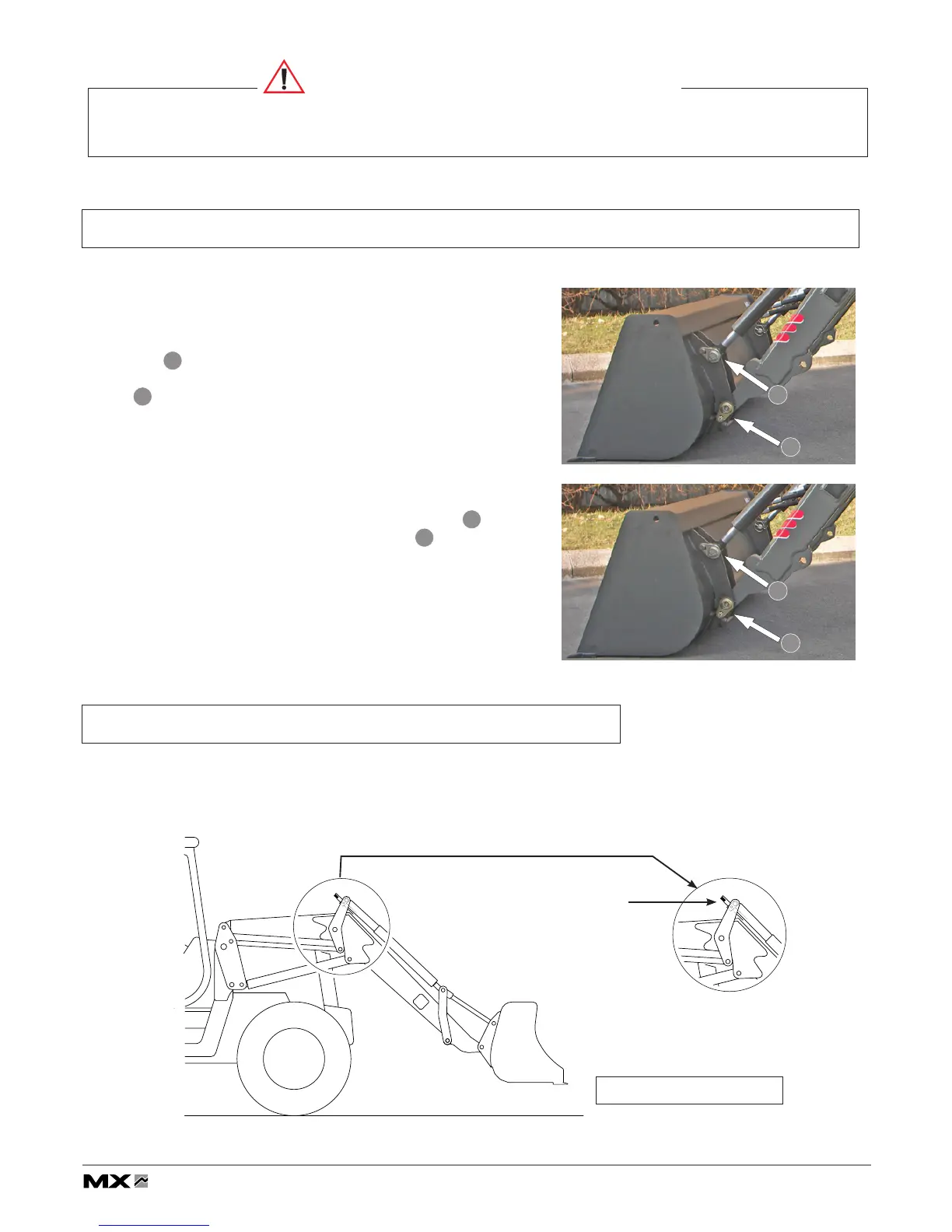

9. IMPLEMENT UNHITCHING / HITCHING - Cu, C1 and C2 LOADERS
9.1 Implement unhitching
Select a stable parking area.
Position the implement on the ground.
Remove the split pins then the crowd ram-implement link
pins
1
.
Remove the split pins then the boom-implement link pins
2
.
9.2 Implement hitching
Fit the boom-implement link pins, then the split pins
1
.
Fit the crowd ram link pins, then the split pins
2
. Adjust the
ram rod extension if necessary.
10. IMPLEMENT LEVEL INDICATOR - C+ loader
The implement level indicator is useful for implement repositioning. Efficient even while lowering the loader, it is adjustable
according to the implement type.
Implement in position
Indicator
