N-Com B1 - Connecting the Battery

10
3.2. Connecting the battery
Only for Jet helmets or flip-up helmets:

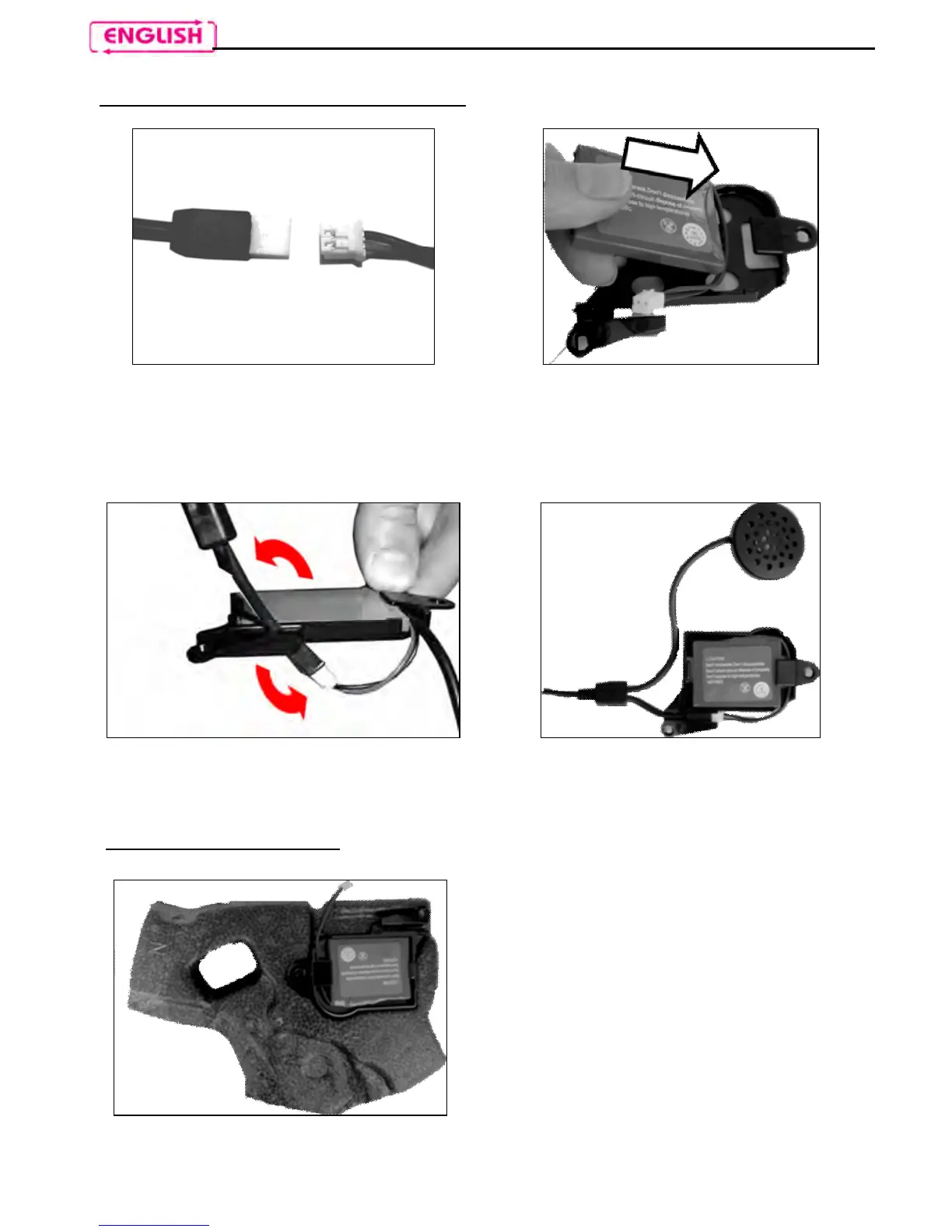

Fig. 15 Fig. 16
 Hook up the battery cable (Red+Black) to the connector located on the wiring system
(Fig. 15).
 Insert the battery in its holder, first positioning the side equipped with the cables
outlet, keeping the cables underneath the plastic tab (Fig. 16).
Fig. 17 Fig. 18
 Insert the connectors set in the cable-stop guide located on the side of the battery-
holder (Fig. 17 and 18).
Only for full face helmets:
Fig. 19
 Position the battery in the right
polystyrene cheek pad housing (Fig.
19).
