3.3. Installing the system on the helmet

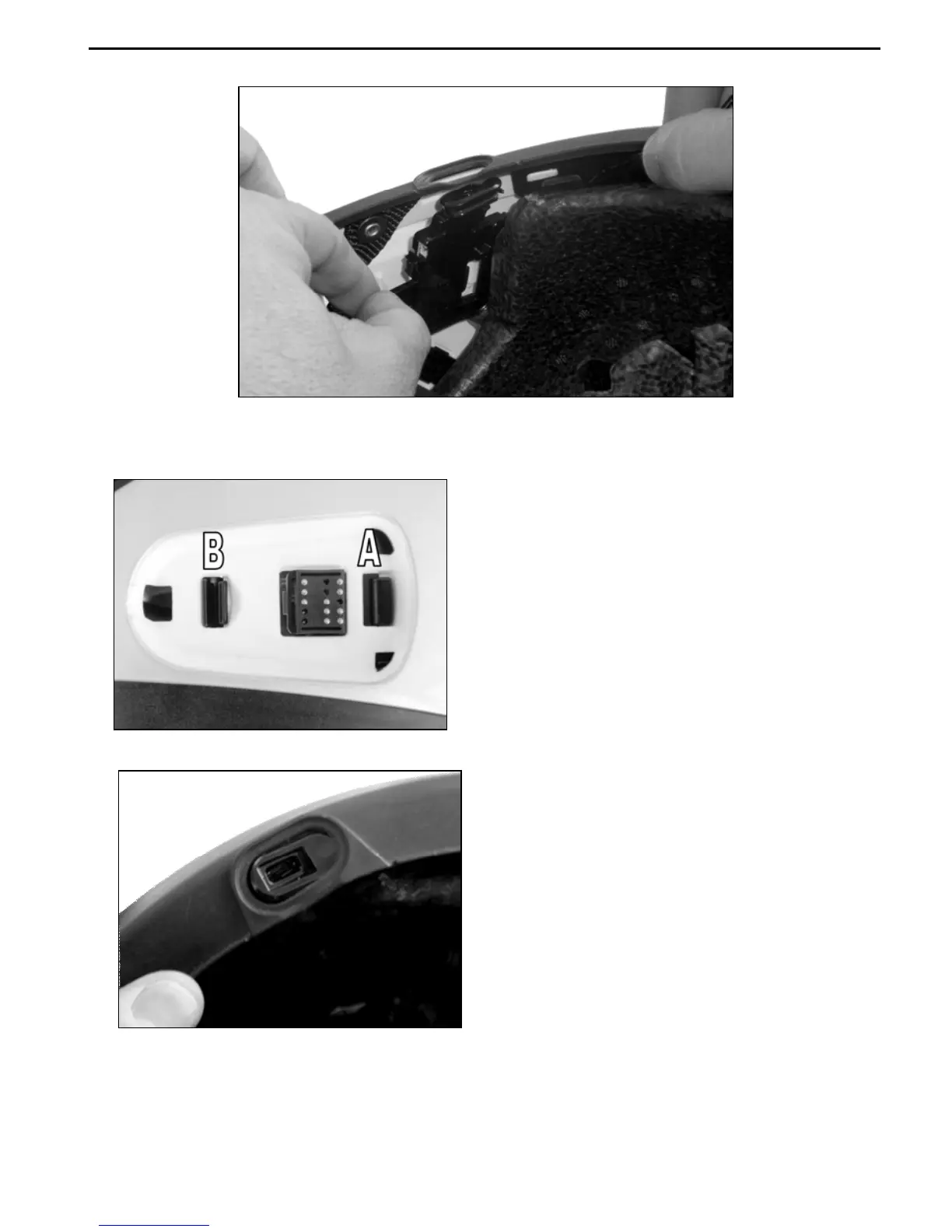

Fig. 20

 Position the system inside the helmet as shown in figure 20, next to the N-Com housing

in the shell.

Fig. 21

 Looking at the helmet from the outside,

slide the rear positioning tab into

groove A as shown in the figure;

 Press in the area marked PUSH from

inside the helmet until the fastening

clasp B clicks (Fig. 21).

Fig. 22



Pull out the connectors area from the

helmet gasket: the gasket will have to

be slightly deformed to facilitate the

insertion.
