N-Com B1 - Page 12

12

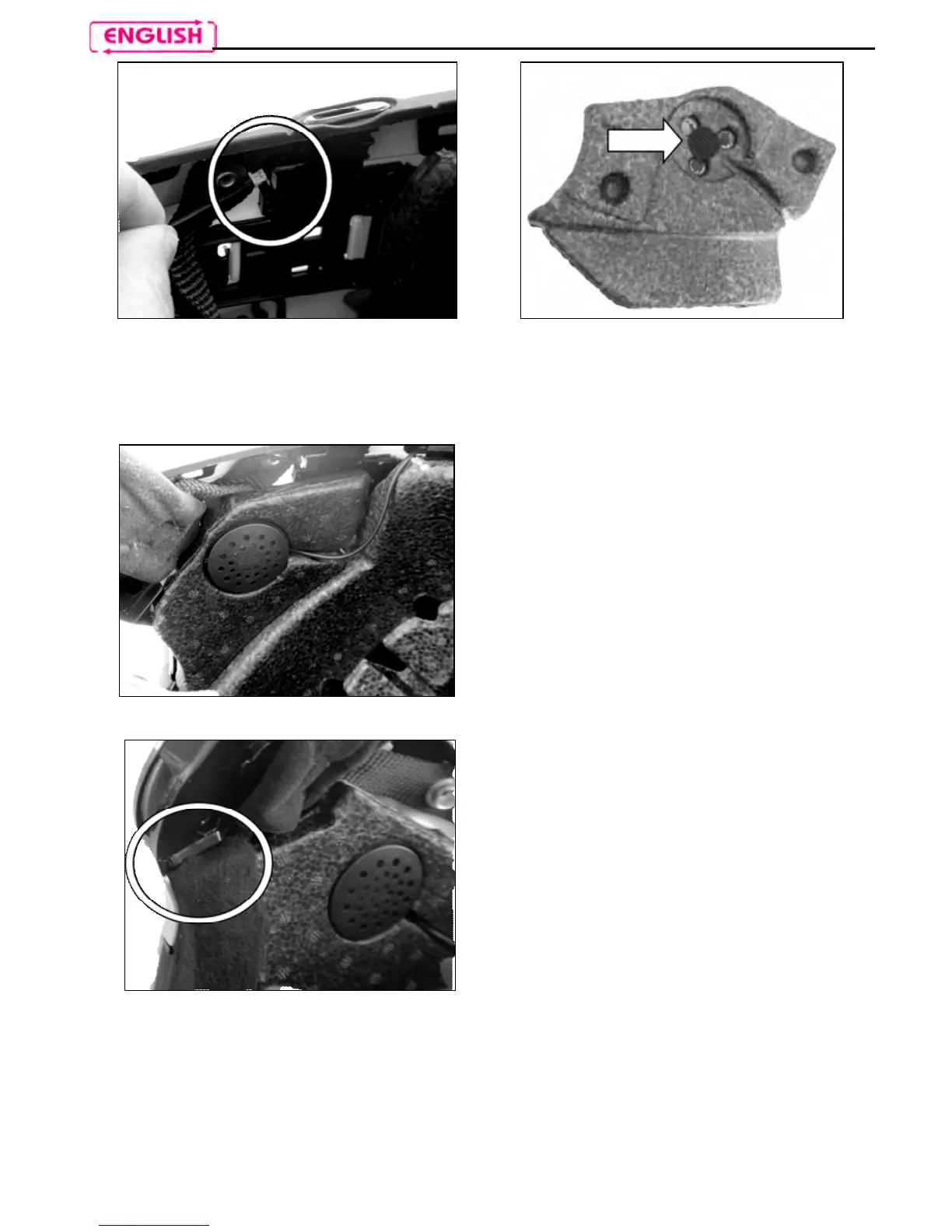

Fig. 23
Fig. 24
 Insert the microphone connector in the micro USB electronic plate.
 Before you place the speaker in its housing, apply the Velcro pad to the polystyrene
cheek pad (Fig. 24).
Fig. 25
 Position the loudspeaker in the special
housing obtained in the polystyrene cheek
pad (Fig. 25).
Fig. 26
 Replace the polystyrene cheek pad (left
s
ide), positioning the cable in the
groove that you see in the cheek pad
(Fig. 25).
Note: Make sure the cheek pad is properly
positioned in its housing, pushing in
the lined corner underneath the ribbing
on the shell (Fig. 26).
