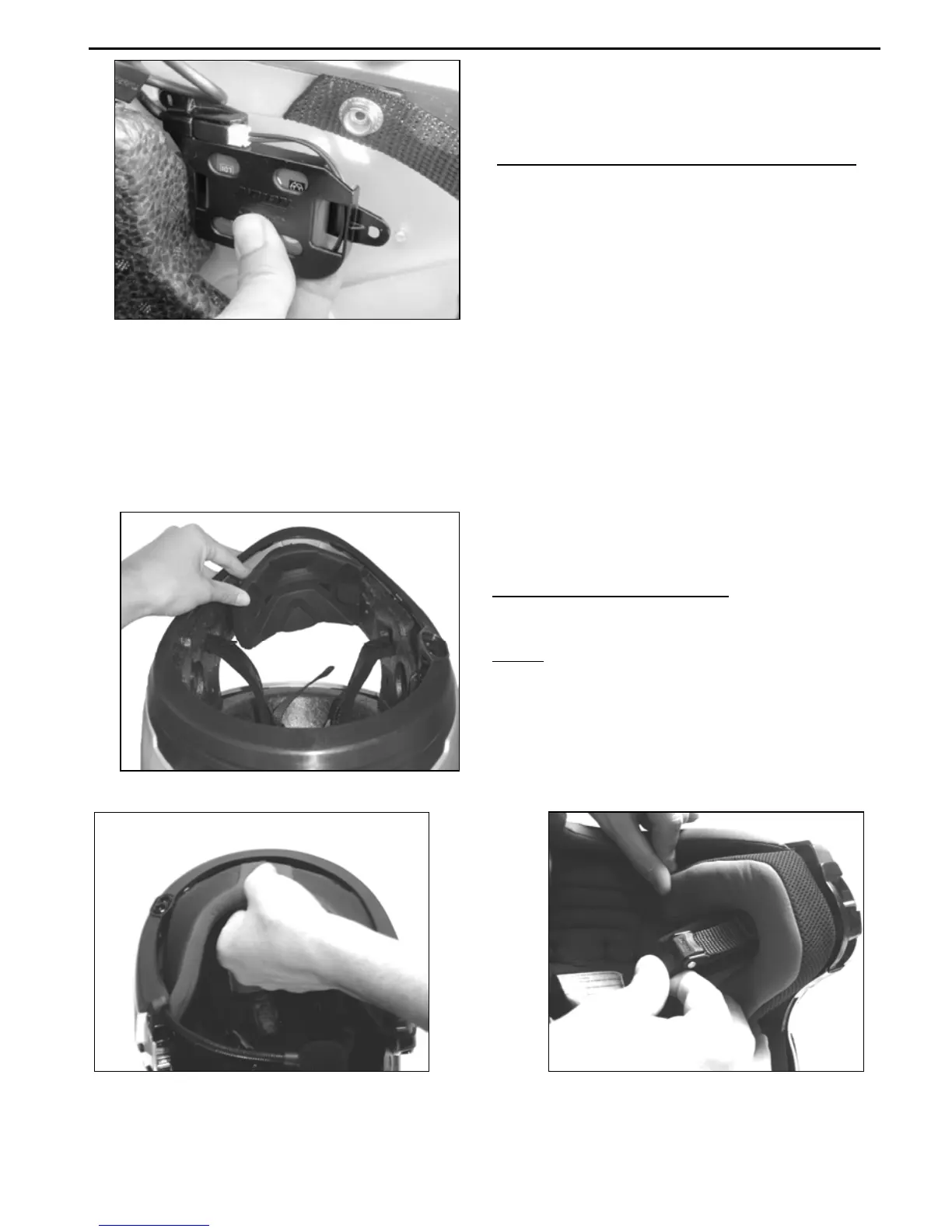

Fig. 27
Only for Jet helmets or flip-up helmets
 Secure the battery-holder support to
the right side of the helmet, lining up
the holes with the pins on the shell
(Fig. 27)
 Before you place the speaker in its housing, apply the Velcro pad to the polystyrene
cheek pad (right side).
 Position the loudspeaker in its housing obtained in the polystyrene cheek pad (right
side).
 Replace the polystyrene cheek pad (right side), positioning the cable in the groove you
see in the cheek pad.
Fig. 28
Only for full-face helmets
Insert the chin guard (microphone side),
gently placing the microphone in its
housing. Then press down on the red tab
until the chin guard is locked in place on the
helmet. (Fig. 28)
Fig. 29
Fig. 30
 Position the comfort padding in its housing (see specific instructions provided in the
helmet user manual), hooking the neck roll (Fig. 29).
