FOR THE N87 HELMENT ONLY – positioning the keypad
 Insert the support specific for your helmet in the flex cable of the keypad (Fig. 6);
 Rotate the keypad support so as to position it like in Fig. 7, then hook it to the keypad;
 Fix the cable inside the helmet and make sure the left fixing clip snaps into its housing (Fig. (8);
 Reassemble the gasket and secure it with the specific screw;
 Hook up the keypad to the helmet by clicking in the relevant hooks (Fig. 9);
 The proper positioning of the keypad is illustrated in Fig. 10 and in Fig. 11.

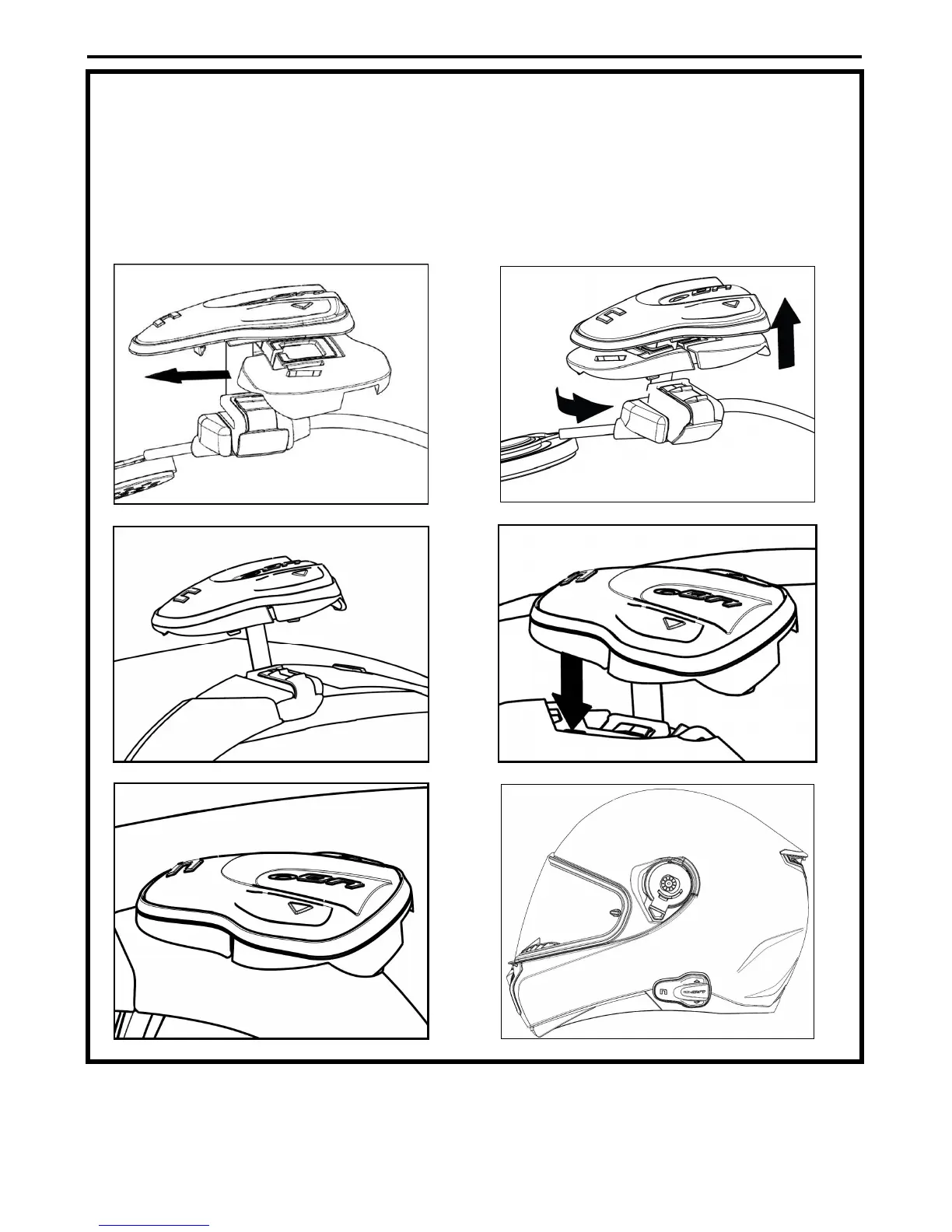

Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11
 Position the left and right speakers in the respective housing obtained in the polystyrene cheek
padding. If necessary, rotate the speakers slightly in their housing.
 Reassemble the cheek padding.
