P L ATFORM ASSEMBLY
TOOLS YOU’LL NEED:
9/16” socket Wrench
Phillips Srewdriver
Allen Wrench (included)
HULL ASSEMBLY

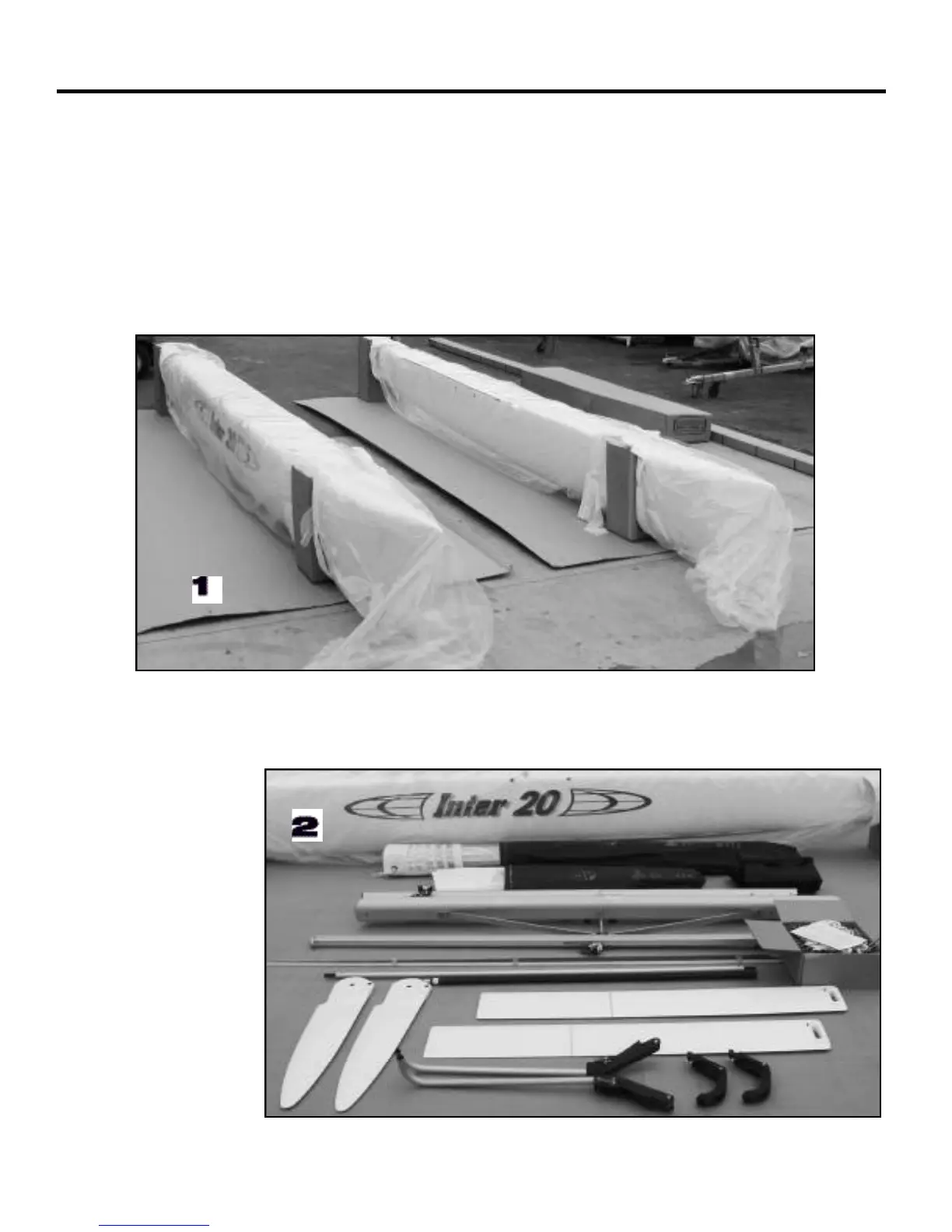

Place hulls boxes approx. 8 feet apart. Make sure both hulls are facing the same direction, and port
and starboard hulls are oriented correctly. (Pic. 1) Open the boxes, leaving the hulls in the box cra-
dles. Be cautious of the staples- they are very sharp and may scratch the hulls, or cause cuts.
Open the hardware box or boxes and familiarize yourself with all of the parts of your boat. (2) The
hardware boxes may include some or all of the following depending on which model boat you have:
The exact contents for your model will be listed on the sheet enclosed.
• Main beam
• Rear beam
• Rudder box
• Tiller tie bar
• Tiller extension
• Rigging box
• Boom
• Daggerboards
• Sails w/ battens
• Trampoline w/ rod
• Roller furling gear
• Spinnaker gear
