NAD 214 - Exploded View Parts List

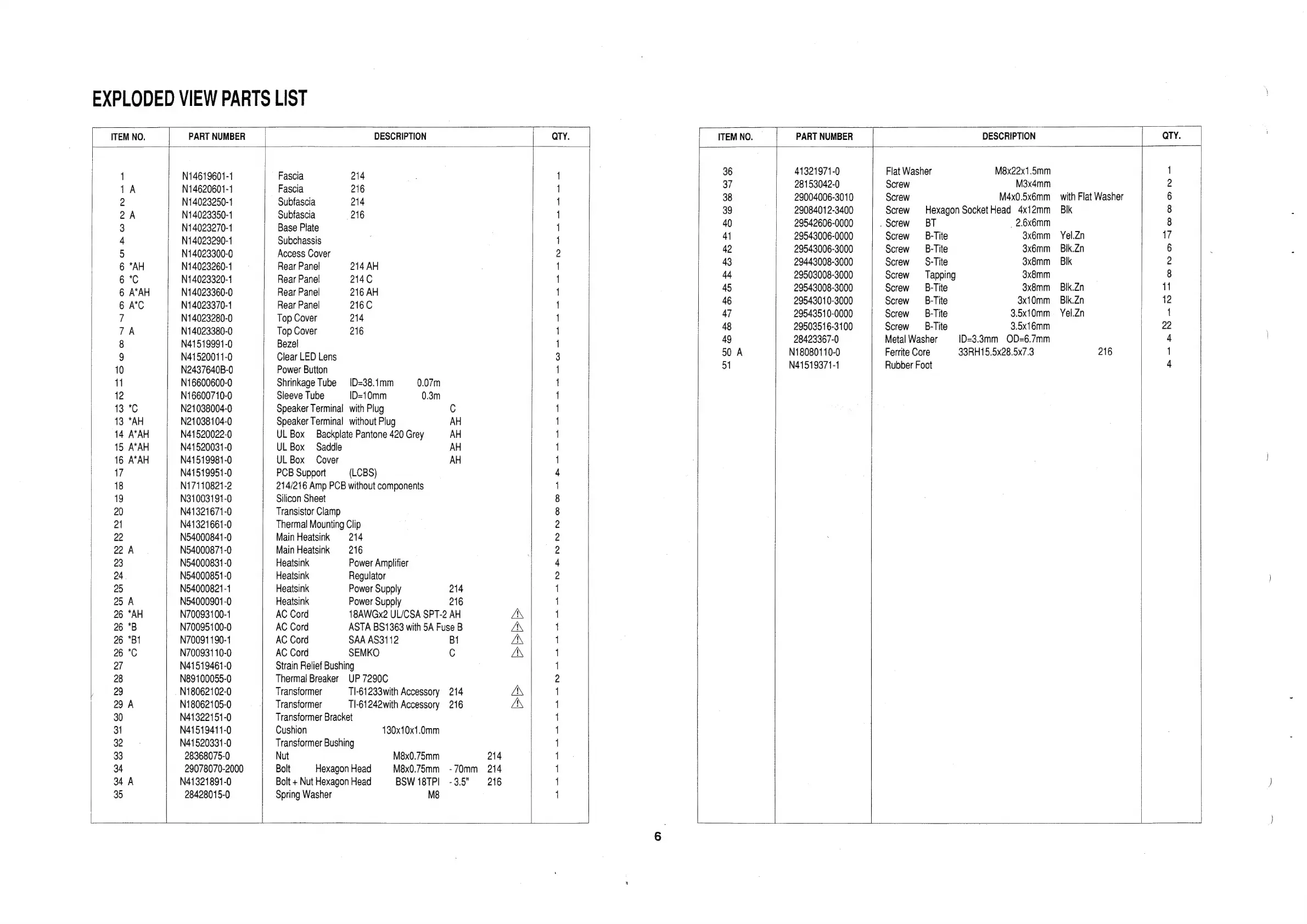

EXPLODED VIEW PARTS LIST
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 N14619601-1 Fascia 214 |
1A N14620601-1 Fascia 216 1
2 N14023250-1 Subfascia 214 1
2A N14023350-1 Subfascia 216 |
3 N14023270-1 Base Plate 1
4 N14023290-1 Subchassis 1
5 N14023300-0 Access Cover 2
6 *AH N14023260-1 Rear Panel 214 AH 1
6 *C N14023320-1 Rear Panel 214C 1
6 A*‘AH N14023360-0 Rear Panel 216 AH |
6 A*C N14023370-1 Rear Panel 216C 1
7 N14023280-0 Top Cover 214 1
7A N14023380-0 Top Cover 216 {
8 N41519991-0 Bezel 1
9 N41520011-0 Clear LED Lens 3
10 N2437640B-0 Power Button 1
11 N16600600-0 Shrinkage Tube ID=38.i1mm 0.07m 1
12 N16600710-0 Sleeve Tube ID=10mm 0.3m 1
13 *C N21038004-0 Speaker Terminal with Plug C 1
13 *AH N21038104-0 Speaker Terminal without Plug AH 1
14 A*AH N41520022-0 UL Box Backplate Pantone 420 Grey AH 1
15 A*AH N41520031-0 UL Box Saddle AH 1
16 A*AH N41519981-0 UL Box Cover AH 1
17 N41519951-0 PCB Support (LCBS) 4
18 N17110821-2 214/216 Amp PCB without components 1
19 N31003191-0 Silicon Sheet 8
20 N41321671-0 Transistor Clamp 8
21 N41321661-0 Thermal Mounting Clip 2
22 N54000841-0 Main Heatsink 214 2
22 A N54000871-0 Main Heatsink 216 2
23 N54000831 -0 Heatsink Power Amplifier 4
24. N54000851 -0 Heatsink Regulator 2
25 N54000821-1 Heatsink Power Supply 214 1
25 A N54000901-0 Heatsink Power Supply 216 1
26 *AH N70093100-1 AC Cord 18AWGx2 UL/CSA SPT-2 AH ZN 1
26 *B N70095100-0 AC Cord ASTA BS1363 with 5A Fuse B A 1
26 *BI N70091 190-1 AC Cord SAA AS31112 Bi ZN 1
26 *C N700931 10-0 AC Cord SEMKO C maN 1
27 N41519461-0 Strain Relief Bushing 1
28 N89100055-0 Thermal Breaker UP 7290C 2
29 N18062102-0 Transformer TI-61233with Accessory 214 ZN 1
29 A N18062105-0 Transformer TI-61242with Accessory 216 A 1
30 N41322151-0 Transformer Bracket 1
31 N41519411-0 Cushion 130x10x1.0mm 1
32 N41520331-0 Transformer Bushing 1
33 28368075-0 Nut M8x0.75mm 214 1
34 29078070-2000 Bolt Hexagon Head M8x0.75mm -70mm 214 1
34 A N41321891-0 Bolt + Nut Hexagon Head BSW i8TPI -3.5" 216 {
35 28428015-0 Spring Washer M8 1
ITEM NO. — PART NUMBER DESCRIPTION QTY.
36 41321971-0 Flat Washer M8x22x1.5mm 1
37 28153042-0 Screw M3x4mm 2
38 29004006-3010 Screw M4x0.5x6mm__ with Flat Washer 6
39 29084012-3400 Screw Hexagon Socket Head 4x12mm_ Blk 8
40 29542606-0000 . Screw BT _ 2.6x6mm 8
41 29543006-0000 Screw _B-Tite 3x6mm_Yel.Zn 17
42 29543006-3000 Screw _B-Tite 3x6mm_Bik.Zn 6
43 29443008-3000 Screw S-Tite 3x8mm_ Bik 2
44 29503008-3000 Screw Tapping 3x8mm 8
45 29543008-3000 Screw _B- Tite 3x8mm_—Bik.Zn 11
46 29543010-3000 Screw _B-Tite 3x10mm__Bik.Zn 12
47 29543510-0000 Screw _B-Tite 3.5x10mm_ = Yel.Zn 1
48 29503516-3100 Screw _B- Tite 3.5x16mm 22
49 28423367-0 Metal Washer ID=3.3mm OD=6.7mm 4
50 A N18080110-0 Ferrite Core 33RH15.5x28.5x7.3 216 1
51 N41519371-1 Rubber Foot 4
