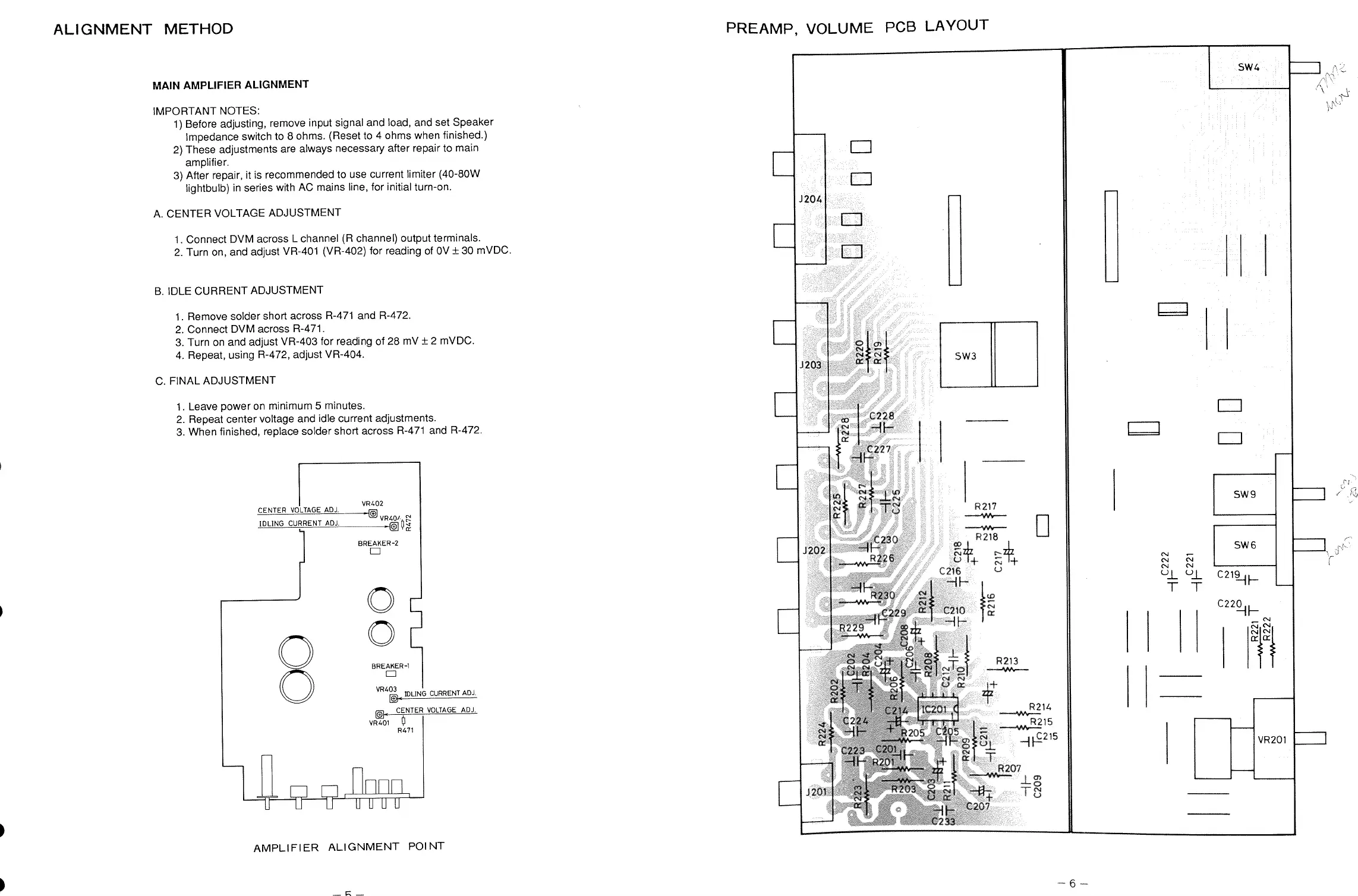

ALIGNMENT
METHOD
MAIN
AMPLIFIER
ALIGNMENT
IMPORTANT
NOTES:
1)
Before
adjusting,
remove
input
signal
and
load,
and
set
Speaker
Impedance
switch
to 8
ohms.
(Reset
to 4
ohms
when
finished.)
2)
These
adjustments
are
always
necessary after
repair
to
main
amplifier.
3)
After
repair,
it is
recommended to
use
current
limiter
(40-80W
lightbulb)
in
series
with
AC
mains
line,
for
initial
turn-on.
A.
CENTER
VOLTAGE
ADJUSTMENT
1. Connect
DVM
across
L
channel
(R
channel)
output
terminals.
2. Turn
on,
and
adjust
VR-401
(VR-402)
for
reading
of
0V ±
30
mVDC.
B. IDLE
CURRENT
ADJUSTMENT
1. Remove
solder
short
across
R-471
and R-472.
2.
Connect
DVM
across
R-471.
3.
Turn
on
and
adjust
VR-403
for
reading
of 28
mV
± 2
mVDC.
4.
Repeat,
using
R-472,
adjust
VR-404.
C.
FINAL
ADJUSTMENT
.
.
1. Leave
power
on
minimum
5
minutes.
2.
Repeat
center
voltage
and
idle
current
adjustments.
3. When
finished,
replace
solder
short
across
R-471
and
R-472.
t’1
I
(J+
(S 4
. C
2
LL
.1
213
I
Iv
T
0
(SIS
a: 1
a:
m
C26
1IC201
(1
P2
C226
11
IF—
+
P205
‘tho’s
I
..J
L
C223
C201
°‘
2Oi
I+It 1
.
P207
—Wv—-—
P2’),
-.
-
HF
c2;
C
233
AMPLIFIER
ALIGNMENT
POINT
PREAMP,
VOLUME
PCB
LAYOUT
U
u
(7)
—
c
c
L1
LZI
P217
—wv—
—
(‘4
(‘4
(‘4
0j
0±
TT
.
—5—
