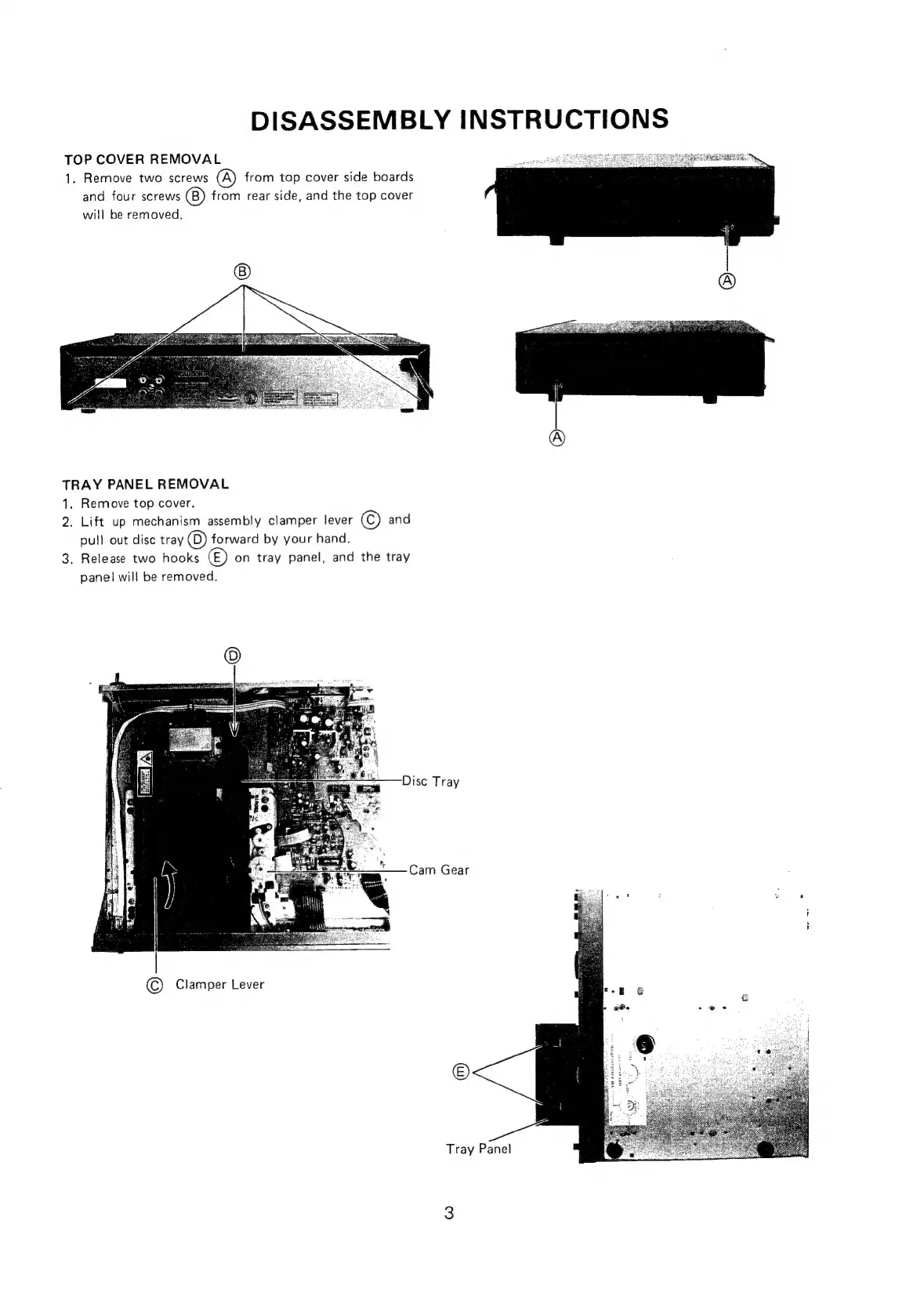

DISASSEMBLY INSTRUCTIONS
TOP COVER REMOVAL
1. Remove two screws @) from top cover side boards
and four screws (B) from rear side, and the top cover
will be removed,
TRAY PANEL REMOVAL
1. Remove top cover.
2. Lift up mechanism assembly clamper lever © and
pull out disc tray (0) forward by your hand.
3. Release two hooks ©) on tray panel, and the tray
panel will be removed.
Disc Tray
%,.
- Cam Gear
© Clamper Lever
Tray Panel
