NAD 5420 - Page 18

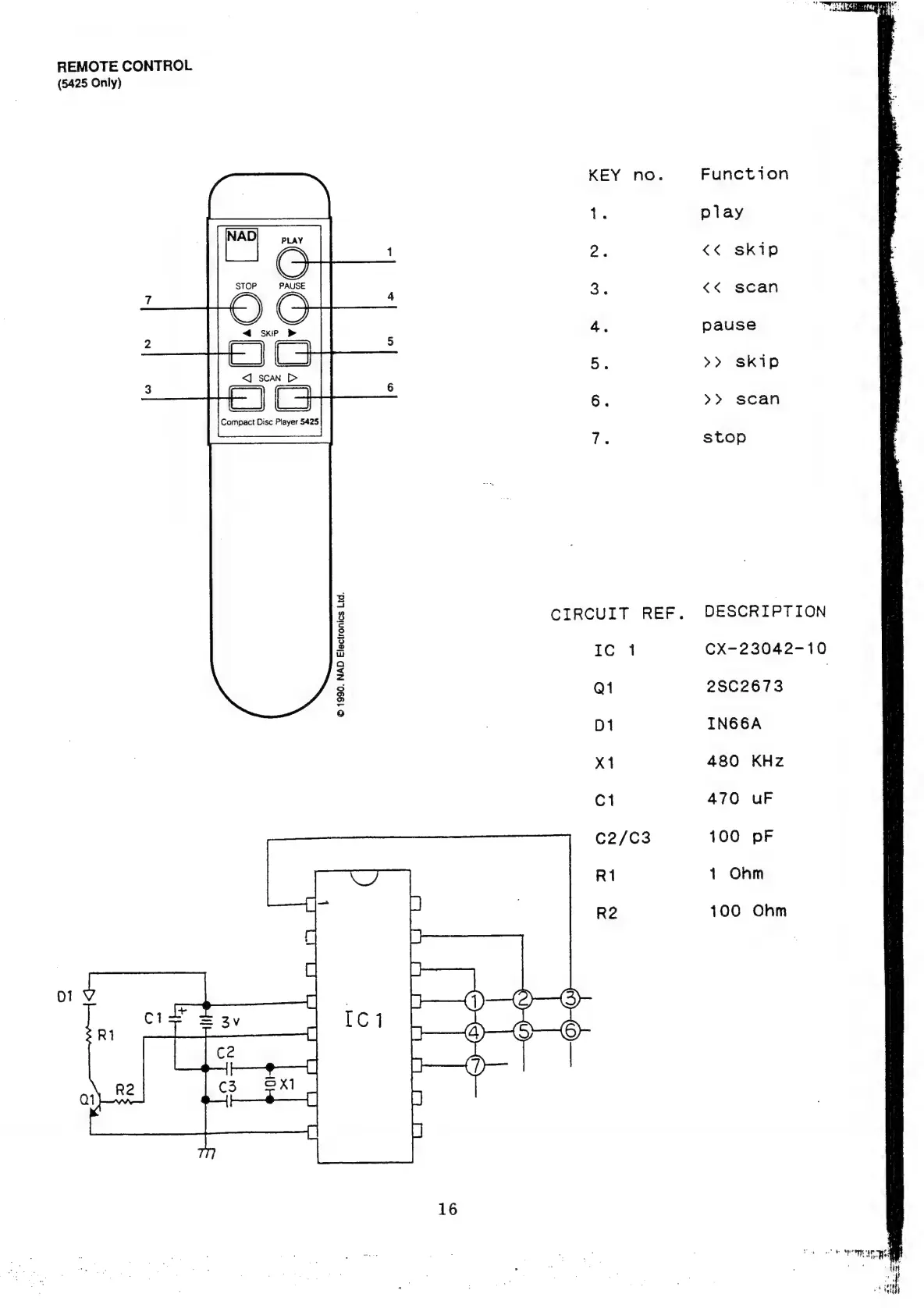

REMOTE CONTROL
(5425 Only)
Compact Disc Player 5425
© 1990. NAD Electronics Ltd.
KEY no.
CIRCUIT REF.
Ic 1
Q1
D1
X1
Ci
C2/C3
R1
R2
Function
play
<< skip
<< scan
pause
>> skip
>> scan
stop
DESCRIPTION
CX-23042-10
2802673
IN66A
480 KHz
470 uF
100 pF
1 Ohm
100 Ohm
