NAD 5420 - Mechanism Exploded Parts List

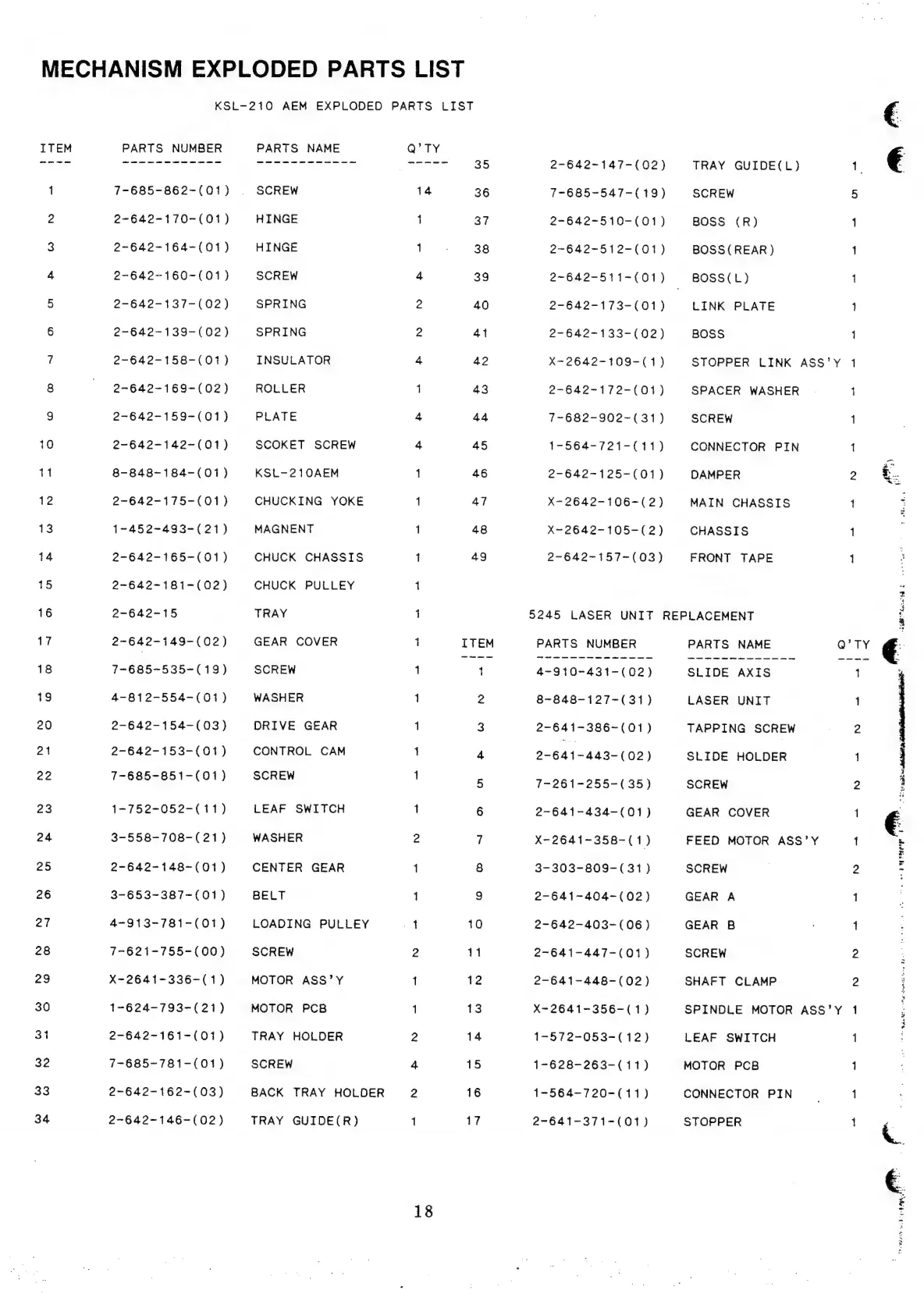

MECHANISM EXPLODED PARTS LIST
ITEM
10
11
12
13
14
15
16
18
19
20
21
22
23
24
25
26
at
28
29
30
31
32
33
34
KSL-210 AEM EXPLODED PARTS LIST
PARTS NUMBER
7-685-862-(01)
2-642-170-(01)
2~642-164-(01)
2-642-160-(01)
2-642-137-(02)
2-642-139-(02)
2-642-158-(01)
2-642-169-(02)
2-642-159-(01)
2-642-142-(01)
8-848-184-(01)
2-642-175-(01)
1~452-493-(21)
2-642-165-(01)
2-642-181-(02)
2-642-15
2-642-149-(02)
7-685-~535-(19)
4-812-554-(01)
2-642-154-(03)
2-642-153-(01)
7-685-851-(01)
1-752-052-(11)
3-558-708-(21)
2-642-148-(01)
3-653-387-(01)
4-913-781-(01)
7-621-755-(00)
X-2641-336-(1)
1-624-793-(21)
2-642-161-(01)
7-685-781-(01)
2-642-162-(03)
2-642-146-(02)
PARTS NAME
SCREW
HINGE
HINGE
SCREW
SPRING
SPRING
INSULATOR
ROLLER
PLATE
SCOKET SCREW
KSL-210AEM
CHUCKING YOKE
MAGNENT
CHUCK CHASSIS
CHUCK PULLEY
TRAY
GEAR COVER
SCREW
WASHER
DRIVE GEAR
CONTROL CAM
SCREW
LEAF SWITCH
WASHER
CENTER GEAR
BELT
LOADING PULLEY
SCREW
MOTOR ASS’Y
MOTOR PCB
TRAY HOLDER
SCREW
BACK TRAY HOLDER
TRAY GUIDE(R)
18
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
ITEM
10
11
12
14
15
16
2-642-147-(02)
7-685-547-(19)
2-642-510-(01)
2-642-512-(01
2~642-511-(01)
2-642-173-(01)
2-642-133-(02)
X-2642-109-(1)
2-642-172-(01)
7~682-902-(31)
1-564-721-(11)
2-642-125-(01)
X-2642-106-(2)
X-2642-105-(2)
2=642=157-(03)
TRAY GUIDE(L)
SCREW
BOSS (R)
BOSS (REAR )
BOSS(L)
LINK PLATE
BOSS
STOPPER LINK ASS’Y 1
SPACER WASHER
SCREW
CONNECTOR PIN
DAMPER
MAIN CHASSIS
CHASSIS
FRONT TAPE
5245 LASER UNIT REPLACEMENT
PARTS NUMBER
4-910-431-(02)
8-848-127-(31)
2-641-386~(01)
2-641-443-(02)
7-261-255-(35)
2-641-434-(01)
X-2641~358-(1)
3-303-809-(31)
2-641-404-(02)
2-642-403~-(06)
2-641-447-(01)
2-641-448-(02)
X-2641-356-(1)
1-572-053-(12)
1-628-263-(11)
1-564-720-(11)
2-641-371-(01)
PARTS NAME
SLIDE AXIS
LASER UNIT
TAPPING SCREW
SLIDE HOLDER
SCREW
GEAR COVER
FEED MOTOR ASS’Y
SCREW
GEAR A
GEAR B
SCREW
SHAFT CLAMP
SPINDLE MOTOR ASS’Y 1
LEAF SWITCH
MOTOR PCB
CONNECTOR PIN
STOPPER
