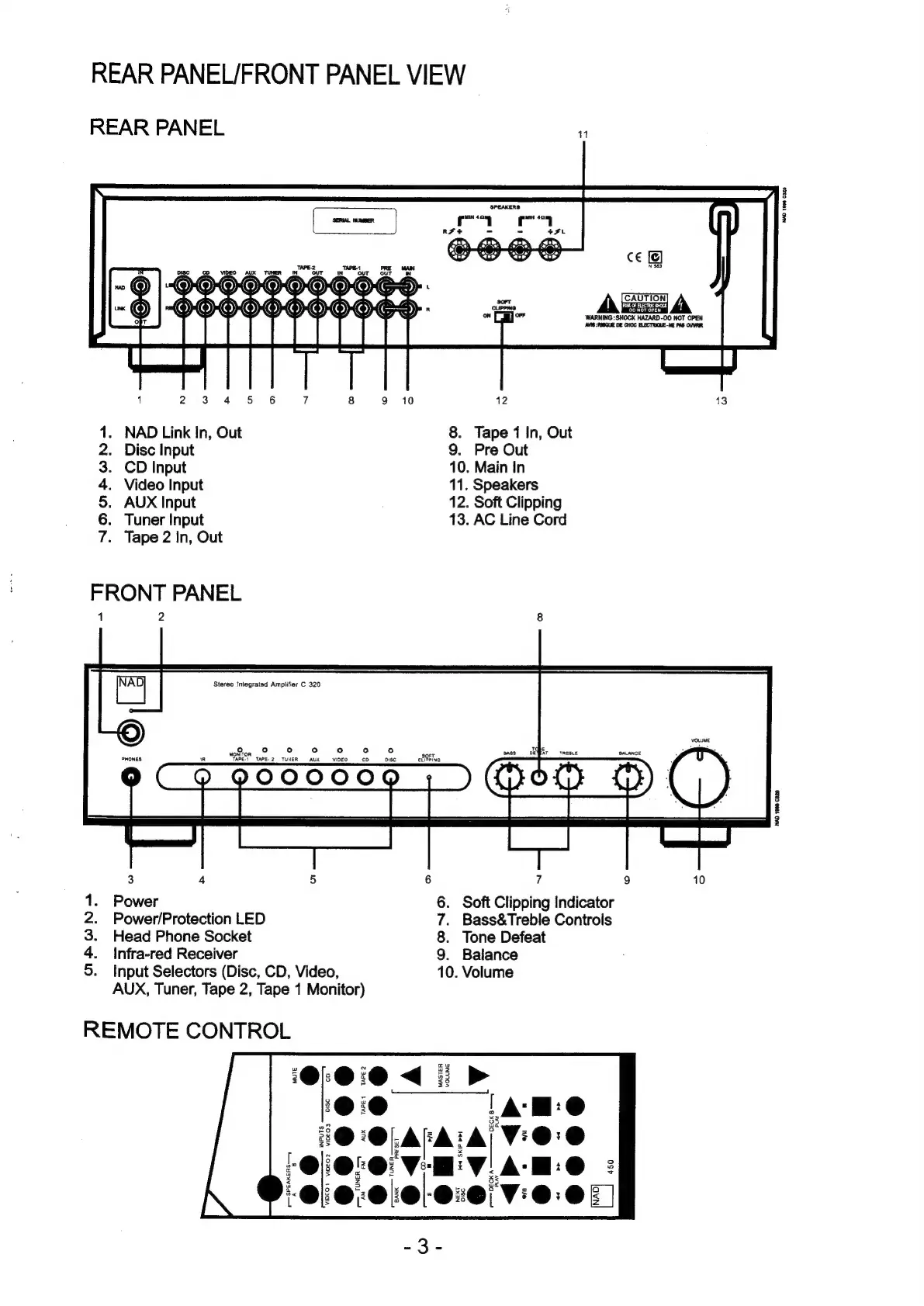

REAR PANEL/FRONT PANEL VIEW
REAR PANEL 11
1. NAD Link In, Out 8. Tape 1 In, Out
2. Disc Input 9. Pre Out
3. CD Input 10. Main in
4. Video Input 11. Speakers
5. AUX Input 12. Soft Clipping
6. Tuner Input 13. AC Line Cord
7. Tape 2 In, Out
FRONT PANEL
1
2
:
Stereo Integrated Amplifier C 320
woPron ° ° ° ° ° 3°
1ONTT
TAPE-| TAPE» 2 TUNER AUX -VIDEO—_—scD Disc
NAD 1908 C320
1. Power 6. Soft Clipping Indicator
2. Power/Protection LED 7. Bass&Treble Controls
3. Head Phone Socket 8. Tone Defeat
4. Infra-red Receiver 9. Balance
5. Input Selectors (Disc, CD, Video, 10. Volume
AUX, Tuner, Tape 2, Tape 1 Monitor)
REMOTE CONTROL
