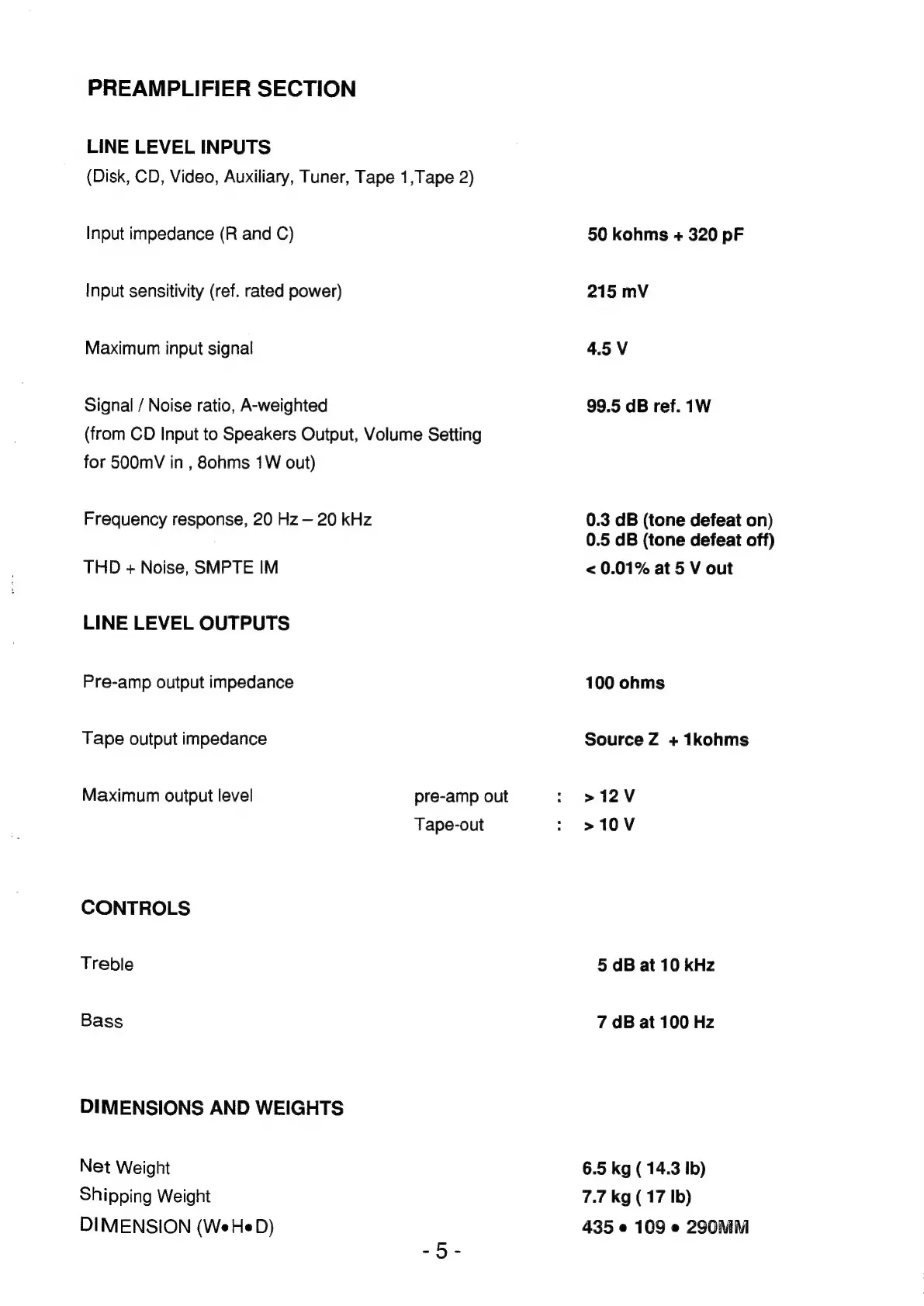

NAD C 320 - Page 5

PREAMPLIFIER SECTION
LINE LEVEL INPUTS
(Disk, CD, Video, Auxiliary, Tuner, Tape 1,Tape 2)
Input impedance (R and C)
Input sensitivity (ref. rated power)
Maximum input signal
Signal / Noise ratio, A-weighted
(from CD Input to Speakers Output, Volume Setting
for 500mV in , 80hms 1W out)
Frequency response, 20 Hz — 20 kHz
THD + Noise, SMPTE IM
LINE LEVEL OUTPUTS
Pre-amp output impedance
Tape output impedance
Maximum output level pre-amp out
Tape-out
CONTROLS
Treble
Bass
DIMENSIONS AND WEIGHTS
Net Weight
Shipping Weight
DIMENSION (WeHeD)
50 kohms + 320 pF
215 mV
45V
99.5 dB ref. 1W
0.3 dB (tone defeat on)
0.5 dB (tone defeat off)
< 0.01% at 5 V out
100 ohms
Source Z + 1kohms
>12V
>10V
5 dB at 10 kHz
7 GB at 100 Hz
6.5 kg ( 14.3 Ib)
7.7 kg (17 Ib)
435 e 109 » 290MM
