ADJUSTMENT PROCEDURE
OSD VCO Oscillation Frequency (VIDEO BOARD)
Connect M15 CVBS monitor out to a TV set. Press “Enter” key on remote control to call OSD out.
Then clockwise adjust C1162 and observe the OSD till the characters are just disappear, record
the adjustment slot position A; then anticlockwise C1162 to make the OSD characters disappear
and record the adjustment slot position B again. Adjust the adjustment slot position in the middle
of A and B. Get in “DISPLAY SETUP” OSD Menu and switch the unit in both “NTSC” and PAL”
mode, observe the OSD characters, they should be all stable displaying without any flicker.
1-4

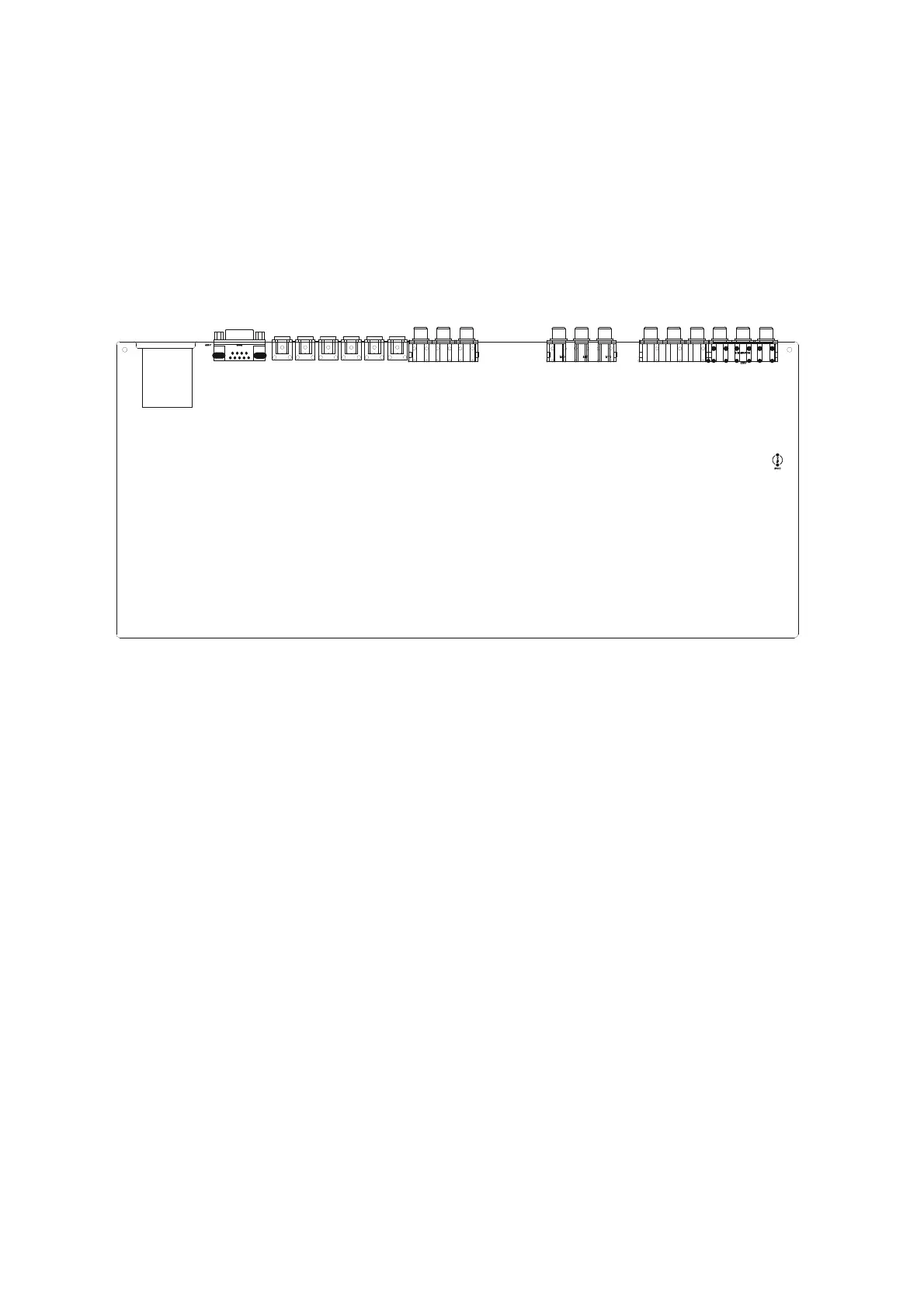

C1162
VIDEO BOARD
SOFTWARE VERSION:
TO DISPLAY SOFTWARE VERSIONS, PRESS FRONT PANEL video & audio SIMULTANEOUSLY
