NAD MONITOR Series User Manual

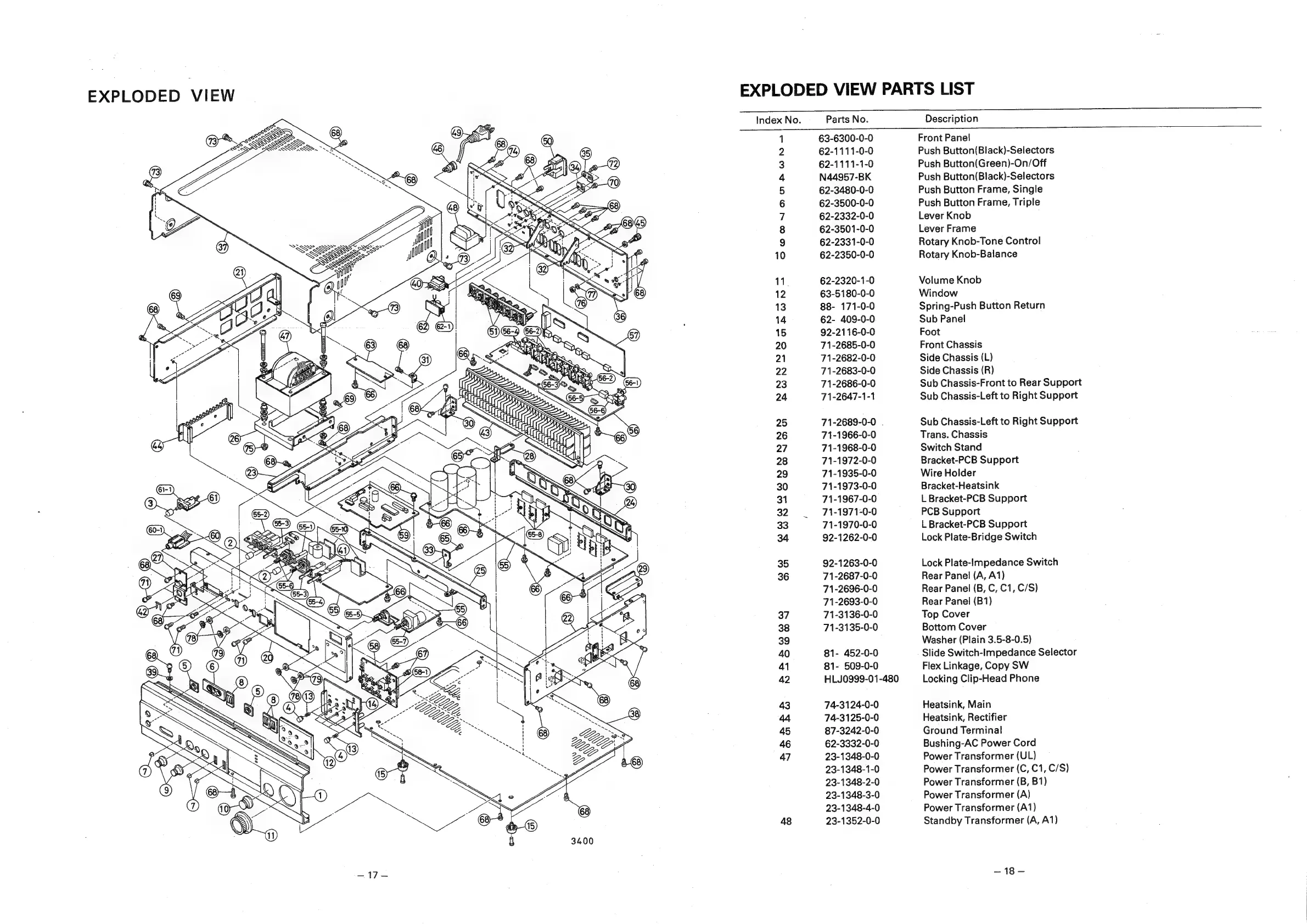

EXPLODED VIEW
EXPLODED VIEW PARTS LIST
Index No.
COON ODOR WNH _
48
Parts No.
63-6300-0-0
62-1111-0-0
62-1111-1-0
N44957-BK
62-3480-0-0
62-3500-0-0
62-2332-0-0
62-3501-0-0
62-2331-0-0
62-2350-0-0
62-2320-1-0
63-5180-0-0
88- 171-0-0
62- 409-0-0
92-2116-0-0
71-2685-0-0
71-2682-0-0
71-2683-0-0
71-2686-0-0
71-2647-1-1
71-2689-0-0 .
71-1966-0-0
71-1968-0-0
71-1972-0-0
71-1935-0-0
71-1973-0-0
71-1967-0-0
71-1971-0-0
71-1970-0-0
92-1262-0-0
92-1263-0-0
71-2687-0-0
71-2696-0-0
71-2693-0-0
71-3136-0-0
71-3135-0-0
81- 452-0-0
81- 509-0-0
HLJ0999-01-480
74-3124-0-0
74-3125-0-0
87-3242-0-0
62-3332-0-0
23-1348-0-0
23-1348-1-0
23-1348-2-0
23-1348-3-0
23-1348-4-0
23-1352-0-0
Description
Front Panel
Push Button(Black)-Selectors
Push Button(Green)-On/Off
Push Button(Black)-Selectors
Push Button Frame, Single
Push Button Frame, Triple
Lever Knob
Lever Frame
Rotary Knob-Tone Control
Rotary Knob-Balance
Volume Knob
Window
Spring-Push Button Return
Sub Panel
Foot
Front Chassis
Side Chassis (L)
Side Chassis (R)
Sub Chassis-Front to Rear Support
Sub Chassis-Left to Right Support
Sub Chassis-Left to Right Support
Trans. Chassis
Switch Stand
Bracket-PCB Support
Wire Holder
Bracket-Heatsink
L Bracket-PCB Support
PCB Support
L Bracket-PCB Support
Lock Plate-Bridge Switch
Lock Plate-lmpedance Switch
Rear Panel (A, A1)
Rear Panel (B, C, C1, C/S)
Rear Panel (B1)
Top Cover
Bottom Cover
Washer (Plain 3.5-8-0.5)
Slide Switch-Impedance Selector
Flex Linkage, Copy SW
Locking Clip-Head Phone
Heatsink, Main
Heatsink, Rectifier
Ground Terminal
Bushing-AC Power Cord
Power Transformer (UL)
Power Transformer (C, C1, C/S)
Power Transformer (B, B1)
Power Transformer (A)
Power Transformer (A1)
Standby Transformer (A, A1)
—18—
