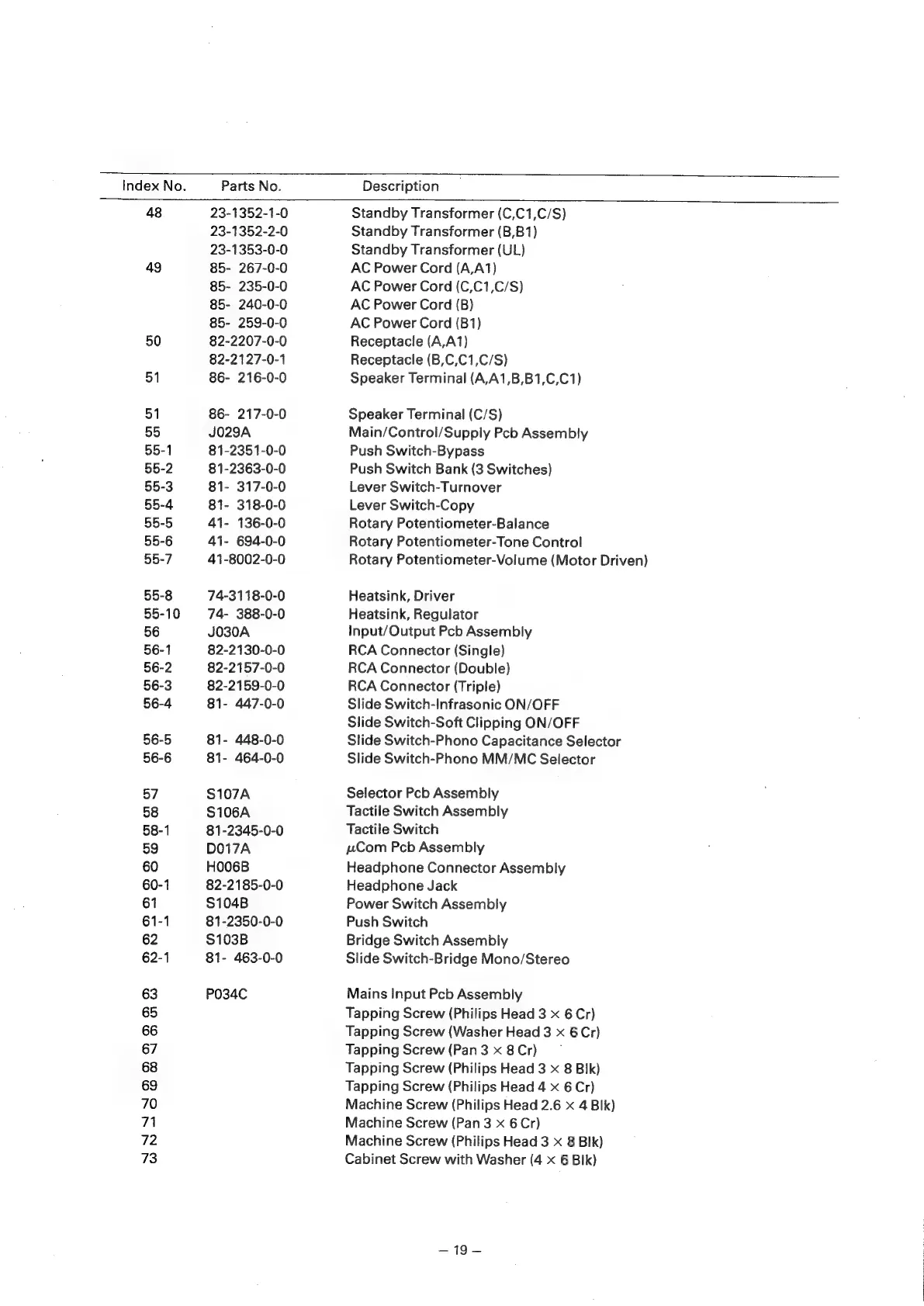

NAD MONITOR Series User Manual

Index No.
48
49
Parts No. Description
23-1352-1-0 Standby Transformer (C,C1,C/S)
23-1352-2-0 Standby Transformer (B,B1)
23-1353-0-0 Standby Transformer (UL)
85- 267-0-0 AC Power Cord (A,A1)
85- 235-0-0 AC Power Cord (C,C1,C/S)
85- 240-0-0 AC Power Cord (B)
85- 259-0-0 AC Power Cord (B1)
82-2207-0-0 Receptacle (A,A1)
82-2127-0-1 Receptacle (B,C,C1,C/S)
86- 216-0-0 Speaker Terminal (A,A1,B,B1,C,C1)
86- 217-0-0 Speaker Terminal (C/S)
JO29A Main/Control/Supply Pcb Assembly
81-2351-0-0 Push Switch-Bypass
81-2363-0-0 Push Switch Bank (3 Switches)
81- 317-0-0 Lever Switch-Turnover
81- 318-0-0 Lever Switch-Copy
41- 136-0-0 Rotary Potentiometer-Balance
41- 694-0-0 Rotary Potentiometer-Tone Control
41-8002-0-0 Rotary Potentiometer-Volume (Motor Driven)
74-3118-0-0 Heatsink, Driver
74- 388-0-0 Heatsink, Regulator
JO30A Input/Output Pcb Assembly
82-2130-0-0 RCA Connector (Single)
82-2157-0-0 RCA Connector (Double)
82-2159-0-0 RCA Connector (Triple)
81- 447-0-0 Slide Switch-Infrasonic ON/OFF
Slide Switch-Soft Clipping ON/OFF
81- 448-0-0 Slide Switch-Phono Capacitance Selector
81- 464-0-0 Slide Switch-Phono MM/MC Selector
$107A Selector Pcb Assembly
$106A Tactile Switch Assembly
81-2345-0-0 Tactile Switch
DO17A uCom Pcb Assembly
HOO6B Headphone Connector Assembly
82-2185-0-0 Headphone Jack
$104B Power Switch Assembly
81-2350-0-0 Push Switch
$103B Bridge Switch Assembly
81- 463-0-0 Slide Switch-Bridge Mono/Stereo
P034C Mains Input Pcb Assembly
Tapping Screw (Philips Head 3 x 6 Cr)
Tapping Screw (Washer Head 3 x 6 Cr)
Tapping Screw (Pan3x8Cr) —
Tapping Screw (Philips Head 3 x 8 Bik)
Tapping Screw (Philips Head 4 x 6 Cr)
Machine Screw (Philips Head 2.6 x 4 Blk)
Machine Screw (Pan 3 x 6 Cr)
Machine Screw (Philips Head 3 x 8 Blk)
Cabinet Screw with Washer (4 x 6 BIk)
