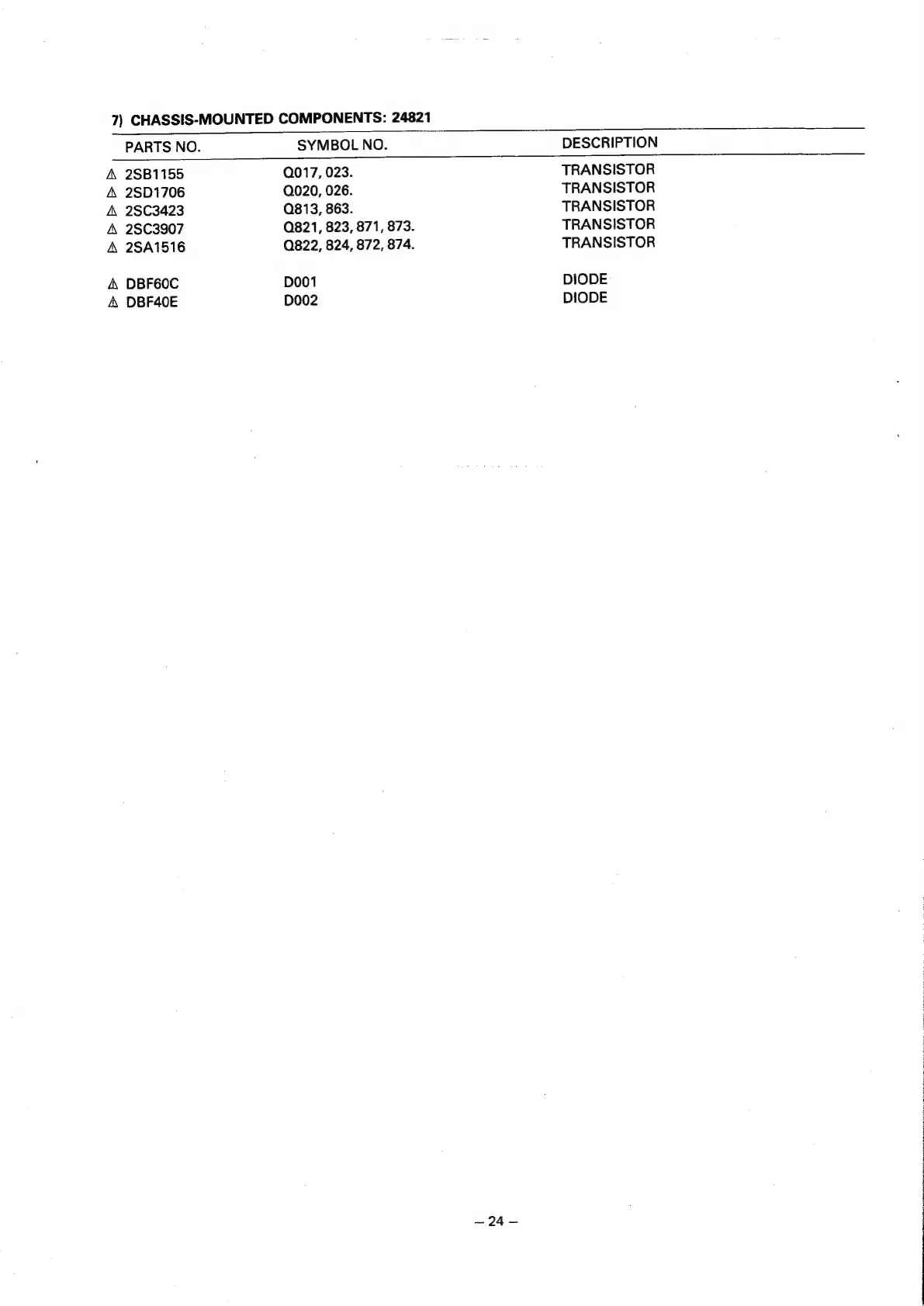

7)
CHASSIS-MOUNTED
COMPONENTS:
24821
PARTS
NO.
SYMBOL
NO.
DESCRIPTION
A
2SB1155
Q017,
023.
TRANSISTOR
A
28D1706
Q020,
026.
TRANSISTOR
A
28C3423
Q813,
863.
TRANSISTOR
4
28C3907
Q821,
823,
871,
873.
TRANSISTOR
A
2SA1516
Q822,
824,
872,
874.
TRANSISTOR
A,
DBF60C
D001
DIODE
A
DBF40E
DO02
DIODE
