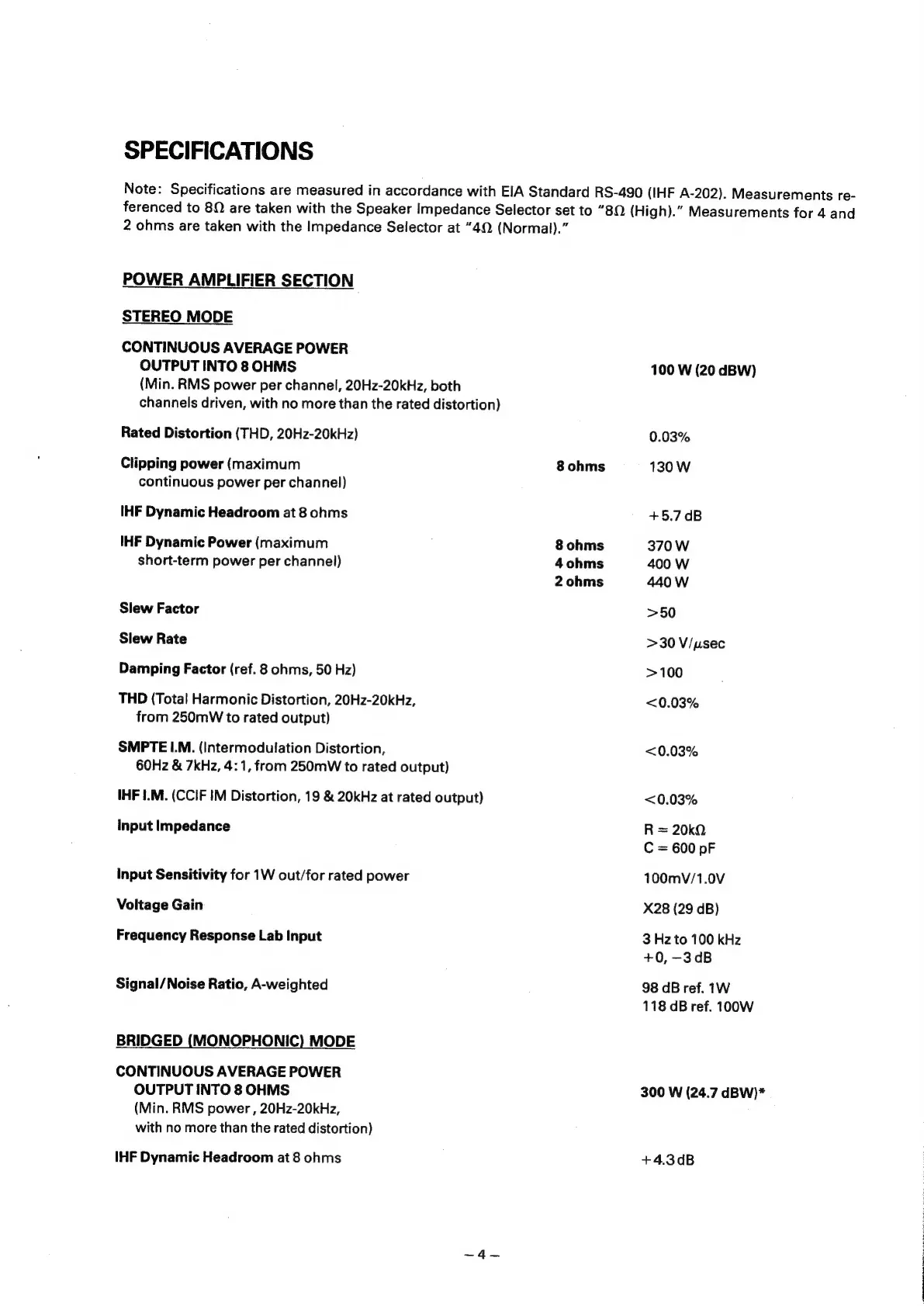

NAD MONITOR Series User Manual

SPECIFICATIONS
Note:
Specifications
are
measured
in
accordance
with
EIA
Standard
RS-490
(IHF
A-202).
Measurements
re-
ferenced
to
80
are
taken
with
the
Speaker
Impedance
Selector
set
to
“80
(High).”
Measurements
for
4
and
2
ohms
are
taken
with
the
Impedance
Selector
at
“40
(Normal).”
POWER AMPLIFIER SECTION
STEREO MODE
CONTINUOUS AVERAGE POWER
OUTPUT INTO 8 OHMS
(Min. RMS power per channel, 20Hz-20kHz, both
channels driven, with no more than the rated distortion)
Rated Distortion (THD, 20Hz-20kHz)
Clipping power (maximum
continuous power per channel)
IHF Dynamic Headroom at 8 ohms
IHF Dynamic Power (maximum
short-term power per channel)
Slew Factor
Siew Rate
Damping Factor (ref. 8 ohms, 50 Hz)
THD (Total Harmonic Distortion, 20Hz-20kHz,
from 250mW to rated output)
SMPTE I.M. (Intermodulation Distortion,
60Hz & 7kHz, 4:1, from 250mW to rated output)
IHF I.M. (CCIF IM Distortion, 19 & 20kHz at rated output)
Input Impedance
Input Sensitivity for 1W out/for rated power
Voltage Gain
Frequency Response Lab Input
Signal/Noise Ratio, A-weighted
BRIDGED (MONOPHONIC) MODE
CONTINUOUS AVERAGE POWER
OUTPUT INTO 8 OHMS
(Min. RMS power , 20Hz-20kHz,
with no more than the rated distortion)
IHF Dynamic Headroom at 8 ohms
8 ohms
8 ohms
4 ohms
2 ohms
100 W (20 dBW)
0.03%
130 W
+5.7 dB
370 W
400 W
440 W
>50
>30 V/usec
>100
<0.03%
<0.03%
<0.03%
R = 20k.
C = 600 pF
100mV/1.0V
X28 (29 dB)
3 Hz to 100 kHz
+0, -3dB
98 dB ref. 1W
118 dB ref. 100W
300 W (24.7 dBW)*
+4.3dB
