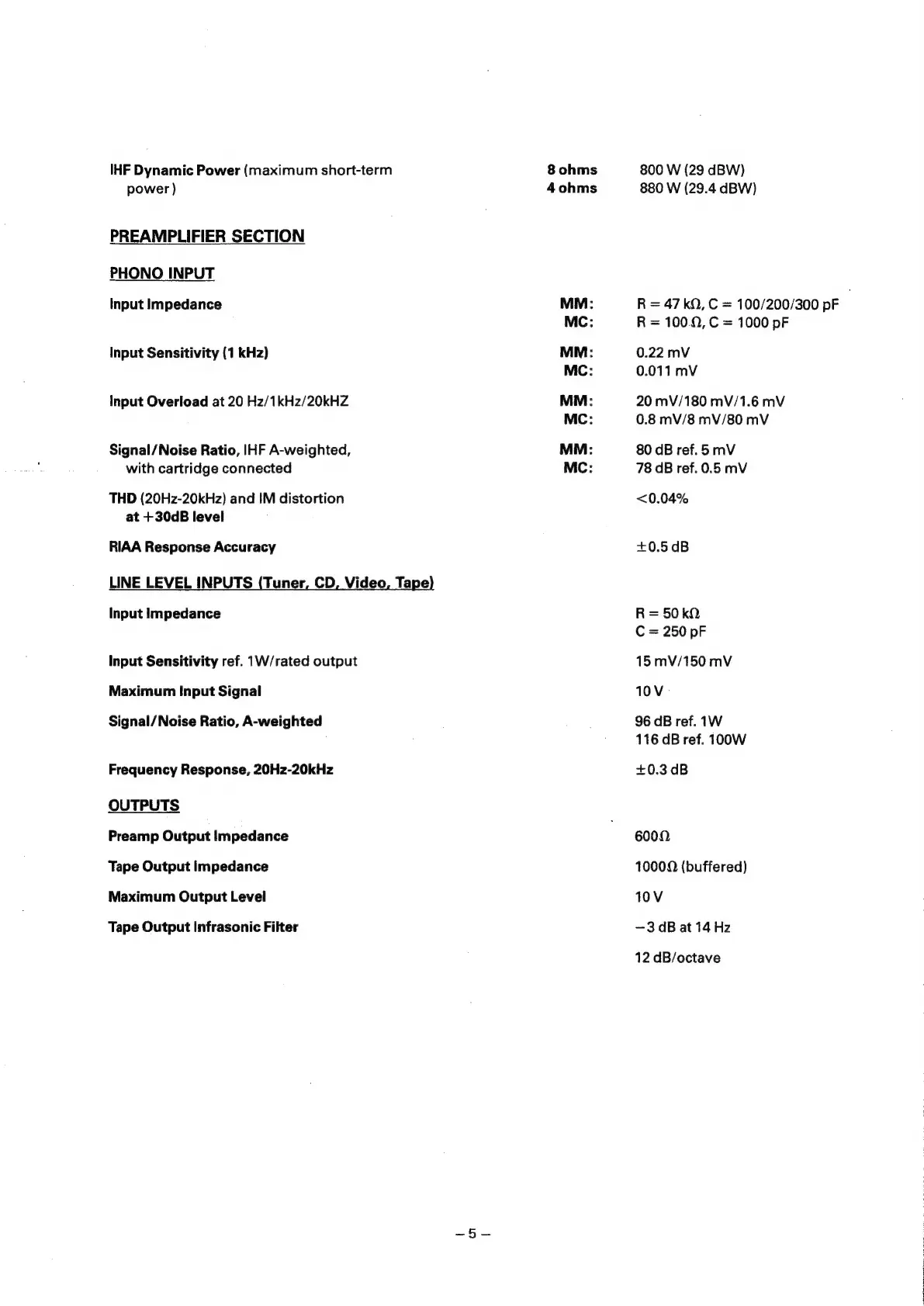

NAD MONITOR Series User Manual

IHF Dynamic Power (maximum short-term 8 ohms
power ) 4 ohms
PREAMPLIFIER SECTION
PHONO INPUT
Input Impedance MM:
MC:
Input Sensitivity (1 kHz) MM:
Mc:
Input Overload at 20 Hz/1kHz/20kHZ MM:
MC:
Signal/Noise Ratio, IHF A-weighted, MM:
with cartridge connected MC:
THD (20Hz-20kHz) and IM distortion
at +30dB level
RIAA Response Accuracy
LINE LEVEL INPUTS (Tuner, CD, Video, Tape)
Input Impedance
Input Sensitivity ref. 1W/rated output
Maximum Input Signal
Signal/Noise Ratio, A-weighted
Frequency Response, 20Hz-20kHz
OUTPUTS
Preamp Output Impedance
Tape Output Impedance
Maximum Output Level
Tape Output Infrasonic Filter
800 W (29 dBW)
880 W (29.4 dBW)
R = 47 kQ, C = 100/200/300 pF
R = 100.9, C = 1000 pF
0.22 mV
0.011 mV
20 mV/180 mV/1.6 mV
0.8 mV/8 mV/80 mV
80 dB ref. 5 mV
78 dB ref. 0.5 mV
<0.04%
+0.5 dB
R = 50k0
C = 250 pF
15 mV/150 mV
10V
96 GB ref. 1W
116 dB ref. 1OOW
+0.3 dB
60020
10002 (buffered)
10V
~—3 dB at 14 Hz
12 dB/octave
