NAD MONITOR Series User Manual

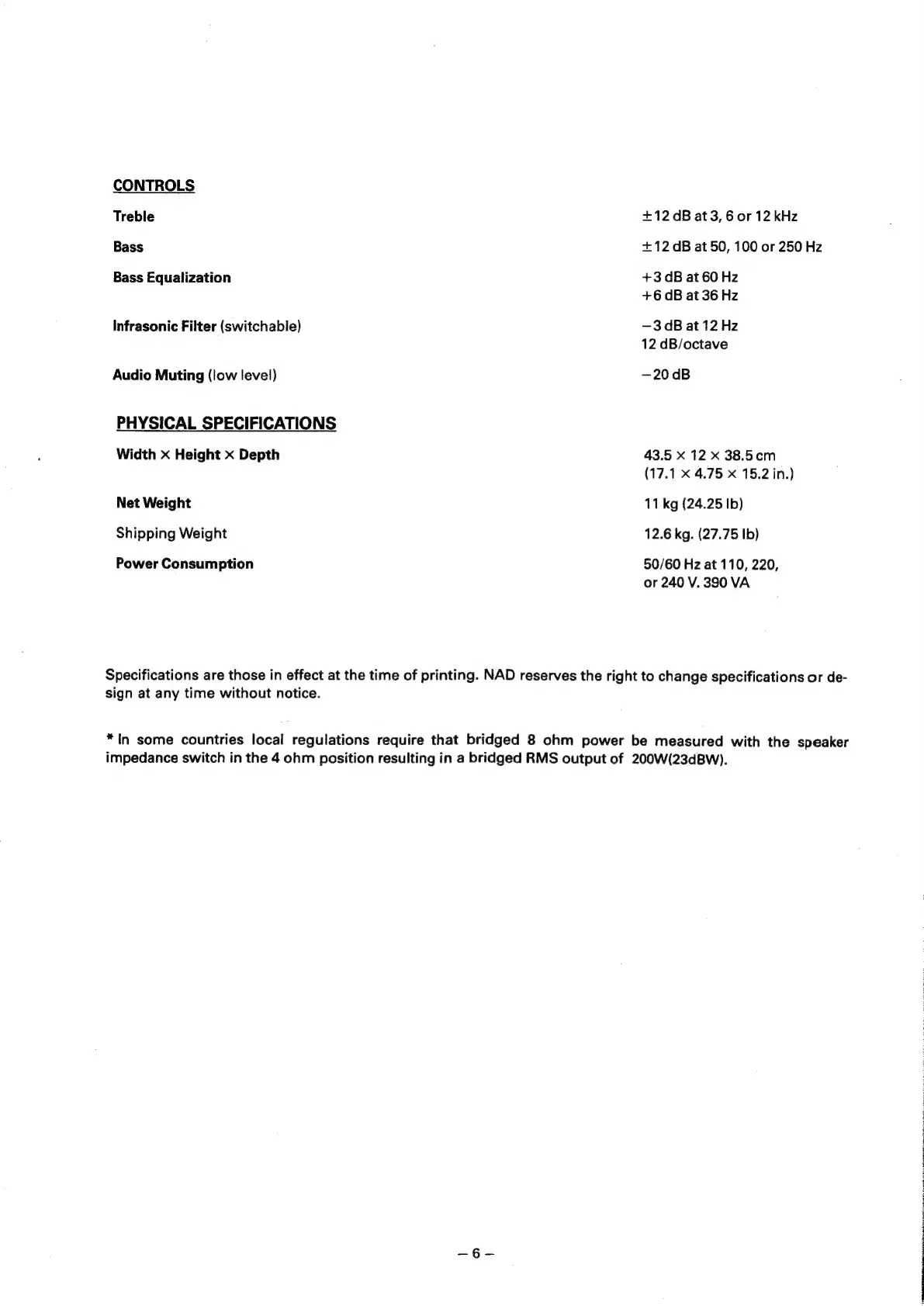

CONTROLS
Treble
Bass
Bass Equalization
Infrasonic Filter (switchable)
Audio Muting (low level)
PHYSICAL SPECIFICATIONS
Width x Height x Depth
Net Weight
Shipping Weight
Power Consumption
+12 dB at 3,6 or 12 kHz
+12 dB at 50, 100 or 250 Hz
+3 dB at 60 Hz
+6 dB at 36 Hz
—3 dB at 12 Hz
12 dB/octave
—20 dB
43.5 x 12 x 38.5cm
(17.1 X 4.75 X 15.2 in.)
11 kg (24.25 Ib)
12.6 kg. (27.75 Ib)
50/60 Hz at 110, 220,
or 240 V. 390 VA
Specifications are those in effect at the time of printing. NAD reserves the right to change specifications or de-
sign at any time without notice.
*In some countries local regulations require that bridged 8 ohm power be measured with the speaker
impedance switch in the 4 ohm position resulting in a bridged RMS output of 200W(23dBW).
