MOUNTING INSTRUCTION FOR THE C356BEE
The MT1 is compatible with C356BEE. Using the supplied exible at cable
(FFC), DC power connector and screws, the MT1 can be installed in a C356BEE
by undertaking the following procedure.

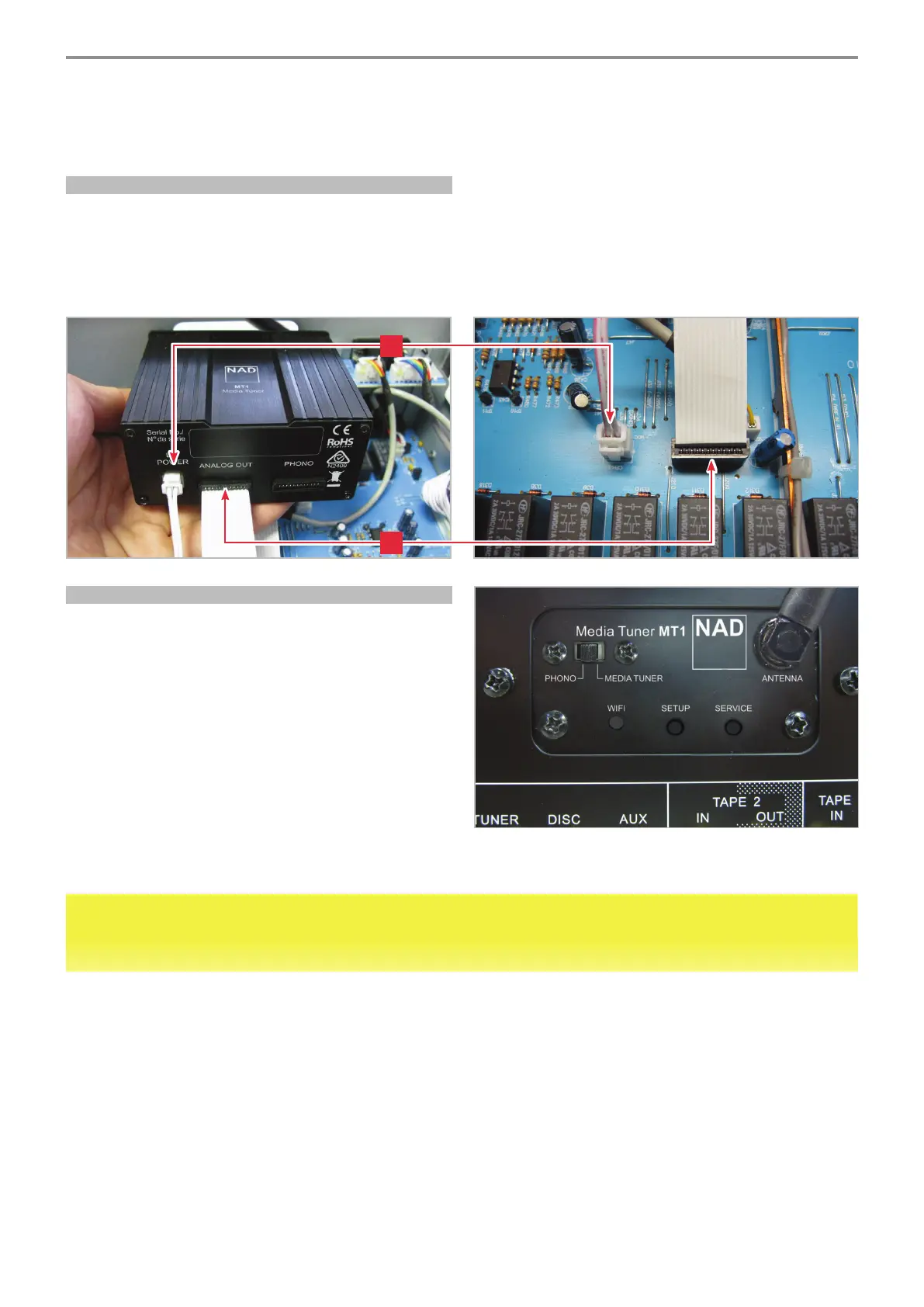

STEP 1
Pre-install the requisite cables to their respective connector points.
Connect the following
1 DC POWER connector from MT1 to corresponding CB48 on C356BEE’s main
board.
2 FFC from MT1’s ANALOG OUT to CB36 on C356BEE’s main board.
Ensure good harnessing by exing and safely contorting the FFC and DC POWER
connectors.
STEP 2
Remove the dummy cover at the back of the C356BEE and install in its place the
MT1. Use the supplied screws to x into place the MT1.
NOTE
Download the latest MT1 owner’s manual from the Manuals/Downloads tab at
http://nadelectronics.com/products/hi-mdc-modules/MT-1-Media-Tuner-Module
