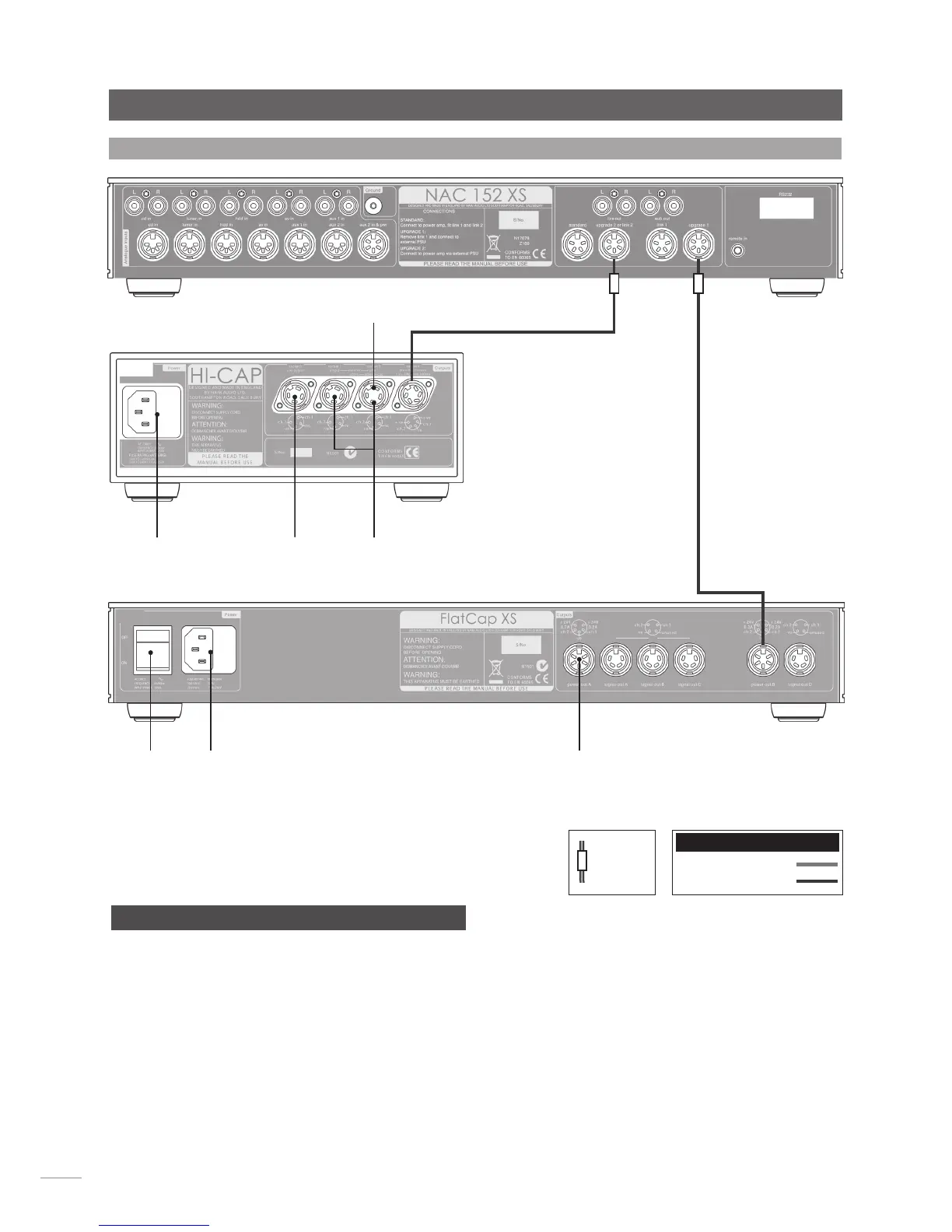

17.4 NAC 152 XS Connected to Hi-Cap and FlatCap XS Power Supplies (stage 2 upgrade)
mains input
and fuse
power
switch
for CD5 XS, Headline or
phono stage. Additional
interconnects required.
NAC 152 XS Preamplifier
18 NAC 152 XS Specification
Input Sensitivities: 130mV, 47kΩ
Overload Margins: 35dB
(all inputs all audio frequencies)
Main Output Level: 0.775V, <50Ω
Line Output Level: 130mV, 600Ω
Auxiliary Power Outputs: For Naim phono stage.
Dimensions (H x W x D): 70 x 432 x 301mm
Weight: 3.9kg
mains input
and fuse
to stereo power ampliers
to mono or dual
mono power
ampliers
additional
signal output
cable
direction
marker
4 to 4 pin DIN
Interconnect Cables
240° 5 to 5 pin DIN
