3.1NAC332를NAP350파워앰프에연결하기
NAP350에동봉된두개의XLR케이블로NAC332의XLR출력단자를각NAP
350의입력단자에연결하십시오.케이블을올바른채널에연결하십시오.프리앰프의
왼쪽출력단자는왼쪽스피커를구동하는파워앰프에연결하고오른쪽도마찬가지로
연결합니다.Naim로고가위쪽을향하도록XLR플러그를올바르게삽입해야합니다.
NAP350에동봉된시스템자동화케이블로NAC332리모콘출력단자와NAP350의
리모콘입력단자를연결하십시오.
3.2소스컴포넌트연결
필요에따라소스컴포넌트를NAC332입력단자에연결합니다.전면패널버튼을
할당하여모든입력단자를선택할수있습니다(섹션4.2참조).
공장기본할당은다음과같습니다.
튜너 입력3 RCA
스트림 입력7 5핀DIN
AV 입력4 RCA
포노 입력6 8핀DIN
AUX 입력1 XLR
CD 입력8 5핀DIN
3.3전원켜기
소스와NAC332를파워앰프에연결했으면NAC332의전원을켜고음악재생을
시작하기전에수행해야할간단한단계가몇개더있습니다.

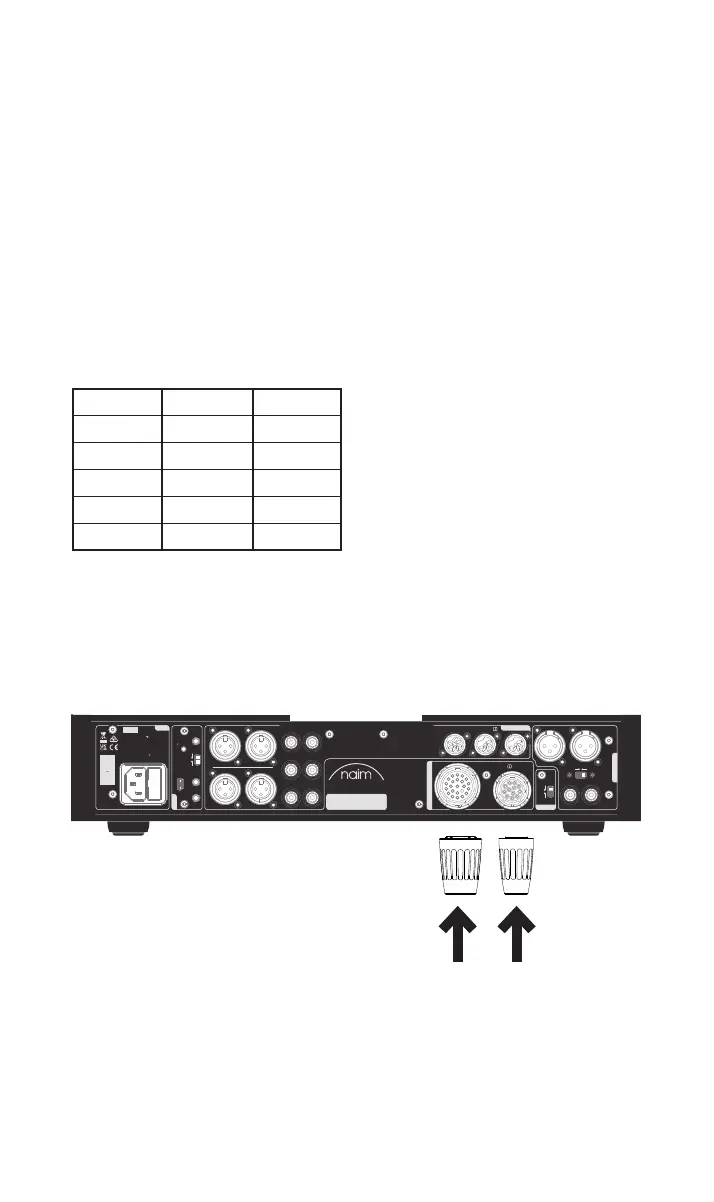

동봉된두개의링크플러그를NAC332전원공급장치업그레이드소켓에연결하십시오.
