4.设置
您的NAIT 50必须连接到（例如NDX2或唱机）音源，但在此之前，请确保两个组
件都处于最终位置并与主电源断开连接。

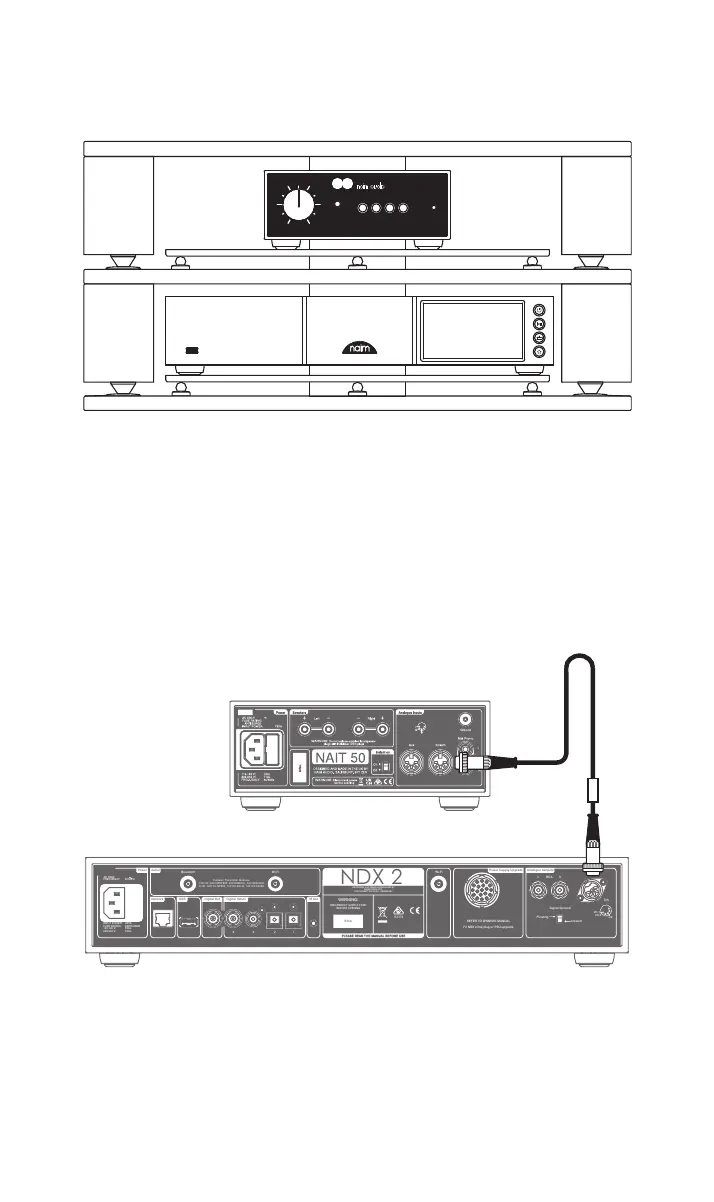

为了获得最佳性能，请使用专用的高保真支架（最好是 Naim Fraim），NAIT 50
位于音源上方，如图所示。
更多信息，请参见第5.1节
连接前确保所有设备均已关闭。
将NDX2附带的DIN互连缆线连接到NAIT 50的流媒体输入。
