NAIM NAIT 50 - Page 97

95
volume
headphone
phono stream aux mains
power
4.設定

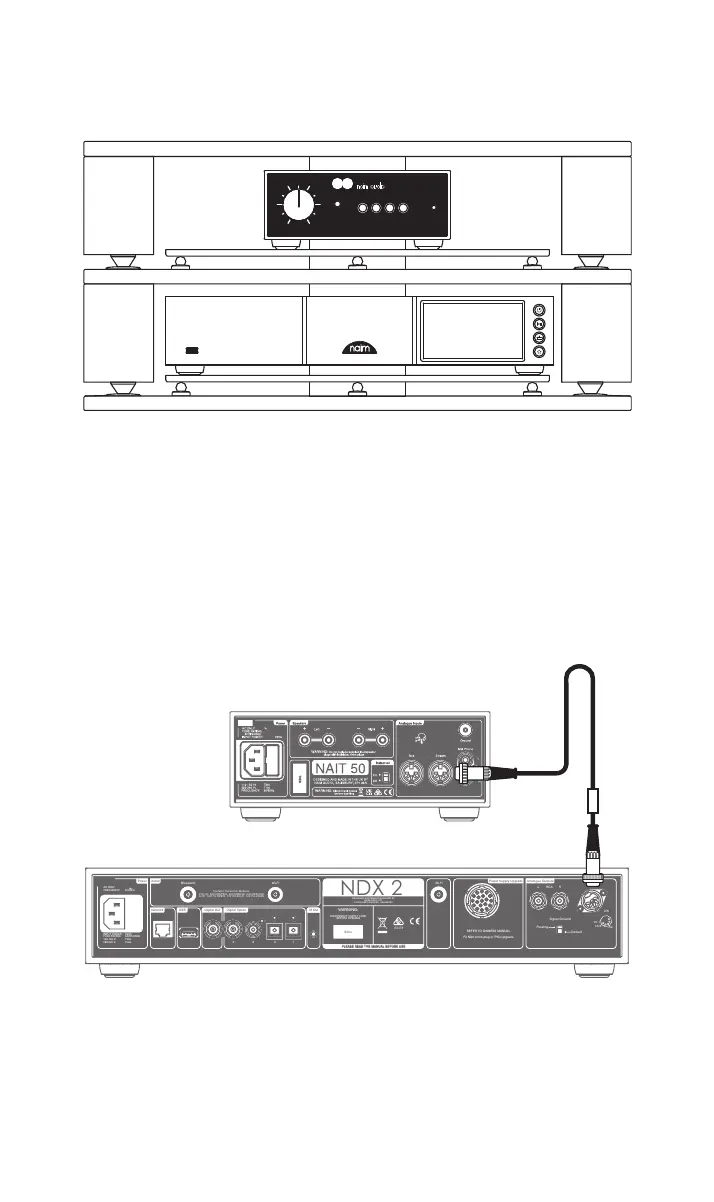

您的 NAIT 50 必須與音源連接（例如 NDX2 或您的轉盤），但是在您進行連接
前，請確保組件均位於其最終位置並斷開主電源連線。
如需獲得最佳效能，請使用專用高保真支架 – 理想為 Naim Fraim – NAIT 50位
於音源上方（如圖所示）。
如需瞭解詳細資訊，請參閱第 5.1 節。
確保所有設備在連接前均為關閉狀態。
將 NDX2 隨附的 DIN 連接纜線與 NAIT 50 的串流輸入端連接。
