FPΣ
Functions and Restrictions of the Unit
1-4
Data can be shared among up to 16 FPΣ units using
the PLC link function.
Data can be shared among the various PLCs using the PLC link function.
When using the 1-channel RS485 type communication cassette
FPΣ
No.1
FPΣ
No.2
FPΣ
No.3
FPΣ
No.16
RS485

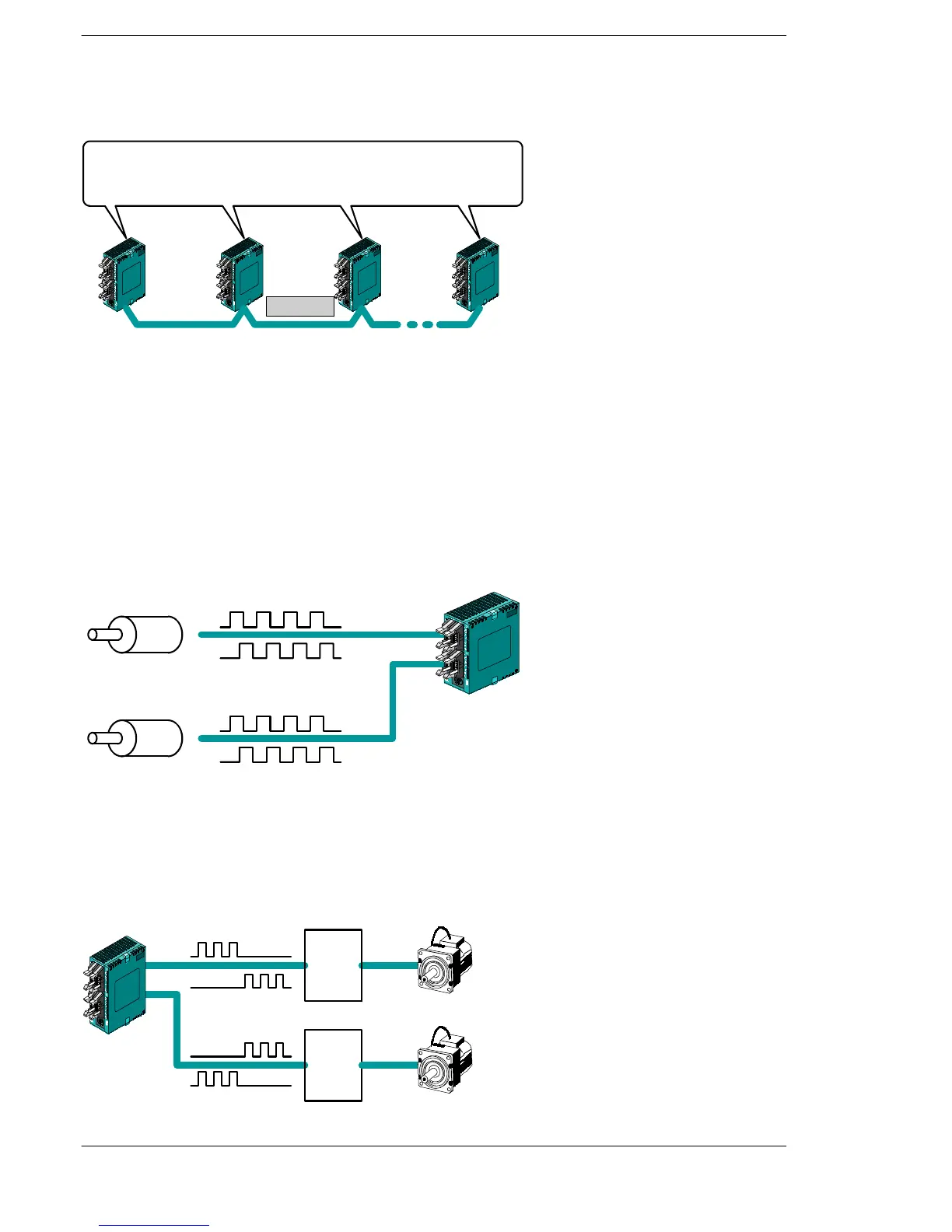

Figure 3: Features-communication (PLC link)
Positioning control supported through high-speed counter and pulse output
A high-speed counter and pulse output functions are provided as standard features.
The pulse output function supports frequencies of up to 100 kHz, enabling positioning
control using a stepping motor or servo motor.
Measurement using high-speed counter supported
Encoder
Single phase: Max. 50 kHz, Two-phase: Max. 20 kHz
Encoder
FPΣ
Increment input mode, decrement input mode, 2-phase input mode, individual input mode, and
direction discrimination mode are supported.
Pulse input
Pulse input
Figure 4: Features-High-speed counter
FPΣ
Positioning control based on pulse output supported
Pulse output
1-channel: Max. 100 kHz, 2-channel: Max. 60 kHz
Mortor
driver
CW/CCW and Pulse/sign outputs are supported.
Pulse output
Mortor
driver
Mortor
Mortor
Figure 5: Features-Pulse output
