FPΣ
5.2 Wiring of Power Supply
5-9
5.2 Wiring of Power Supply
This section explains power supply wiring of FPΣ.
5.2.1 Wiring of Power Supply
Use the power supply cable provided as an accessory
to supply power to the unit.
Power supply
cable
Power
supply cable
(AFP0581)
Green:
Functionearth
Blue: 0 V
Brown:
24 V DC

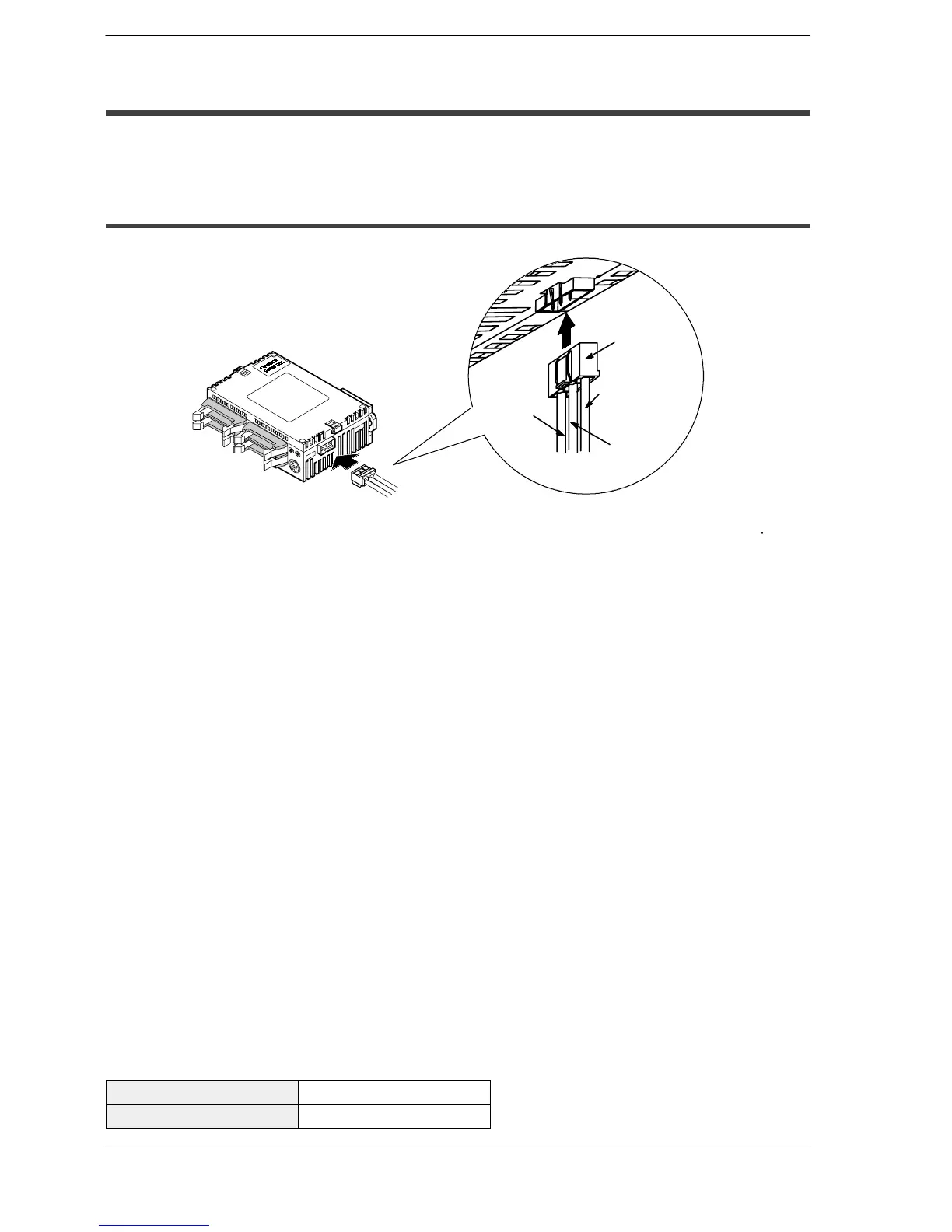

Figure 35: FPΣ Wiring of power supply
Power supply wiring for the unit
Use the power supply cable (Part No.: AFP0581) that comes with the unit to connect
the power supply.
-Brown: 24 V DC
-Blue: 0 V
-Green: Function earth
Power supply wire
To minimize adverse effects from noise, twist the brown and blue wires of the power
supply cable.
Power supply type
To protect the system against erroneous voltage from the power supply line, use an
insulated power supply with an internal protective circuit.
The regulator on the unit is a non-insulated type.
If using a power supply device without an internal protective circuit, always make sure
power is supplied to the unit through a protective element such as a fuse.
Power supply voltage
Rated voltage
24 V DC
Operating voltage range
21.6 to 26.4 V DC
