32

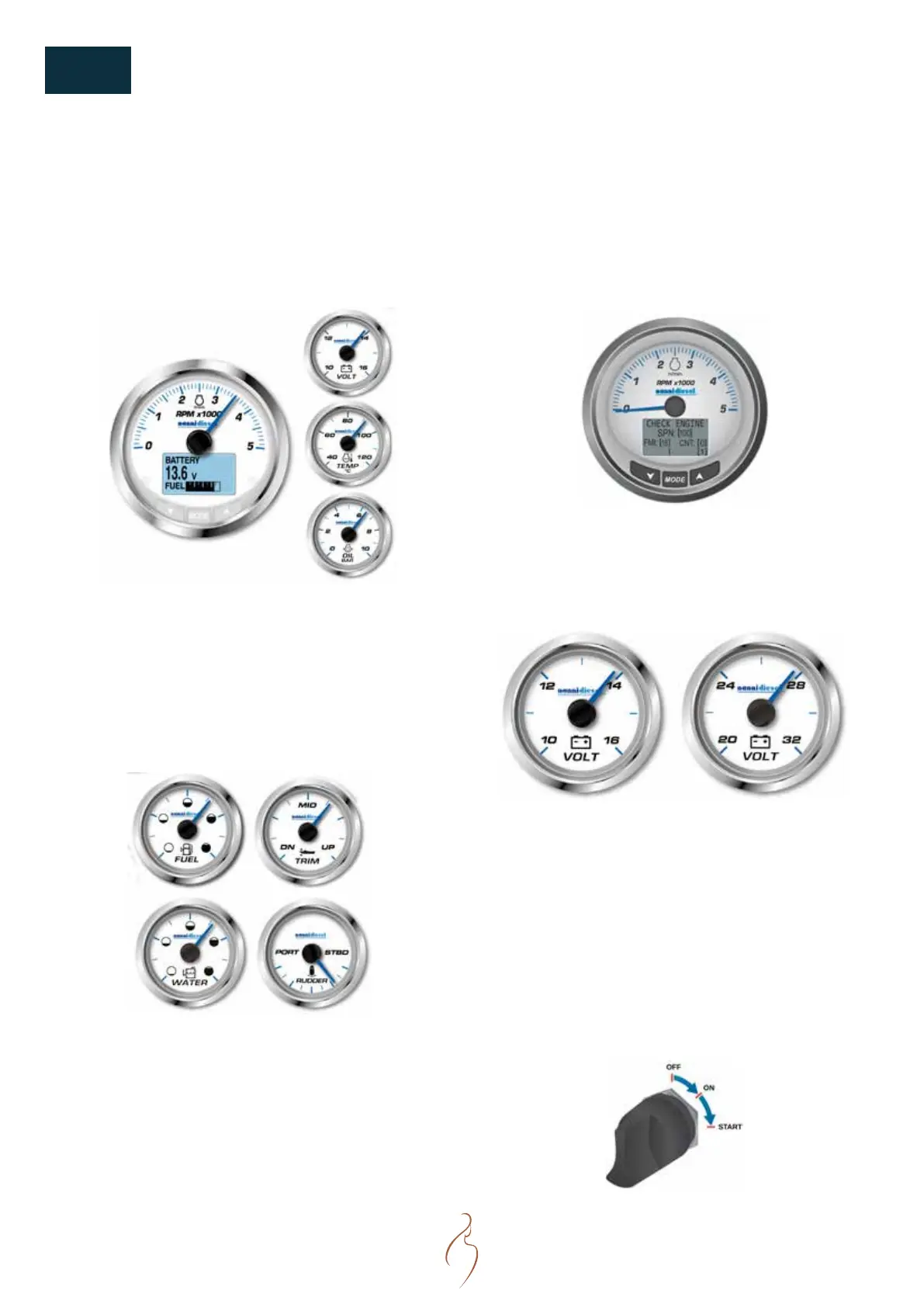

C5 PANEL
C5 STANDARD LOOSE INSTRUMENTS
Instruments sets are available either in 12 or 24 V D.C.
Panels and instruments appearance are subject to
change without notice.
C5 OPTIONAL LOOSE INSTRUMENTS
See your Nanni representative for these instruments.
Some of them might be available on order only.
The function of panel instruments is described in detail
in the decicated Instruments manual.
C5 TACHOMETER & LCD DISPLAY
The analog tachometer displays the engine speed.
Multiply the value by 1000 to get the revolutions per
minute of the engine. See the example below :
ALTERNATOR CHARGE INDICATOR
Shows the voltage at the alternator terminals (posts).
STARTER SWITCH
This device allows to start and to stop the engine.
Off : The electrical circuits are off and the key can be
removed.
On : The electrical supply is ON and the key cannot be
removed.
Start : The starter motor is energized to crank the engine;
the key returns to the ON position as soon as released.
S05 INSTRUMENTS
