SLE Commercial LTEVI & LTEAI Series Dual-Path Alarm Communicators -- Installation Instructions

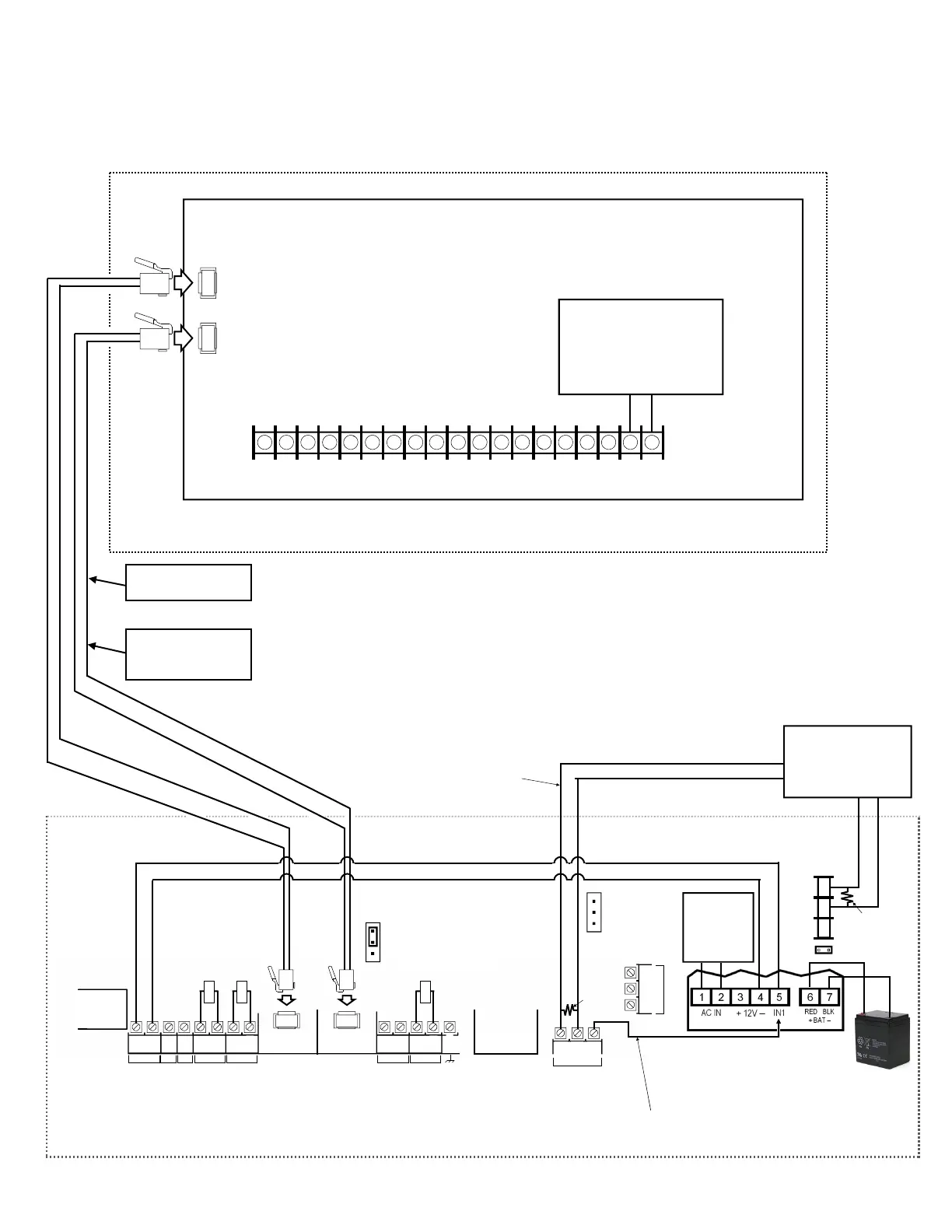

Wiring Diagram for Generic FACPs
with TELCO RJ Sockets
FACP PC BOARD
(CONTROL PANEL HOUSING)
Refer to section "SUPPLYING POWER".
TELCO RJ SOCKET (SECONDARY)
Optional: When Power Supply
SLE-ULPS-R is not used, connect
FACP Aux Power or Listed power
supply (+12V or +24V) to StarLink
terminals 1 and 2 (observing
polarity)
(+) (‒)
+12V or +24V
AUX PWR
(STARLINK RADIO HOUSING)
StarLink Radio Terminals
PC Board: All connections are power limited except AC Mains and battery terminals.
LOCAL
DOWNLOAD
TELCO
SECONDARY
TELCO
PRIMARY
ETHERNET
1
(+)
2
(‒)
POWER PGM3 IN1 IN2 IN3
3
(‒)
4
(+)
5
(+)
6
(‒)
8
(‒)
7
(+)
9
(+)
10
(‒)
12
(‒)
11
(+)
13
EGND
19
N/O
21
N/C
20
C
IN4 IN5
OUT1
22
N/C
24
N/O
23
C
OUT2
Power Supply (SLE-ULPS-R)
Either the TRF12/
T123 (16.5V /
20VA) transformer
or the chassis-
mounted 16.5VAC /
20VA transformer
Optional; if not used, connect 10K
resistor between terminals 9 and
10 (IN4)
StarLink
BATTERY
(+)
RED
(–)
BLACK
8 9 10
N/C
COM
N/O
J2
Note: Battery
leads are not
power limited
10kΩ
10kΩ
10kΩ
TELCO RJ SOCKET (PRIMARY)
EOLR
(J2 jumper off)
(This connection only used with
Power Supply SLE-ULPS-R)
The feature "Tip/Ring
Wiring Fault Report" is
required for supervision.
Requires all 8 wires in
the RJ-45 cable
JP1
Shunt JP1 on
bottom 2 pins
when using the
SLE-ULPS-R
Shunt on top 2
pins when NOT
using the SLE-
ULPS-R
(These connections
only used without
Power Supply)
EOLR
JP2
Remove shunt
on JP2 to enable
TELCO 2 trouble
*Not required if JP2 shunt is removed and FACP monitors TELCO 2.
To FACP Zone
Dedicated to Radio
Trouble
*
When using JP2 option (monitoring Telco 2) with power supply wire:
1. Move Power Supply IN1 from Radio OUT1 terminal 21 to power
supply terminal 4 (-).
2. Do not wire power supply trouble relay to FACP zone.
3. Wire power supply terminal in series with 10K EOLR to Radio
IN4 (+).
4. Program IN4 to report power supply trouble.
To Next Page
