SLE Commercial LTEVI & LTEAI Series Dual-Path Alarm Communicators -- Installation Instructions 15

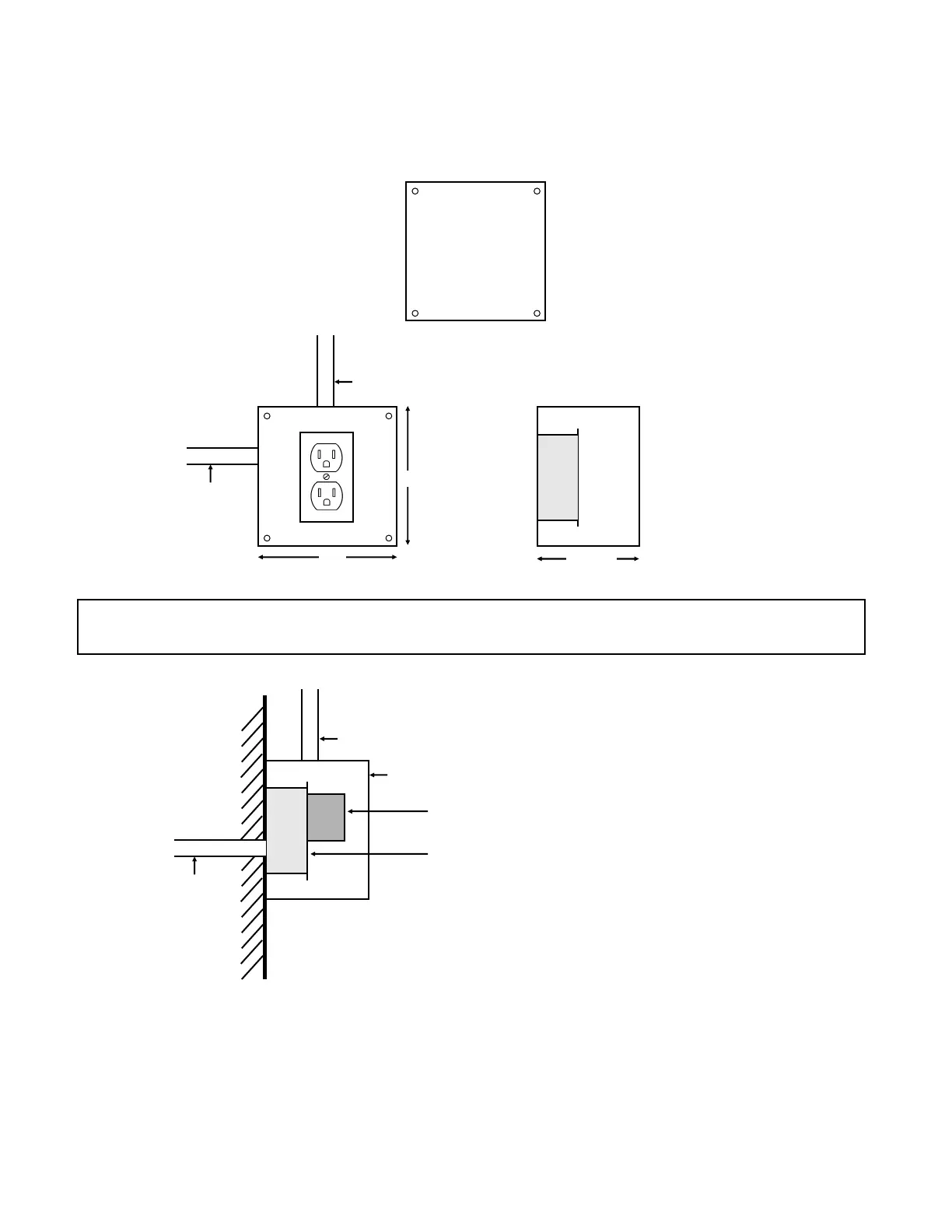

8 IN.
8 IN.
FRONT VIEW
4 to 6 IN.
SIDE VIEW
EXAMPLE OF CONDUIT LOCATION
COVER
UL LISTED ELECTRICAL PULL BOX WITH LISTED OUTLET BOX AND NON-SWITCHED RECEPTACLE
ON DEDICATED FIRE ALARM SYSTEM BRANCH CIRCUIT
CONDUIT TRANSFORMER OUTPUT WIRING
UL LISTED PULL BOX
UL LISTED NAPCO TRF12/T123 TRANSFORMER FOR
CONNECTION TO SLE CHARGER BOARD
UL LISTED SURFACE OR FLUSH MOUNT OUTLET BOX
AND NON-SWITCHED RECEPTACLE
WALL
TRANSFORMER SECONDARY WIRING CONDUIT LIMITED TO 20 FEET MAXIMUM LENGTH
Maintain a minimum of 1/4 inch separation of
circuits (transformer secondary wiring from
120V branch circuit).
EXAMPLE
OF
CONDUIT
LOCATION
Optional Alternate Methods for Commercial Fire
Branch Circuit Power Connections to the SLE Charger Board
Minimum Pull
Box
Dimensions
Min. 4 inch with flush
mount receptacle
and min. 6 inch with
surface mount
receptacle
CONDUIT
120V
