StarLink
™
SLE Series Alarm Communicators -- Installation Instructions 7
Method 2: (Dedicated zone not required). If availa-
ble, program the control panel for telephone supervi-
sion. Program the StarLink radio using the Manage-
ment Center "Advanced Features" screen (at
www.napconoc.com) to enable Line Cut on all trou-
bles. Note: Some control panels may require a differ-
ent duration than the default time of 3 minutes.
Method 3: Use PGMs programmed for the appro-
priate trouble to active sounders directly.
Supervisory Time Schedule Considerations
If a signal is sent to the central station, the supervisory
time counter will reset to that day.
For example, if the supervisory signal is supposed to oc-
cur on March 25 at 3 AM, but an alarm signal was tripped
earlier on March 15 at 3 PM, if no other signals are sent,
the next time the StarLink radio will check in is on April 15,
(not April 25).

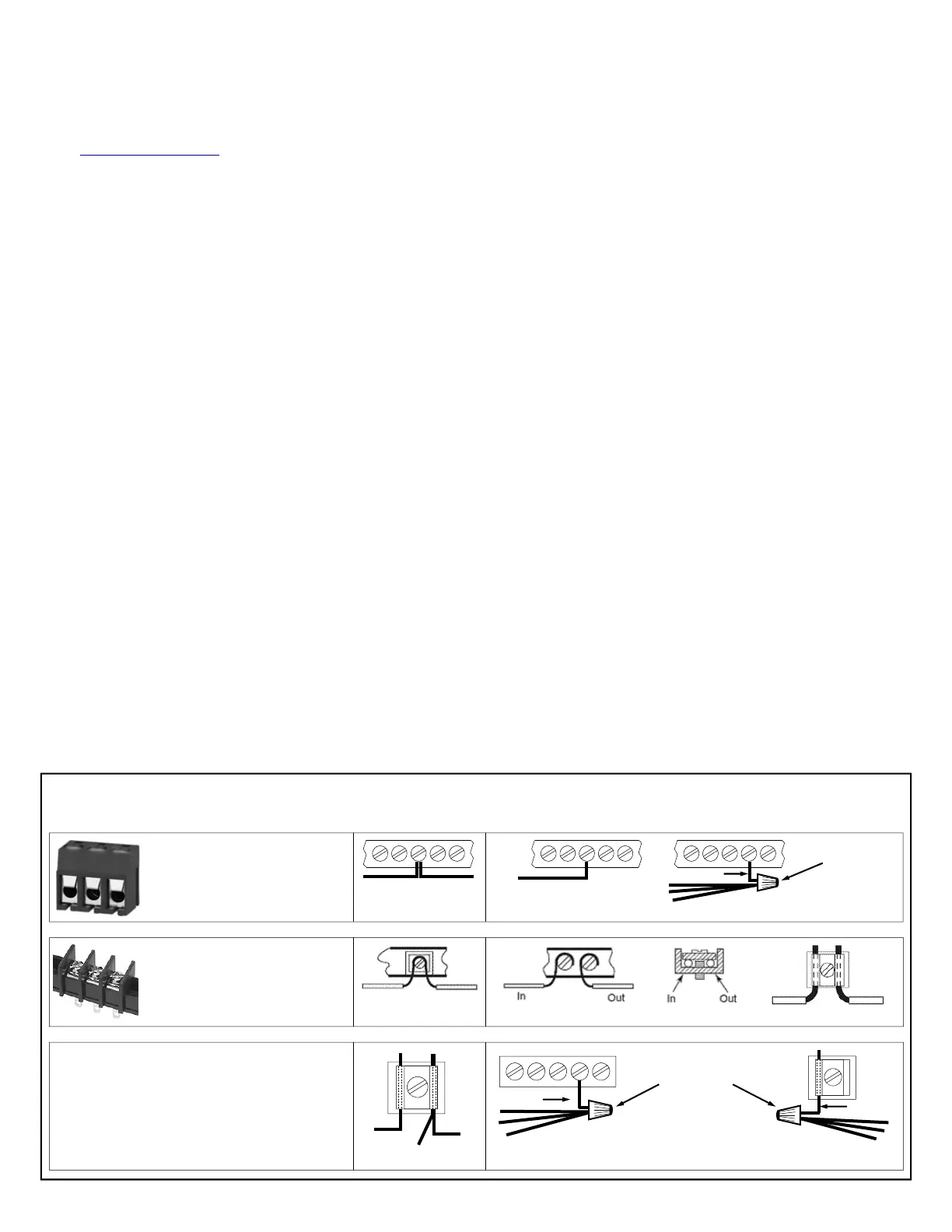

To terminate more than two conductors or
conductors of different wire sizes to a terminal,
use the "pigtail" type wiring method as shown at
right. Use insulated wire for the pigtail, and firmly
secure the conductors to the pigtail using an ap-
propriate wire nut or crimp connector for the num-
ber and gauge of conductors used.
IMPORTANT WIRING METHODS
Incorrect
Correct -- Use pigtail and wire nut / crimp connector
PIGTAIL
WIRE NUT OR
CRIMP
CONNECTOR
PIGTAIL
For single-conductor terminal
blocks (like the type shown at
left), to terminate more than one
conductor to a terminal, use the
wiring methods shown at right:
WIRE NUT OR
CRIMP
CONNECTOR
PIGTAIL
Correct -- Single incoming and/or pigtail with wire nut / crimp connectors
In
For "barrier" type terminal
blocks (like the type shown at
left), to terminate two conductors
to a terminal, use the wiring meth-
ods shown at right:
Correct -- Separate incoming and outgoing conductors
In Out
Incorrect
Incorrect
In
Out
