Napoleon BIG38 User Manual

Napoleon.com | BUILT-IN Series
Getting Started |
7
Getting Started
D
A
B
H
W
W
X
Non combustible
countertop
C
A = 6.5" (16.5 CM)
B = 6.5" (16.5 CM)
C = 5.7" (14.5 CM) MIN.
E*
E*= For use with the installation of a Napoleon BI door.

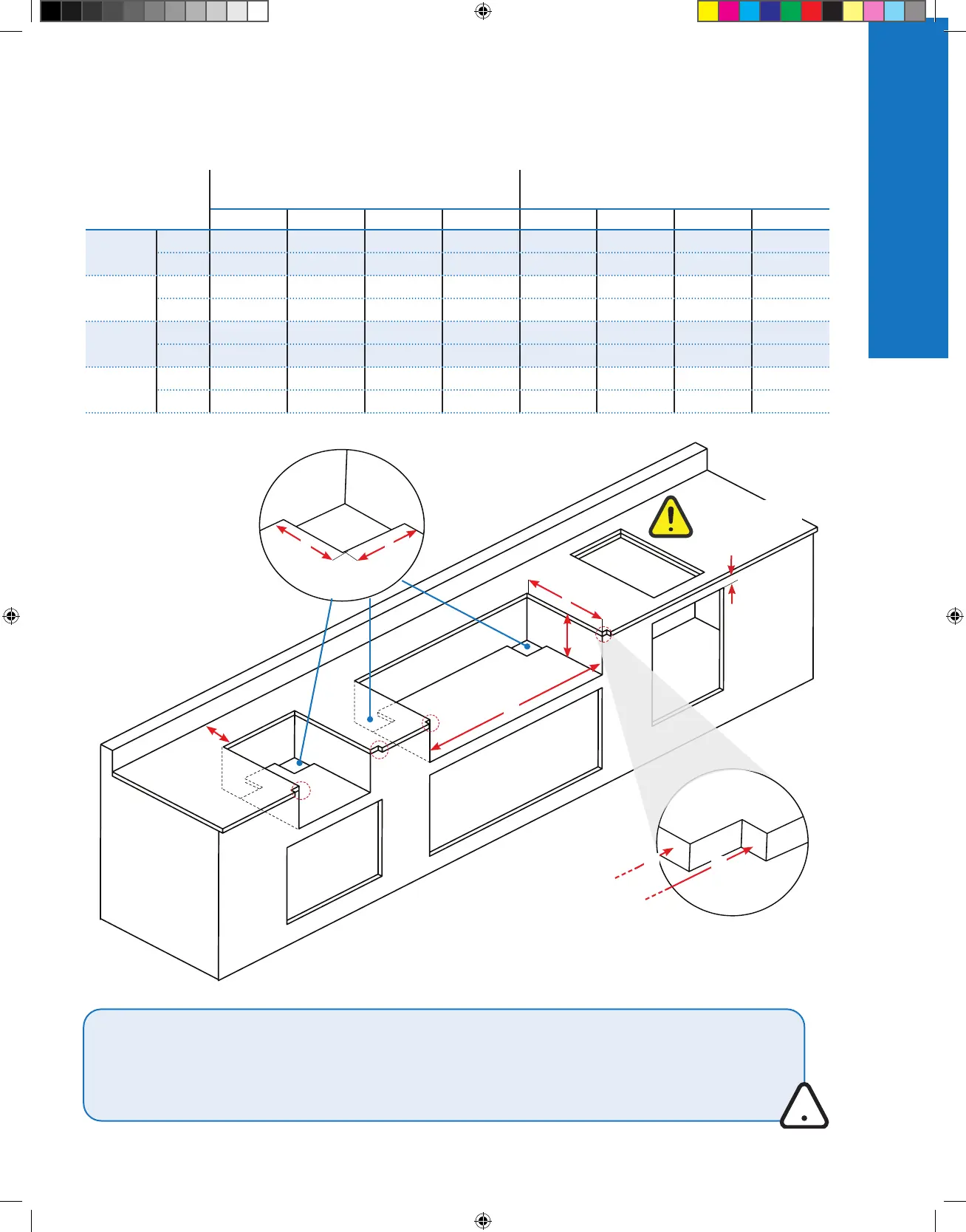

cut-out dimenSionS
WARNING! The cabinet frame and the cabinet MUST be made from a non-combustible material when the appliance
is not installed with the Zero Clearance Liner corresponding to your unit. Refer to the parts list in your Assembly
Guide for specific information.
CAUTION! If enclosure houses an LPG cylinder, this construction must comply with the built-in cylinder enclosure
instructions. Refer to 'Gas Connections'.
!
MODEL
OPENING DIMENSIONS (INCH / CM)
OPENING DIMENSIONS (INCH / CM)
INSTALLING ZERO CLEARANCE LINER
W X D H W X D H
BIG32 / BI32
Min. 30 / 76.2 33.50 / 85.1 19.4 / 49.3 10.25 / 26.0 34 / 86.4 35.38 / 89.9 21.38 / 54.3 10.38 / 26.4
Max. 32 / 81.3 - 19.75 / 50.2 - - - - -
BIG38
Min. 36 / 91.4 39.50 / 100.3 19.4 / 49.3 10.25 / 26.0 40 / 101.6 41.38 / 105.1 21.38 / 54.3 10.38 / 26.4
Max. 38 / 96.5 - 19.75 / 50.2 - - - - -
BIG44
Min. 42 / 106.7 45.50 / 115.6 19.4 / 49.3 10.25 / 26.0 46 / 116.8 47.38 / 120.3 21.38 / 54.3 10.38 / 26.4
Max. 44 / 111.8 - 19.75 / 50.2 - - - - -
BIB10
Min. 10 / 25.4 - 18.75 / 47.6 6 / 15.2 - - - -
Max. 12 / 30.5 - 20.75 / 52.7 - - - - -
E* = 4.25"
(10.8 CM) MAX.
Getting Started

Napoleon BIG38 Specifications

General

Brand	Napoleon
Model	BIG38
Category	Grill
Language	English
