Napoleon BIM485 - Page 2

BIM485 29 3/4” 21 3/8” 7 1/2”
BIM605 36 1/2” 21 3/8” 7 1/2”
BIM730 43 1/4” 21 3/8” 7 1/2”
SIDE BURNER 13 1/2” 171/2” 4”
W D H
H
34”
RECOMMENDED
W
D
6” MIN.
H
W
D
1¾”
1
¾”
OUTDOOR GFI ELECTRICAL OUTLET
RECOMMENDED - LOCATE ON LEFT SIDE OF
GRILL FOR ROTISSERIE USE.
MINIMUM 10 SQ IN OF
VENTILATION REQUIRED
ON EACH END OF CABINET
GAS INLET
OPENING
GAS INLET
OPENING

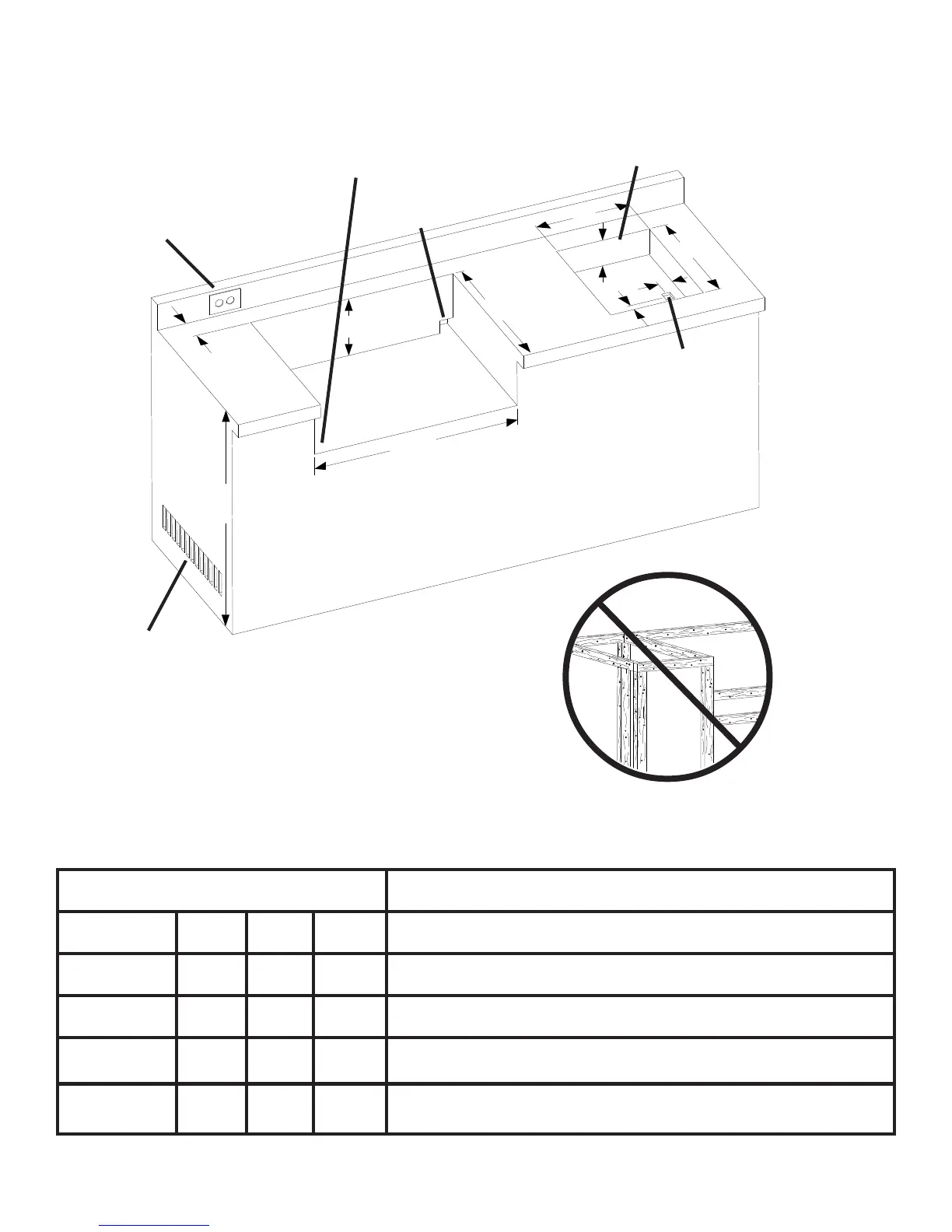

BUILT-IN UNIT OPENING DIMENSIONS
BUILT-IN
SIDEBURNER
NOTES
MODEL OPENING DIMENSIONS
NON-COMBUSTIBLE MATERIAL
CABINET FRAME AND CABINET MUST BE
MADE FROM NON-COMBUSTIBLE MATERIAL
Opening of at least 5 sq in must be provided for combustion air for side burner.
A SMALL ACCESS HOLE IS REQUIRED TO RUN WIRE FROM LED
(LIGHTS) DOWN INTO CAVITY OF CABINET. BATTERY PACK
MUST BE MOUNTED A MINIMUM OF 8” BELOW BOTTOM OF GRILL
TO PREVENT MODULE FROM OVER HEATING. ENSURE WIRES
AND MODULE DO NOT INTERFERE WITH DRIPPAN REMOVAL OR
COME IN CONTACT WITH BOTTOM OF GRILL.
