Napoleon GDS28 - Bottom Guard Rod Securing; Barrier Rods with Spacers; Barrier Assembly Alignment; Control Door Hinge Pin Removal

Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 0G8 Canada • 1(866)820-8686 • www.napoleonreplaces.com
W415-1916 / 10.15.18
5 6

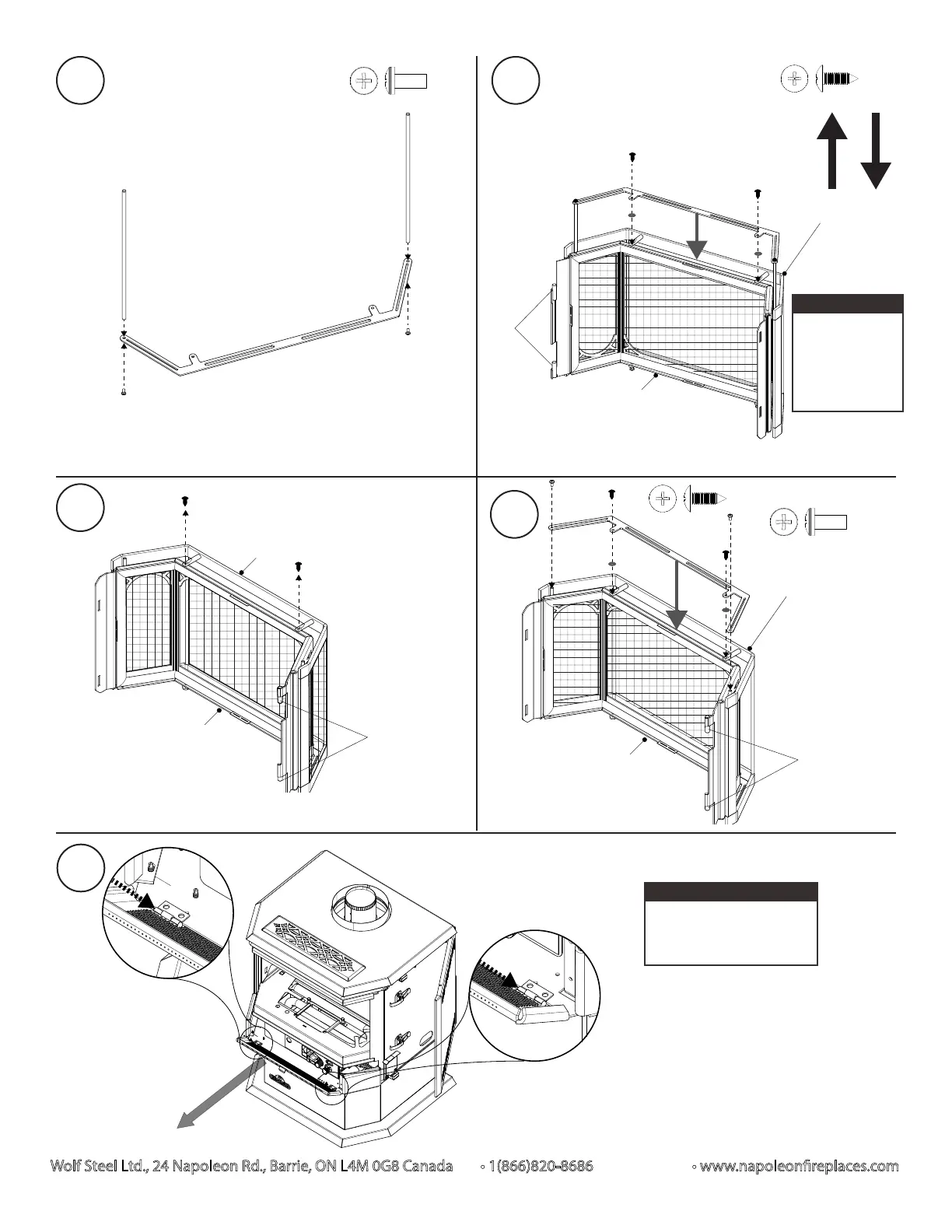

Install both rods into the far ends of the bottom guard and
secure using 2 screws (supplied).
Top of appliance
door assembly
Bottom of appliance
door assembly
Hinge
pins
Top of appliance
door assembly
Bottom of appliance
door assembly
Hinge pins
7
8
Bottom of appliance
door assembly
Hinge
pins
Top of appliance
door assembly
9
Tap both hinge pins out of the control door
assembly. Discard of control door assembly.
Set hinge pins aside.
note:
The control door hinges
are partially welded to
the appliance.
2 x
2 x
2 x
2 x
note:
Ensure to put
spacers in
between trim
and safety
barrier rod.
