Napoleon UHM - Mounting Options and Initial Steps; Mounting Options Overview; Initial Component Removal

3
Vertical
mount
Horizontal
mount
3”
(76mm)
minimum
3”
(76mm)
minimum

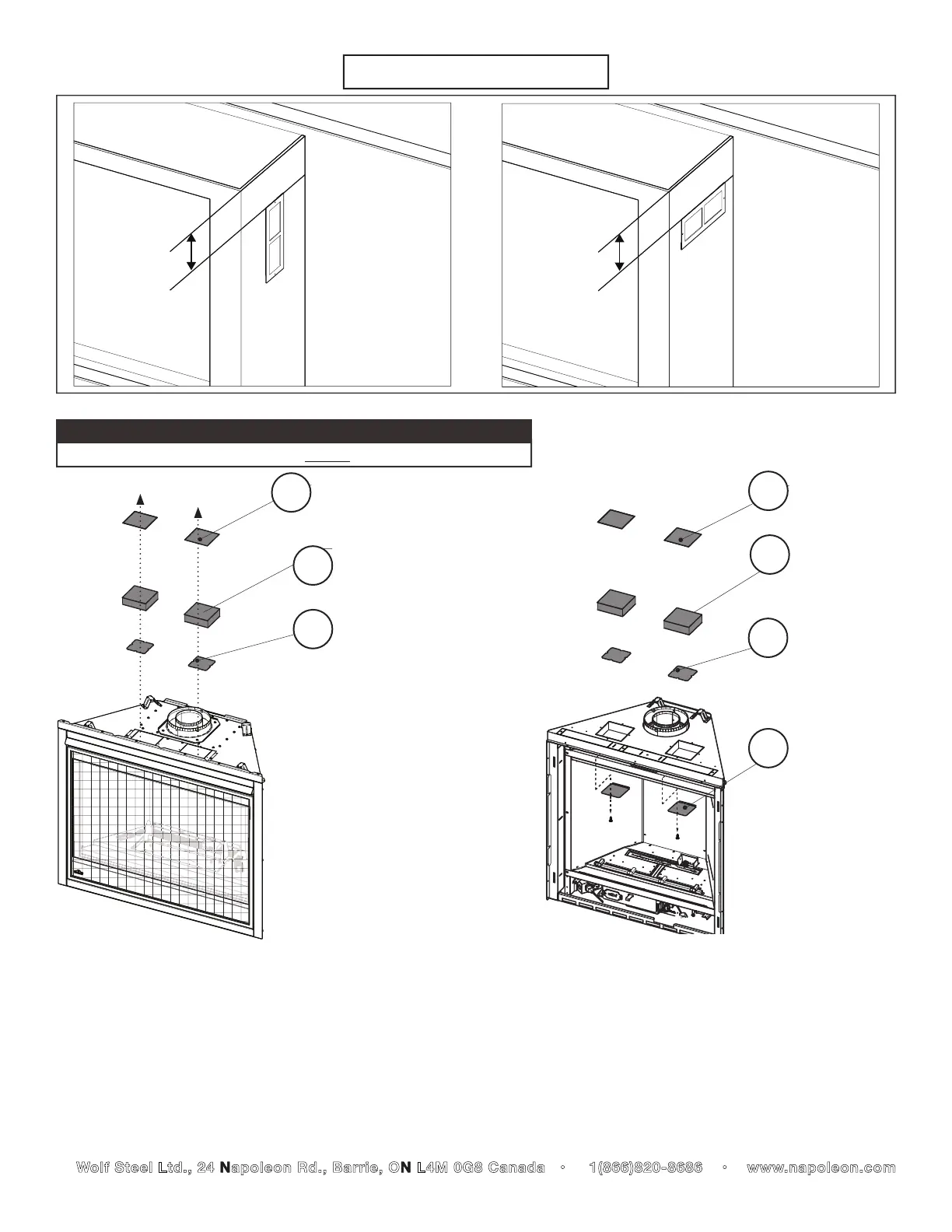

Mounting Options
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 0G8 Canada • 1(866)820-8686 • www.napoleon.com
W415-2948 / A / 03.19.21
INSULATION
(quantity, shape
and size varies by model)
COVER
(quantity, shape and
size varies by model)
KNOCKOUT
1. Remove knockouts (x2) from the top of the appliance. Discard.
2. Remove insulation (quantity, shape and size varies by model) from the top of the appliance. Discard.
3. Remove cover (quantity, shape and size varies by model) from the top of the appliance. Discard.
4. If applicable, remove screws securing the inside covers (x2) above the fi rebox.
1
2
3
The Universal Heat Management kit MUST be completely installed.
IMPORTANT
COVER (INSIDE)
INSULATION
COVER
KNOCKOUT
3
1
2
4
(AX36 illustrated)
