Repeat for second fl exible duct.
Recess application illustrated.
!

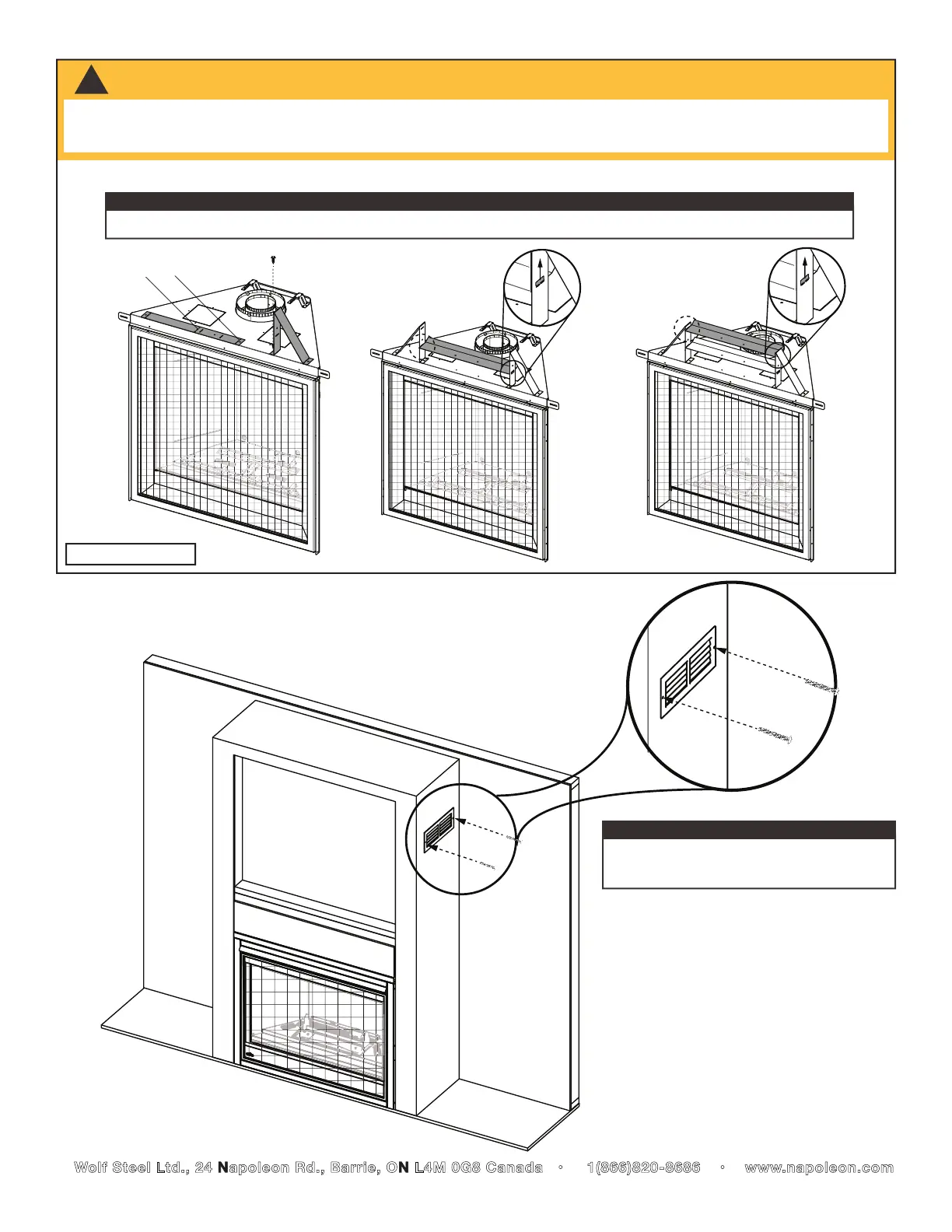

WARNING
• The complete standoff assembly MUST be installed during appliance operation. Failure to maintain clearances or
follow the installation instrucitons provided in your manual could result in serious injury, death or property damage.
Bend points
The top standoff provides the minimum clearance to the header.
note:
X 2
The 2 standoff shields must be reinstalled.
(AX36 illustrated)
Grill should be mounted with the louvres
facing downward.
note:
