NARCO AVIONICS AR850

2-14 7/03

2.4.7 Interconnect Wiring Diagrams

This section provides interconnect wiring instructions for connecting the

AR850 to Narco and King transponders.

2.4.7.1 AR850 to AT155/AT150/AT50/50A Installation

2 AMPS

11 - 32 VDC AVIONICS BUS P101-14

AIRFRAME GROUND P101-15

P101-5 - - - - ENABLE - - - - - - - - - - P101-6

P101-7 - - - - A1 - - - - - - - - - - - - P101-2

P101-12 - - - B1 - - - - - - - - - - - - P101-5

P101-14 - - - C1 - - - - - - - - - - - - P101-11

P101-6 - - - - A2 - - - - - - - - - - - - P101-3

P101-10 - - - B2 - - - - - - - - - - - - P101-9

P101-11 - - - C2 - - - - - - - - - - - - P101-13

P101-8 - - - - A4 - - - - - - - - - - - - P101-4

P101-9 - - - - B4 - - - - - - - - - - - - P101-10

P101-13 - - - C4 - - - - - - - - - - - - P101-12

NOTE:AT50/50A Transponders must comply with Narco service Bulletin AT-50A-5

dated Feb. 19, 1975.

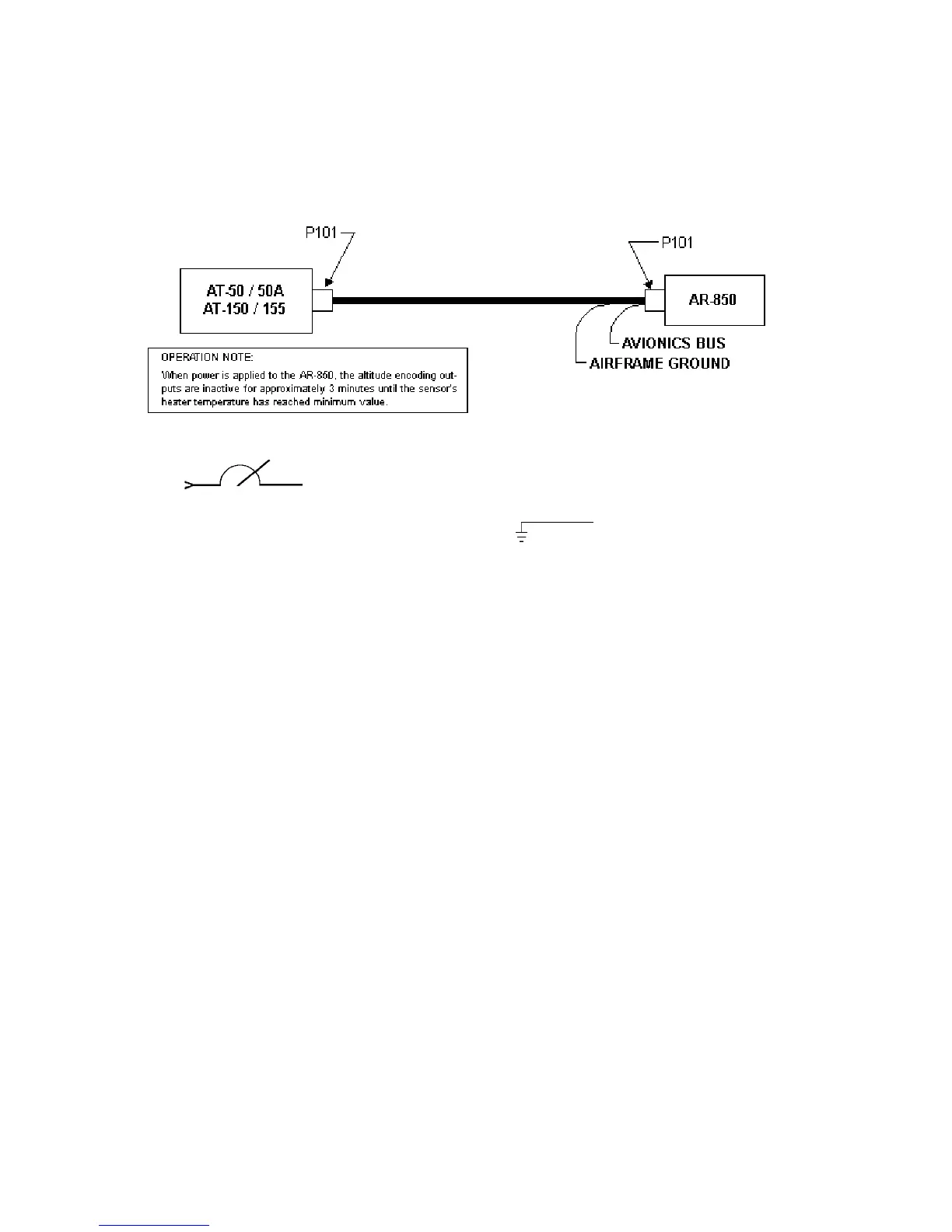

FIGURE 2-6 AR850 TO AT155, AT150 OR AT50/50A INTERCONNECTIONS
