Page 7

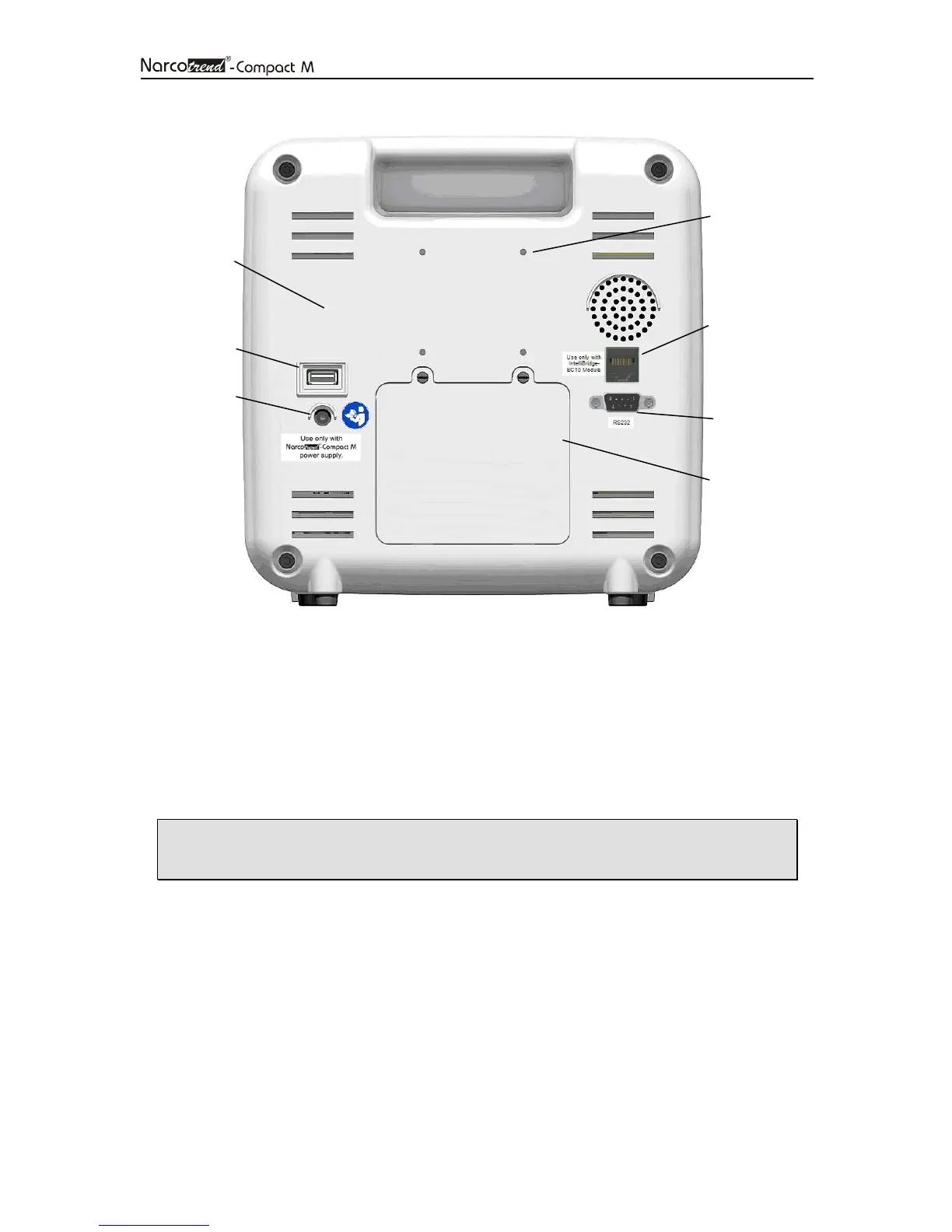

Fig. 3: Narcotrend-Compact M, rear panel
2.1 Operation
The device is switched on by pressing the On/Off switch briefly.
The software is operated completely via the integrated touchscreen, i.e. all input
operations are made by touching the screen briefly.
• The touchscreen reacts very sensitively. Please don’t use sharp or
pointed objects like pens or pencils for operation.
To switch off the device use the button Q
UIT
on the screen.
2.2 Battery operation
The Narcotrend-Compact M is equipped with an integrated battery that allows the
device to be used for at least 2 hours without being connected to a power supply
system.
The battery charging time is approx. 2 hours when the device is switched off and
approx. 8 hours when the device is switched on.
Battery box
4 holes to affix
Mounting clamp
(VESA 50)
USB Port
Connection for
Narcotrend-
Compact M –
Power Supply
RS232
connector
IntelliBridge
connector
(optional)
Space for
type plate
