NARDA 5G FR2 Antenna - Device Overview

40 5G LNB Antenna Narda
EN
4 Device overview

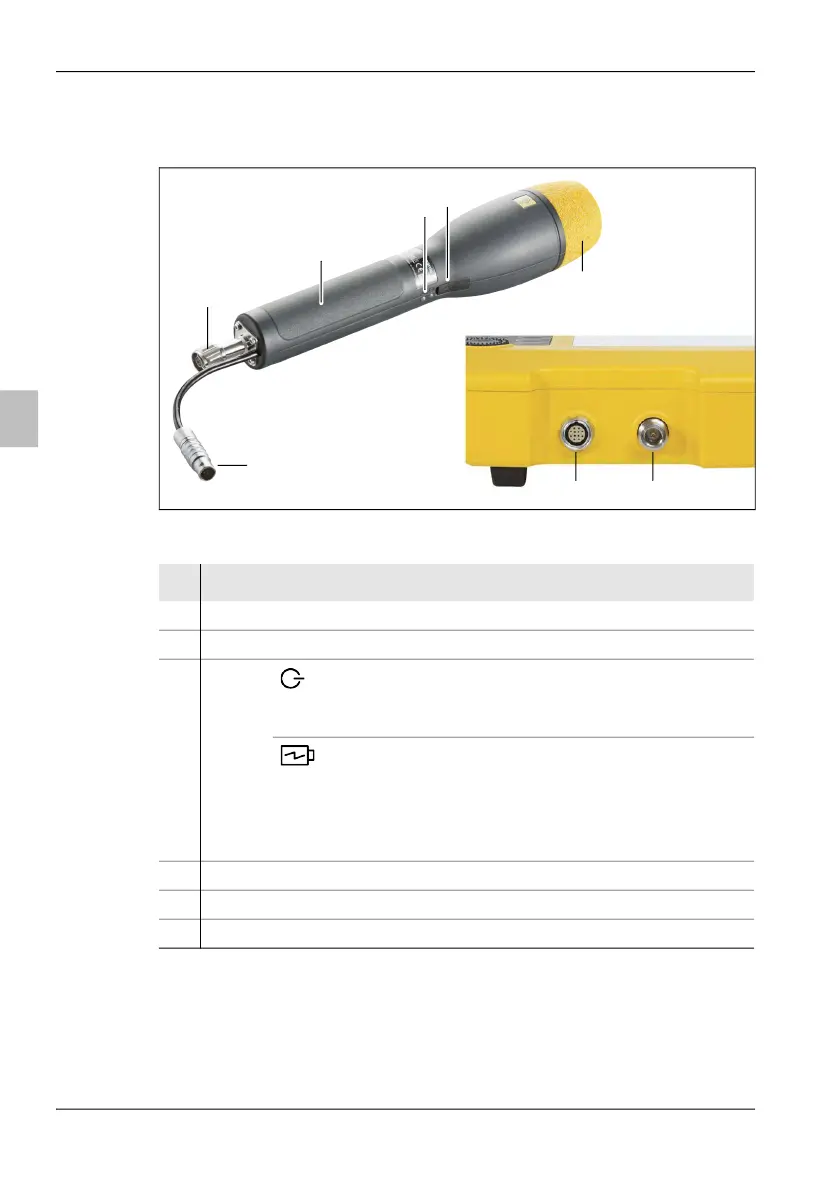

Figure 1: Overview of the LNB antenna and SRM-3006 basic unit
No. Description
1
Sensor area
2
USB-C socket
3
LEDs: Power status:
• Off: device switched off
• Green: device switched on
• Red: error mode
Battery status:
• Off: no charger connected
• Green: battery fully charged,
charger connected
• Red: charging
• Red flashing: battery error
4
Shaft
5
RF-Connector
6
Antenna control connector
1
3
5
6
2
4
5
6
