6 Operating the LNB antenna
The following measurement modes are supported by the SRM-3006 when
using an LNB Antenna:
• Spectrum
• Level Recorder
• Scope
• Safety Evaluation
6.1 Switching between the FR2 bands
Thanks to the dual band design of the LNB antenna, a significant part of the
5G NR FR2 band is covered in one antenna. Switching between the two
bands is possible in the Frequency submenu in almost all modes.
Switching the FR2 bands in the Frequency submenu
 An LNB antenna is connected.
 The SRM-3006 is in the Frequency submenu of one of the following
modes: Spectrum, Level Recorder, Scope.

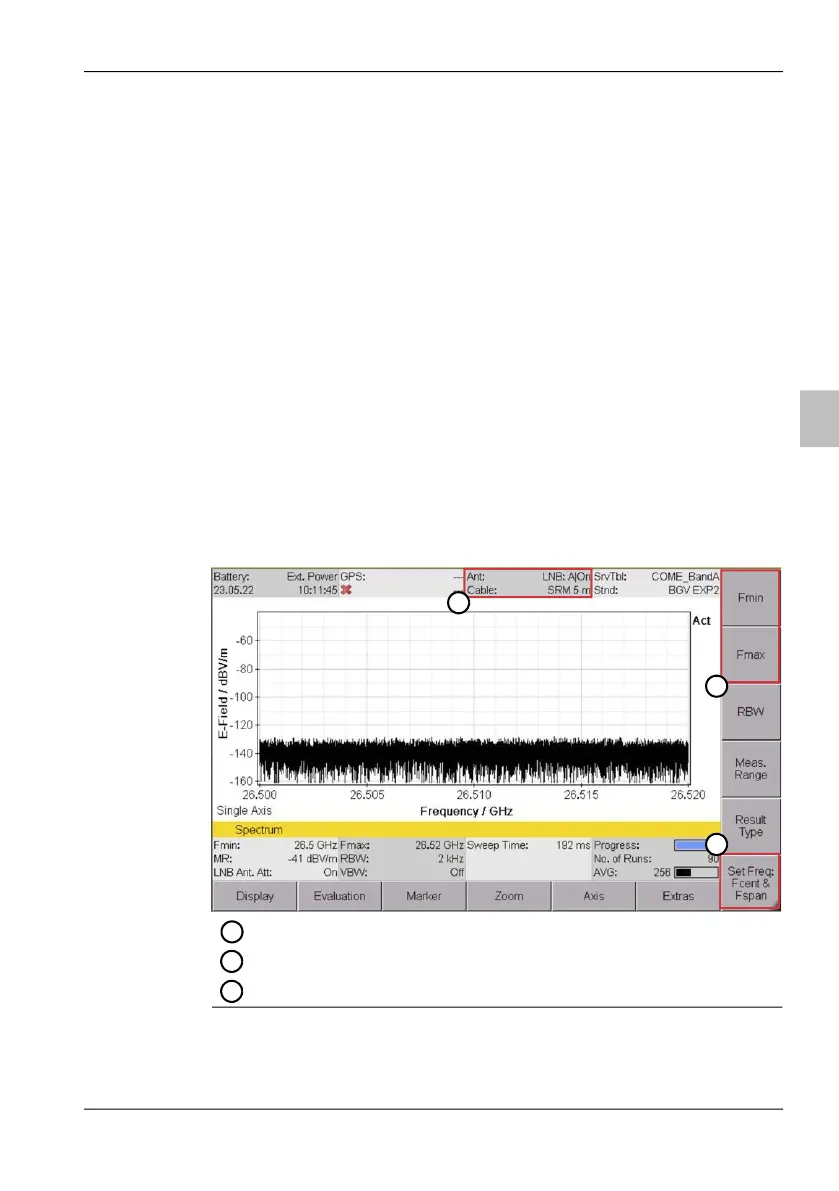

Band and attenuator status
Fmin/Fmax selected in the Frequency submenu
Softkey to toggle Fcent/Fspan - Fmin/Fmax
1
2
3
1
2
3
